830 Point Breadboard with Power Supply and 65pcs Jumper Cables – MB102

27 people have recently viewed this product!

830 Point Breadboard with Power Supply and 65pcs Jumper Cables – MB102

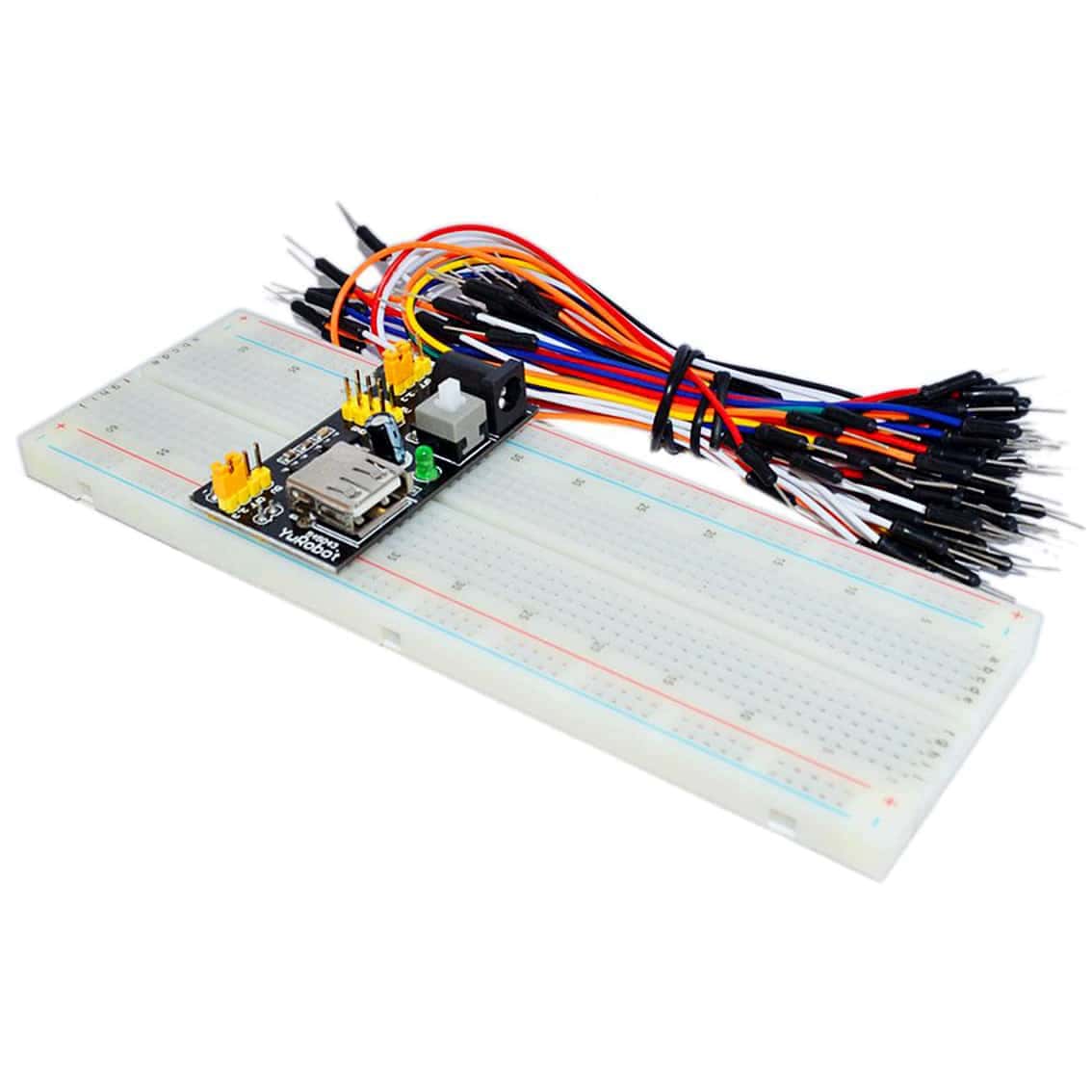

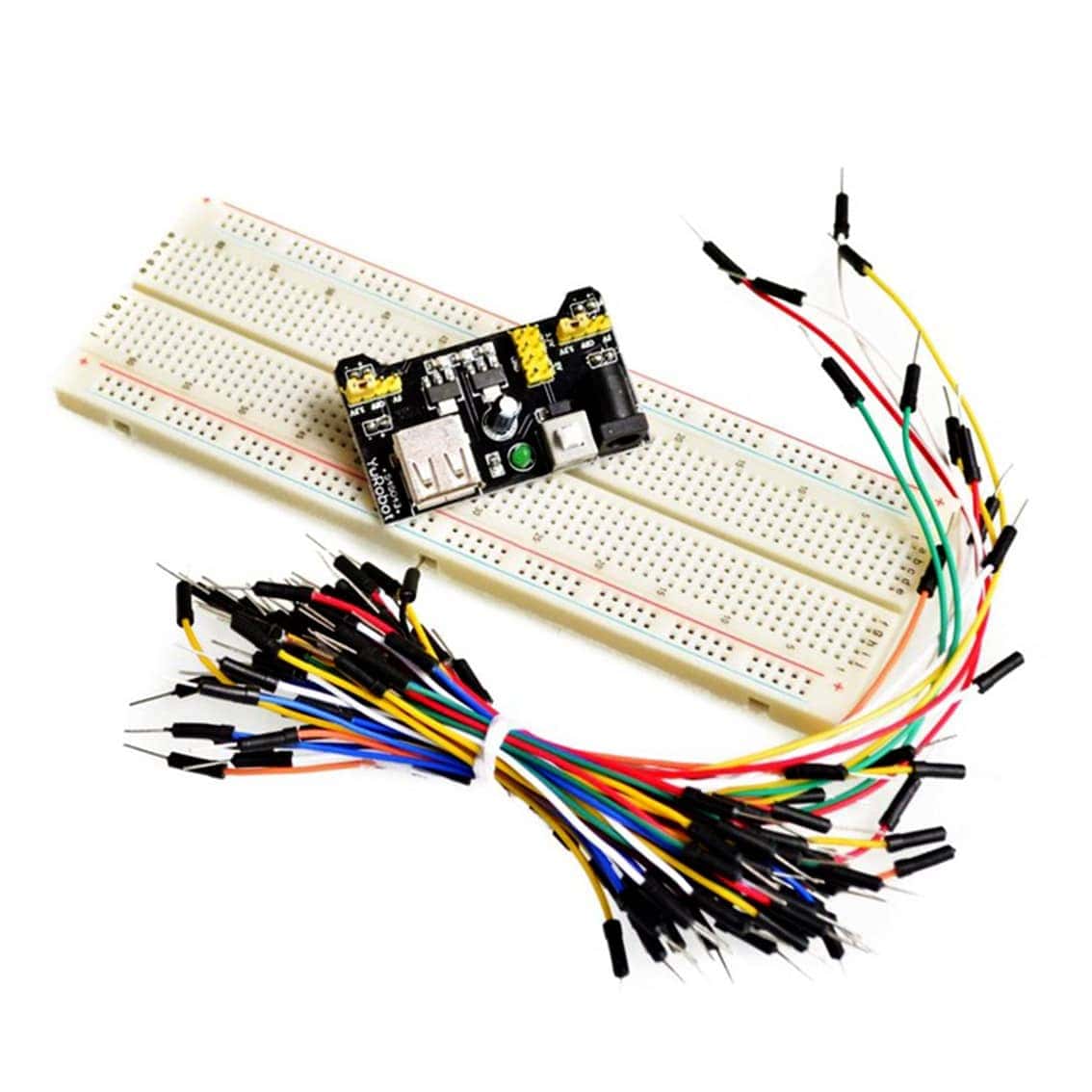

This breadboard kit consists of an MB102 830-point breadboard, power supply and 65 male to male jumper cables.

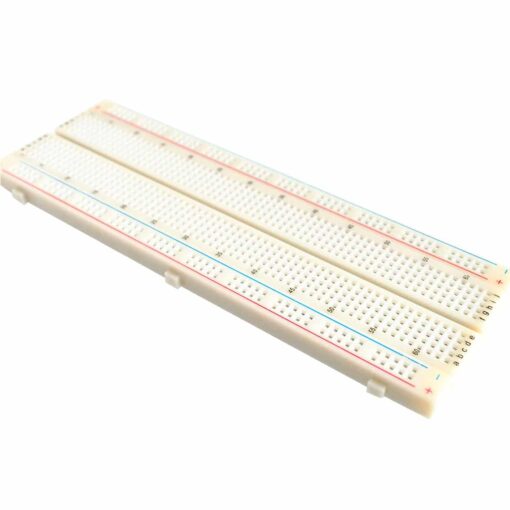

The breadboard consists of a 630 tie-point terminal strip made up of 126 5-point terminals, 200 tie-point distribution strips consisting of 4 horizontal bus lines of 50 test points each.

$19.95

Order Within –

Availability: 36 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001833

Description:

This breadboard kit consists of an MB102 830-point breadboard, power supply and 65 male to male jumper cables.
The breadboard consists of a 630 tie-point terminal strip made up of 126 5-point terminals, 200 tie-point distribution strips consisting of 4 horizontal bus lines of 50 test points each.

The power supply has an input voltage of 6.5VDC – 12VDC via DC plug or 5VDC via the USB input, with an output voltage of 3.3VDC / 5VDC and output current of <700mA.

The jumper cables come in 4 lengths, 120mm, 150mm, 200mm and 240mm with male to male connections.
A great bundle to started or add to a growing workbench.



Specifications:

  • Input DC plug voltage: 6.5VDC – 12VDC
  • Input USB voltage: 5VDC
  • Output voltage: 3.3VDC – 5VDC
  • Output current: < 700mA
  • Terminal points: 630
  • Distribution points: 200
  • Cable length: 120mm, 150mm and 240mm
  • Breadboard dimensions: 165mm x 55mm
  • Power supply dimensions: 53mm x 35mm



Contents:

  • 1 x MB102 830 Point Breadboard
  • 1 x Breadboard Power Supply
  • 49 x 120mm Male to Male Jumper Cables
  • 8 x 150mm Male to Male Jumper Cables
  • 4 x 200mm Male to Male Jumper Cables
  • 4 x 240mm Male to Male Jumper Cables
Weight 0.13 kg
Dimensions 195 × 30 × 150 mm
