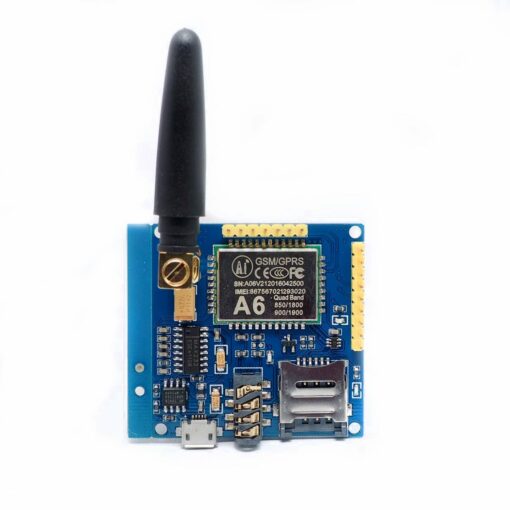

A6 GPRS/GSM Module Board with Antenna and Sim Card Slot Quad Band 850 900 1800 1900 MHz

  • 02
  • 03
  • 04
  • 02
  • 03
  • 04

Description

This breakout board is a serial GSM / GPRS development board based on A6 Quad-band GPRS/GSM module chip. read more

A6 GPRS/GSM Module Board with Antenna and Sim Card Slot Quad Band 850 900 1800 1900 MHz

This breakout board is a serial GSM / GPRS development board based on A6 Quad-band GPRS/GSM module chip. read more
SKU:
PHI-A6-GSM-ANT
Category:
Tag:
view all details

This product is discontinued

SKU:
PHI-A6-GSM-ANT
Category:
Tag:
view all details

Price

This product is discontinued

Quantity

- +

Total

This product is discontinued

0 reviews

Out of stock

Notify me when item is back in stock.

Description

Description:

This breakout board is a serial GSM / GPRS development board based on A6 Quad-band GPRS/GSM module chip. The A6 chip is a cutting edge product that connects to the internet via GSM/GPRS and at the same time works as a traditional GSM module. It is a low-cost but efficient and compactly packaged chip featuring lower power consumption and extended temperature. The chip is ideal for M2M applications: industrial PDA, personal tracking, wireless POS, smart metering, and many other M2M applications.

This breakout board utilizes the advantages of A6 Quad-band GPRS/GSM module chip and added an antenna and a SIM card slot making it readily available to use for your projects. It has a low current consumption as low as 3mA during sleep mode. The board supports dual-band GSP/GPRS network, available for GRPS and SMS message data remote transmission.

Specifications

Features:

  • Make and receive phone calls
  • Send and receive text messages
  • Send and receive GPRS data
  • Onboard antenna interface: SMA and IPX
  • Onboard micro sim card holder
  • Micro USB power supply input
  • Supports standard AT and TCP/IP command interface
  • Supports 2G, 3G, and 4G



Specifications:

  • Dimensions: 22.8 x 16.8 x 2.5mm
  • Working Temperature: -30°C to +80°C
  • Working Voltage: 3.3V – 4.2V
  • Power Voltage: >3.4V
  • Standby Average Current: Below 3ma
  • Working frequency: Quad-band Network, 850 / 900 / 1800 / 1900MHz
  • Sensitivity: <-105
  • SMT: 42PIN

Contents

Contents:

  • 1 x A6 GPRS/GSM Module Board with Antenna and Sim Card Slot
