Active Ceramic GPS Antenna with IPEX Interface

39 people have recently viewed this product!

Active Ceramic GPS Antenna with IPEX Interface

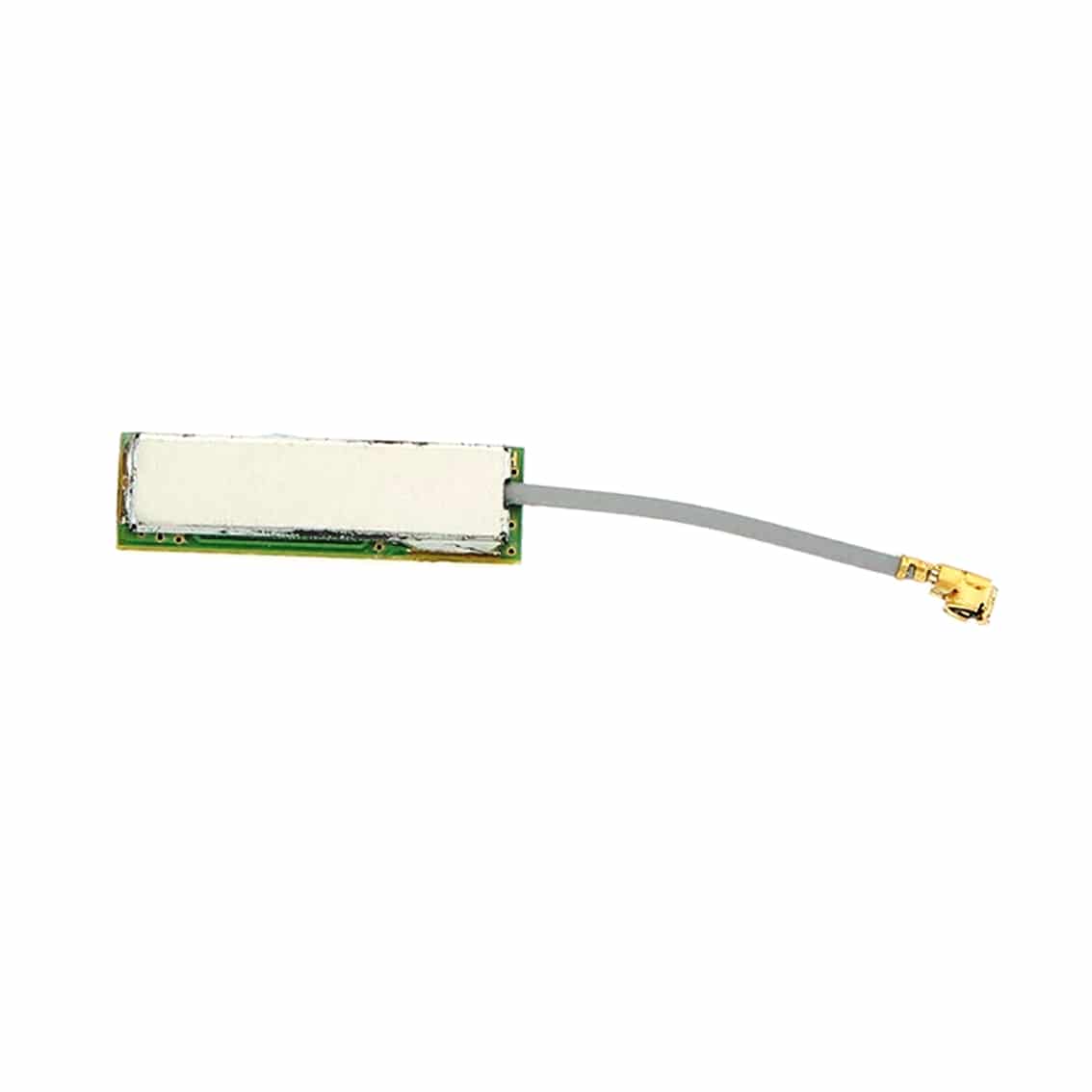

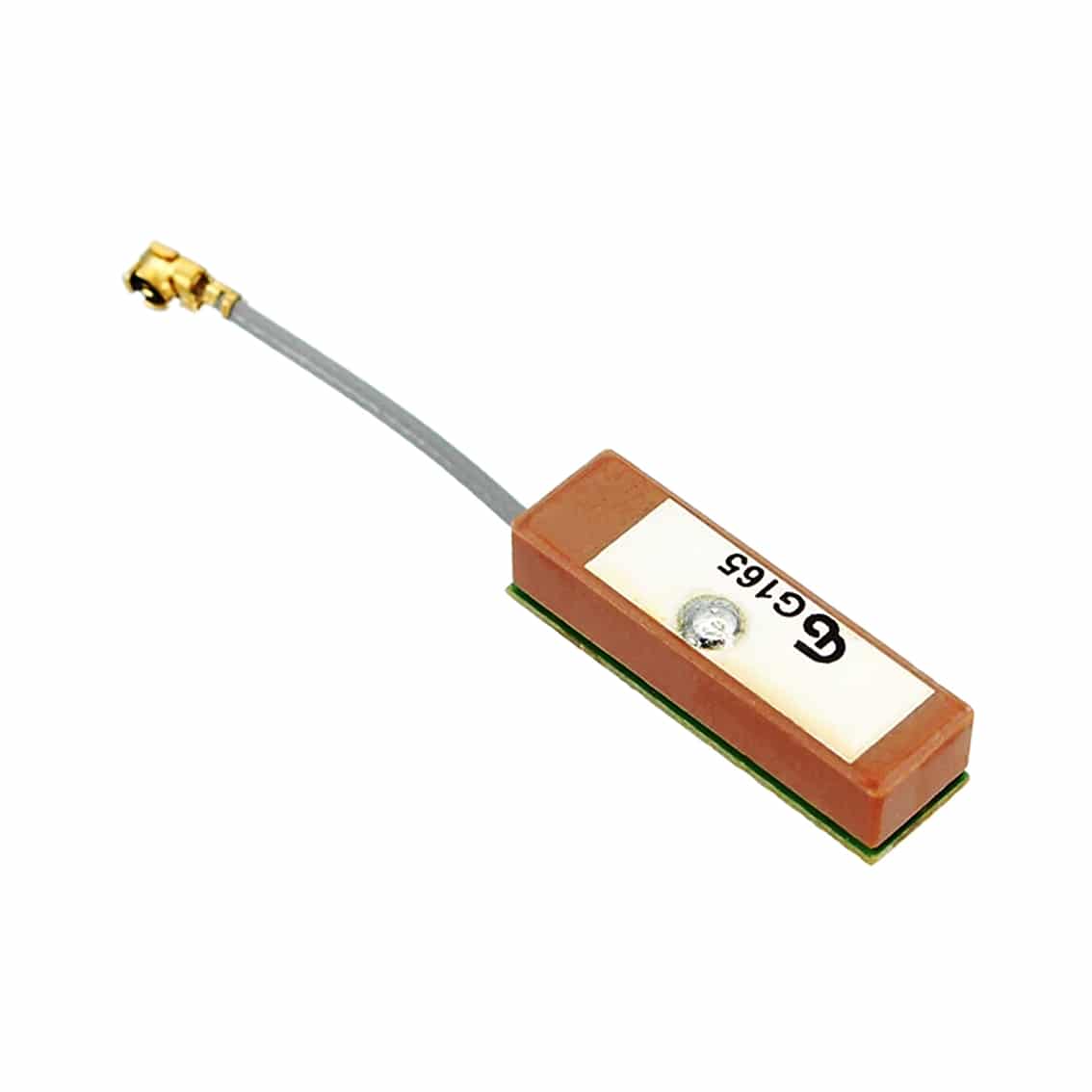

The Active Ceramic GPS Antenna with IPEX Interface is a small form antenna for GPS modules.

$12.95

Order Within –

Availability: 23 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002619

You May Also Like...

Description:

The Active Ceramic GPS Antenna with IPEX Interface is a small form antenna for GPS modules.

It has a centre frequency of 1575.42MHz with a lower and upper limit of ±3MHz.



Specifications:

  • Operating Voltage: 3.0V ± 0.3V
  • Frequency Range: 1575.42MHz ±3 MHz
  • VSWR: ≤2.0
  • Noise Figure: ≤2.0 dB
  • LNA Gain: 28 dB
  • Line length: 2.5 cm
  • Module Length: 20mm
  • Module Height: 6mm
  • Module Width: 6mm
  • Lead Length: 60mm



Contents:

  • 1 x Active Ceramic GPS Antenna with IPEX Interface
Weight 0.003 kg
Dimensions 80 × 5 × 50 mm
