Adjustable 2K Ohm Potentiometer Resistor with Rotary Knob – 3590S-2

18 people have recently viewed this product!

Adjustable 2K Ohm Potentiometer Resistor with Rotary Knob – 3590S-2

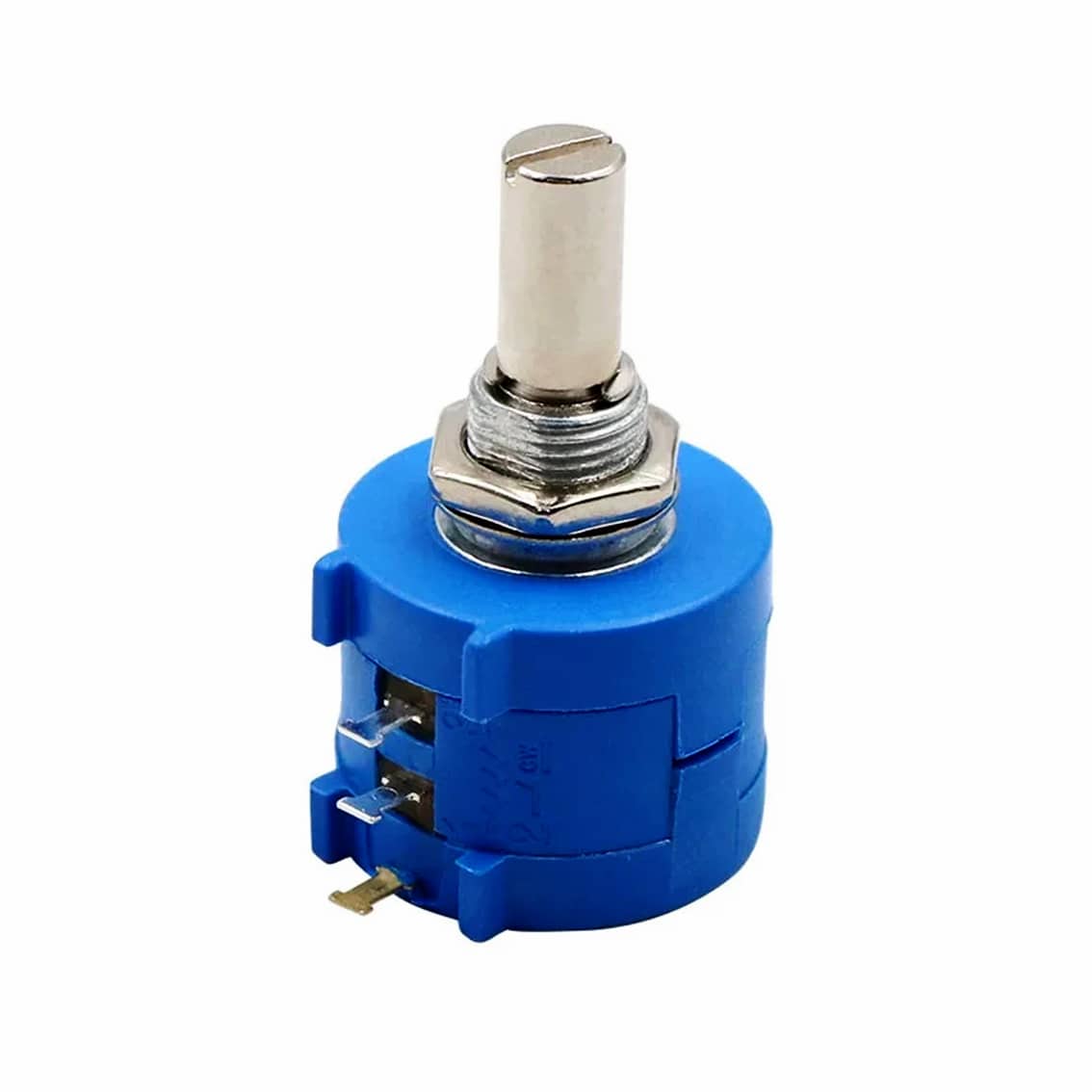

The Adjustable 2K Ohm Potentiometer Resistor with Rotary Knob (3590S-2) is a high-precision multi-turn potentiometer designed for accurate resistance adjustment. It features a robust, wire-wound design with a fully sealed body, making it ideal for precise control in various electronic applications.

$14.95

Order Within –

Availability: 30 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003237

Description:

The Adjustable 2K Ohm Potentiometer Resistor with Rotary Knob – 3590S-2 is a high-precision, multi-turn potentiometer designed for applications requiring accurate and stable resistance adjustments. This potentiometer is ideal for use in electronic circuits where fine control is essential, such as in measurement equipment, audio control, and various electronic devices.

Specifications:

  • Model: 3590S-2-202L
  • Resistance: 2K Ohm
  • Power Rating: 2W
  • Tolerance: ±5%
  • Number of Turns: 10
  • Adjustment Type: Rotary Knob
  • Resistive Material: Wirewound
  • Termination Style: Solder Lug
  • Operating Temperature Range: -40°C to +125°C
  • Mounting Type: Panel Mount
  • Actuator Type: Slotted
  • Actuator Length: 20.63mm (0.812″)
  • Shaft Diameter: 6.34mm (0.2497″)

Features:

  • Precision multi-turn adjustment for accurate control
  • Durable wire-wound resistive element
  • Fully sealed body for enhanced reliability
  • Compact design suitable for panel mounting
  • Includes rotary knob for easy adjustments
  • Suitable for applications requiring fine-tuning of resistance

Contents:

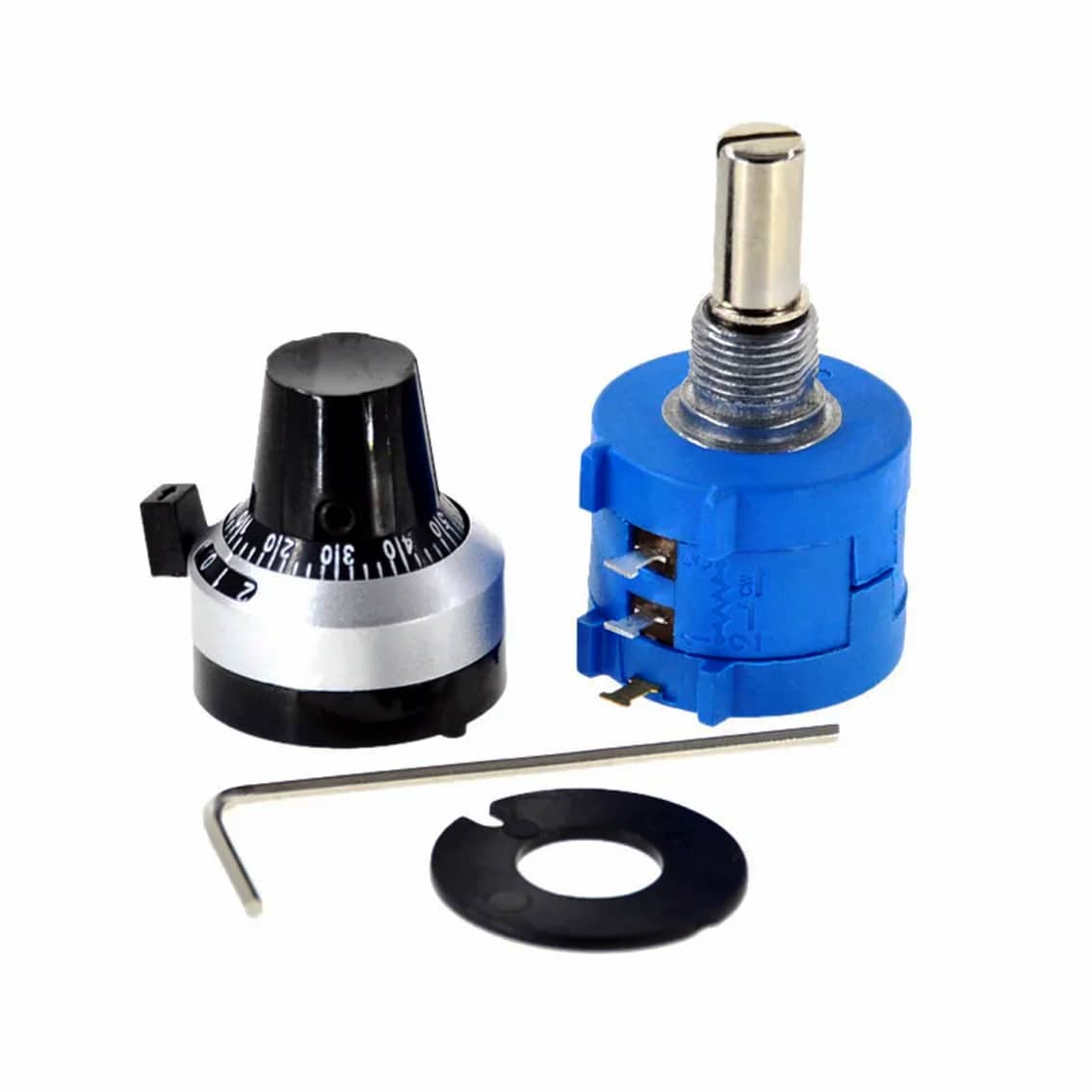

  • 1 x 3590S-2 2K Ohm Potentiometer

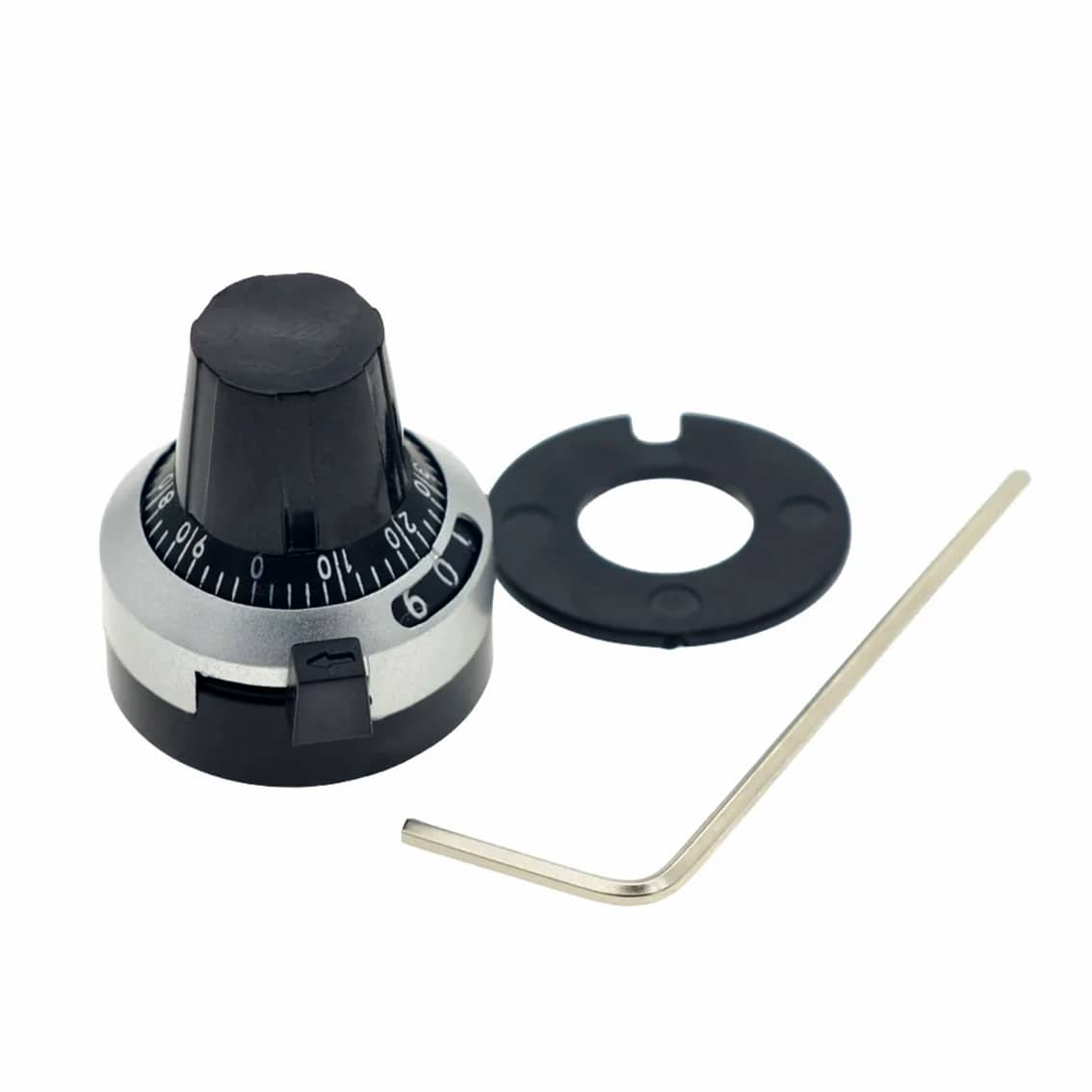

  • 1 x Rotary Knob
Weight 0.028 kg
Dimensions 80 × 60 × 25 mm
Brand

Type

Resistance

2K

Adjustment Type

Rotation

Power Rating

Max Power Dissipation

2W

Tolerance

Maximum Working Voltage

Model

Shaft Length

Shaft Diameter

Body Diameter

Mounting Type
