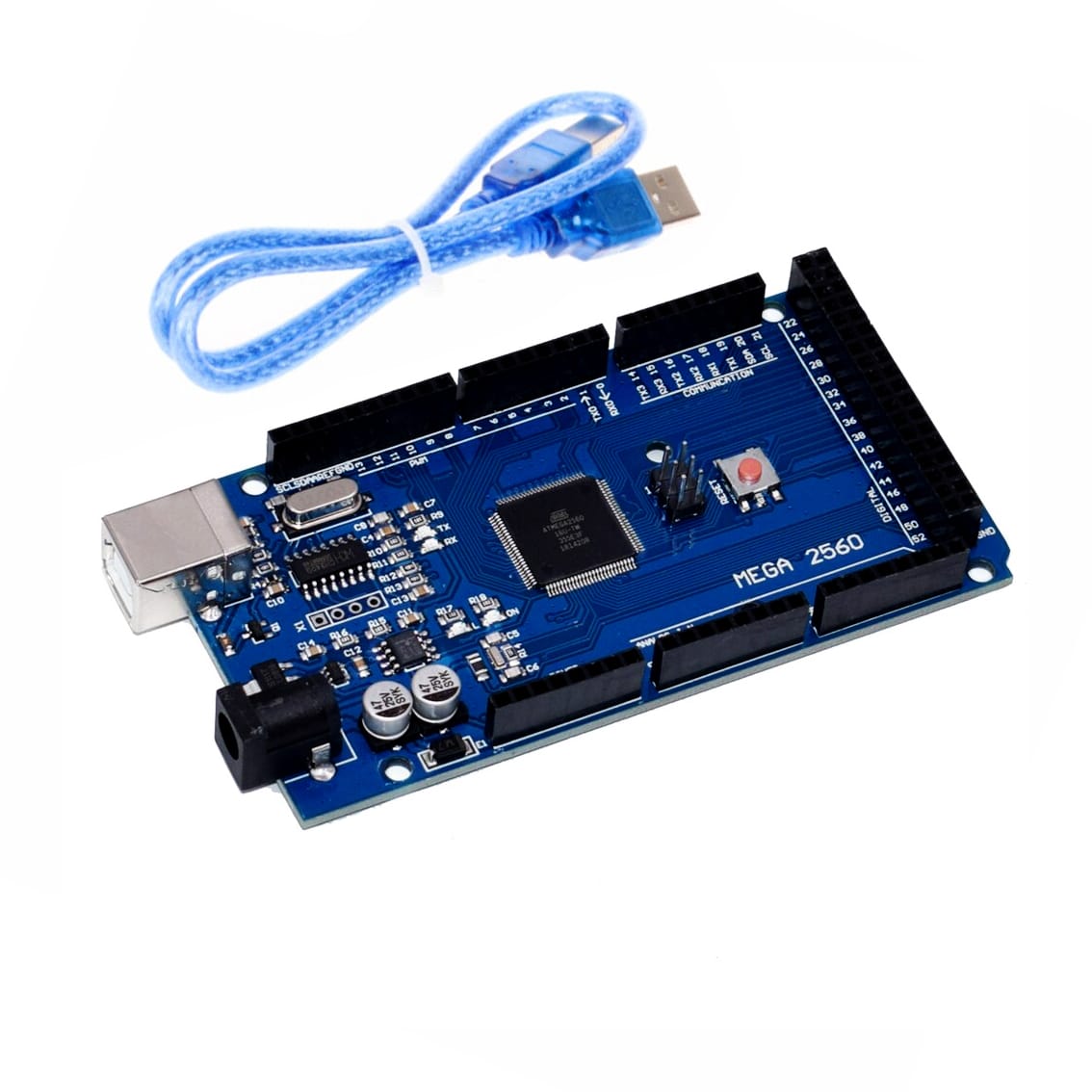

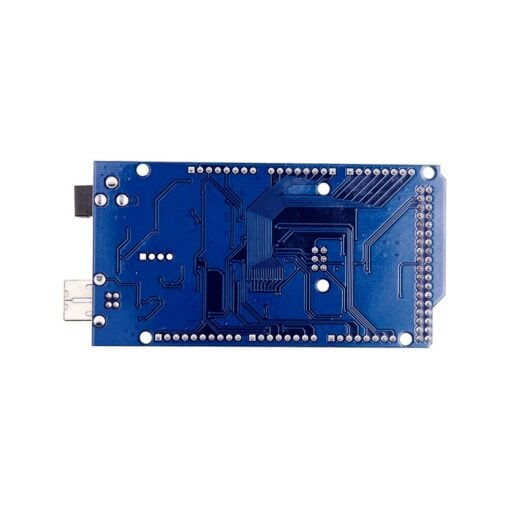

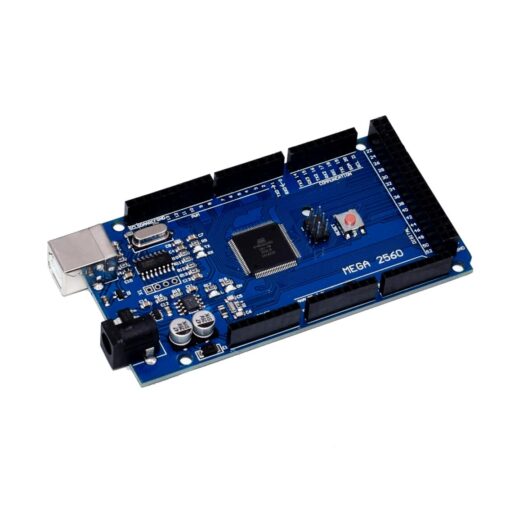

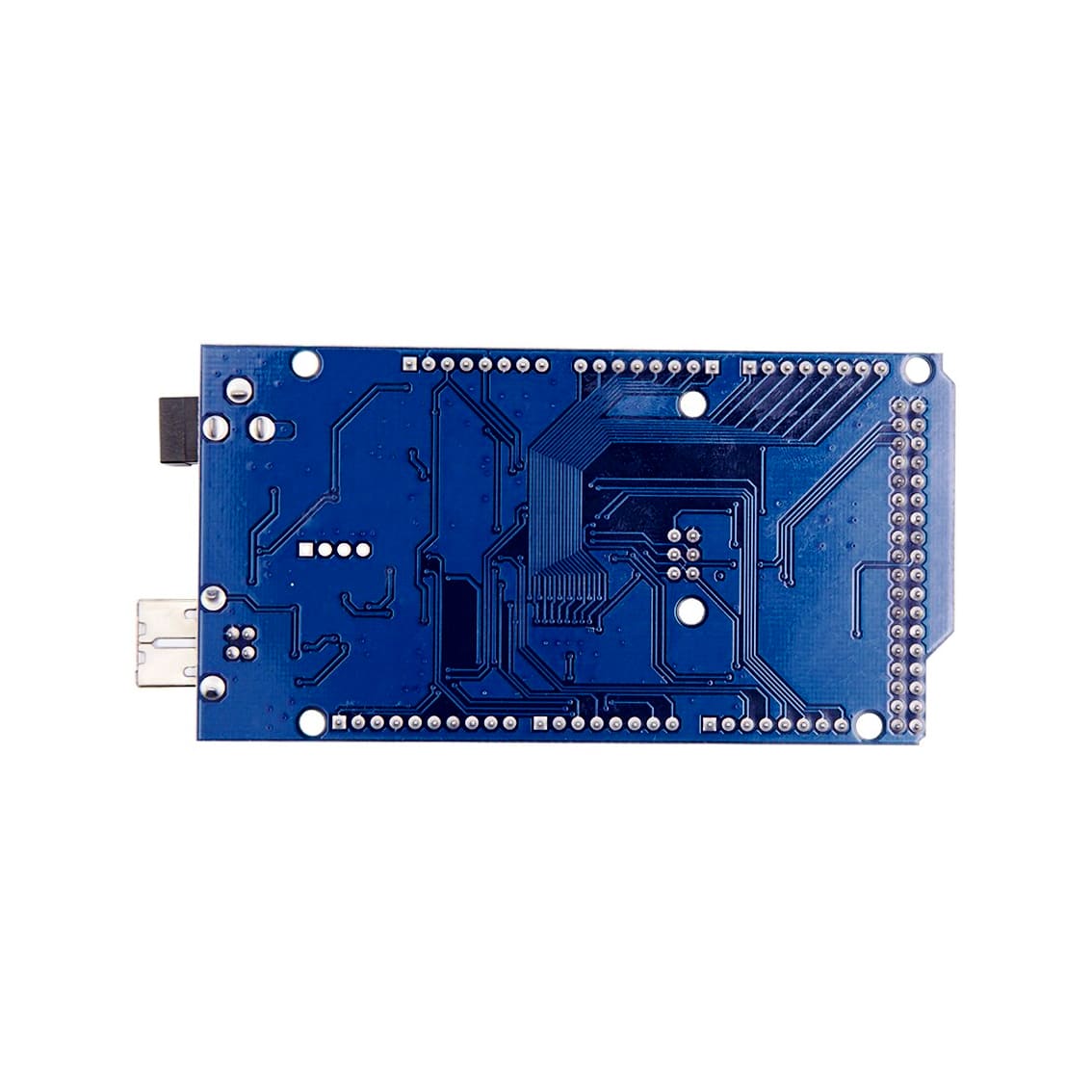

Arduino Mega 2560 R3 CH340 Development Board with USB Cable - Compatible

The Arduino Compatible Mega2560 R3 CH340 Development Board is based on the ATmega2560.


Availability: 42 in stock

Buy now, pay later available.

SKU PHI1011984 Category Tags ,


The Arduino Compatible Mega2560 R3 CH340 Development Board is based on the ATmega2560.

The board has 54 input and output pins of which 15 can be used as PWM outputs, 16 analog inputs and UART. The board also features a 16 MHz crystal oscillator and ISCP header.



  • Operating voltage: 5V DC
  • Input voltage: 6 – 20V DC (7V – 12V recommended)
  • USB Controller: CH340G
  • Clock: 16 MHz
  • Flash memory: 256KB
  • SRAM: 8KB
  • Digital I/O pins: 54
  • Analog pins: 16
  • DC current per I/O pin: 40mA
  • DC current for 3.3V pin: 50mA



  • 1 x Arduino Compatible Mega 2560 R3 CH340 Development Board
  • 1 x USB Cable
