Description:

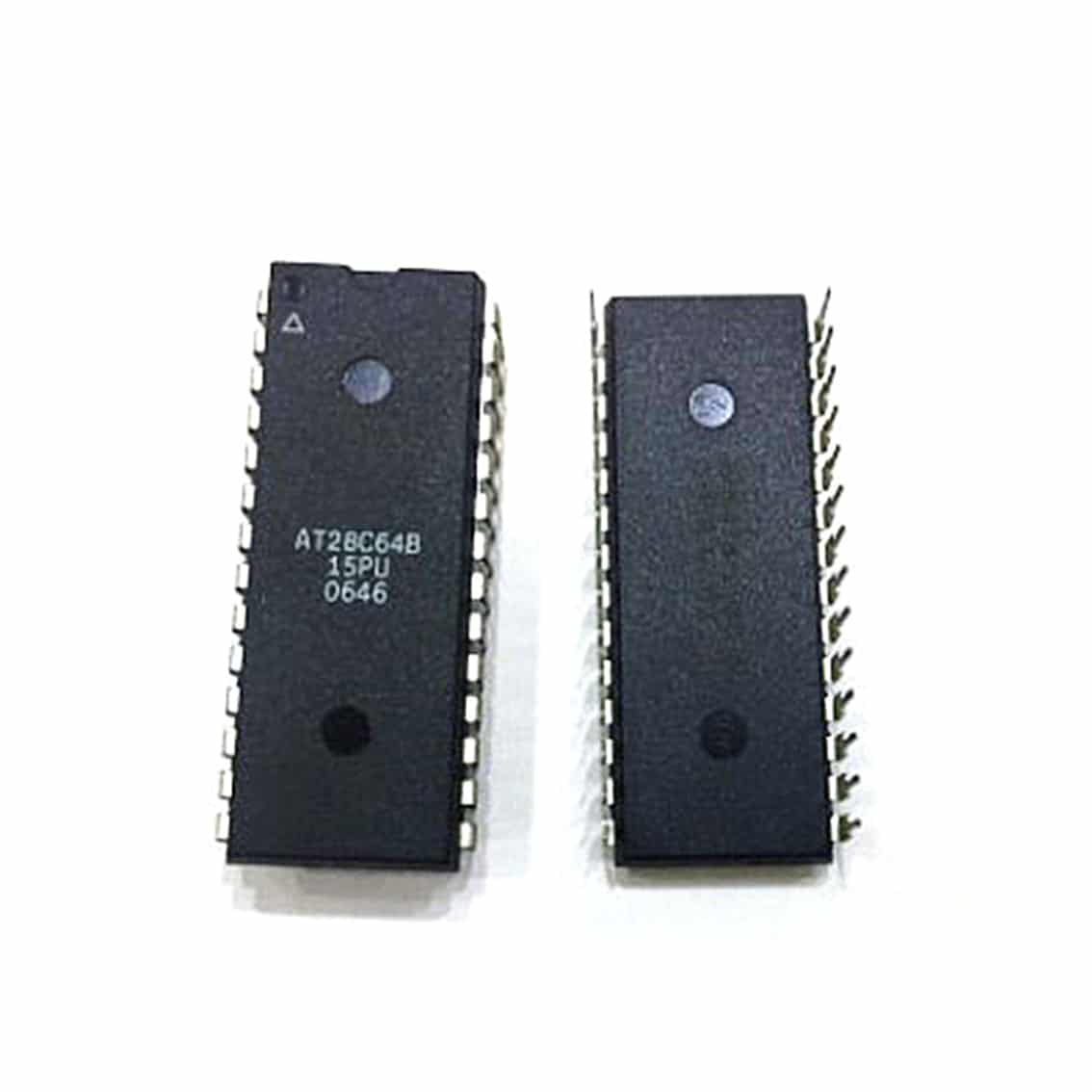

The AT28C64B-15PU is a 64k parallel EEPROM. It has 28 pins and has non-volatile CMOS technology.
CMOS technology makes it extremely energy-efficient and fast. The standby current is less than 100uA and it offers access times to 150nS with only 220mW power dissipation.
*These are re-purposed chips, they are not brand new*
Specifications:
- Power Supply: 5V
- Min Input High Voltage: 2V
- Output High Voltage: 2.4V
- Input Load Current: 10uA
- CMOS and TTL compatible inputs and outputs
- 40mA active current
- Automatic page write operation
- Single 5V supply
- Hardware and software data protection
- JEDEC approved byte-wide pin-out
- Maximum page writes cycle time of 10ms (standard)
- High-reliability CMOS technology
- Page write operation from 1byte to 64byte
- Operating temperature range from -40C to 85C
Contents:
- 3 x AT28C64B-15PU Atmel EEPROM IC
