Description:

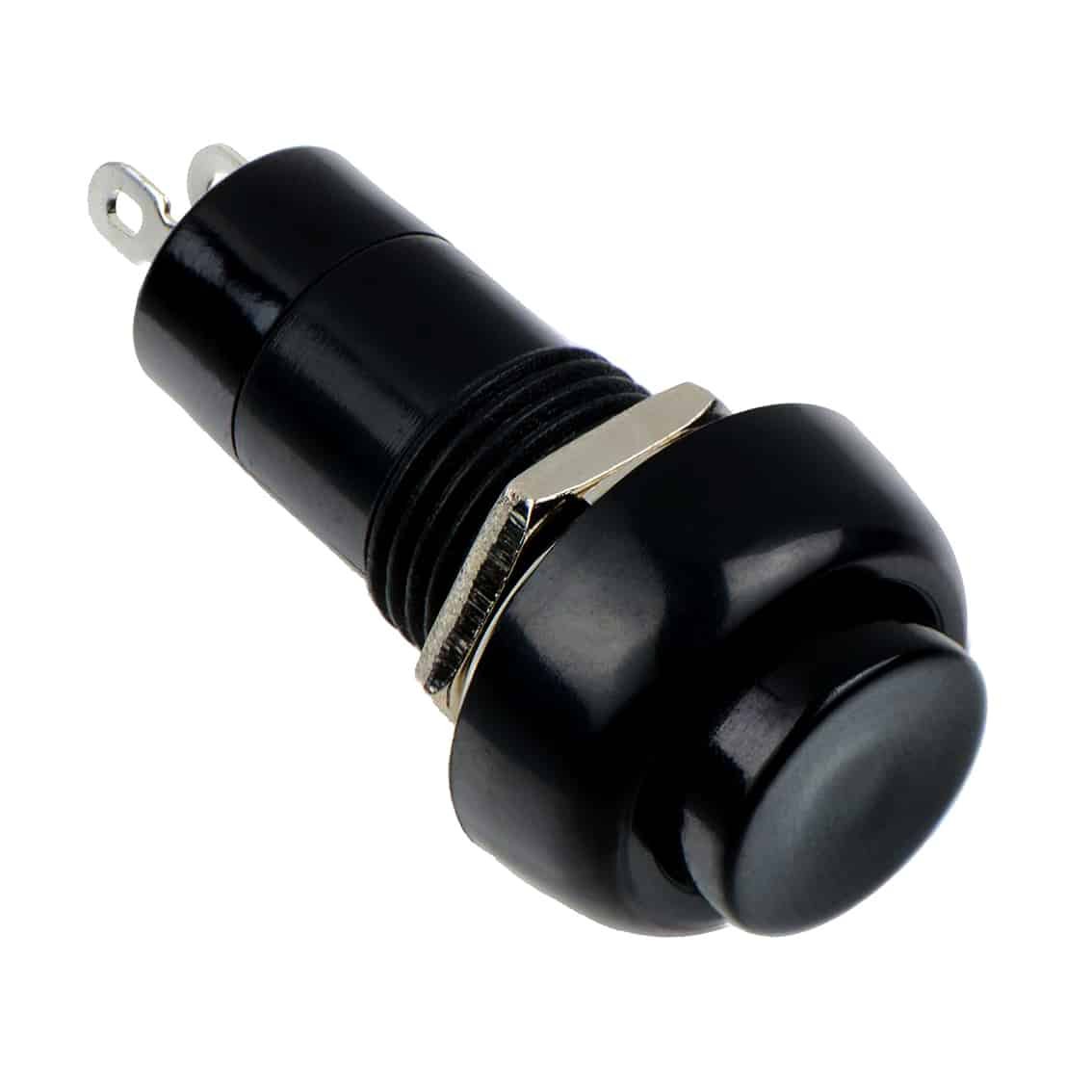

The Black Self-Locking Push Button Switch PBS-11 is a high-quality, durable switch for various applications. This push button switch features a self-locking mechanism, meaning it remains active until it is pressed again. It is ideal for control panels, machinery, household appliances, and other devices requiring a reliable on/off switch. The switch has a 12mm diameter button, making it easy to mount and install in various settings.
Constructed with premium materials, the PBS-11 switch ensures long operational life and reliable performance. It operates efficiently in different environmental conditions, providing a stable and consistent switching action. Available in a pack of 5, this switch set offers an economical solution for projects needing multiple self-locking switches.
Specifications:
- Model: PBS-11A
- Action Type: Self-locking
- Contact Type: Normally Open (NO)
- Voltage Rating: AC 250V, 3A
- Button Diameter: 12mm
- Mounting Hole Diameter: 12mm
- Terminals: 2 pins
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 2000Vac, 50Hz for 1 min
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Operating Humidity: 45% to 85% RH
Features:
- High-quality, environmentally friendly materials
- Easy installation with 12mm mounting diameter
- Durable with a long operational life
- Provides a self-locking switch action
- Suitable for a wide range of applications
Contents:
- 5 x Black Self-Locking Push Button Switch PBS-11
