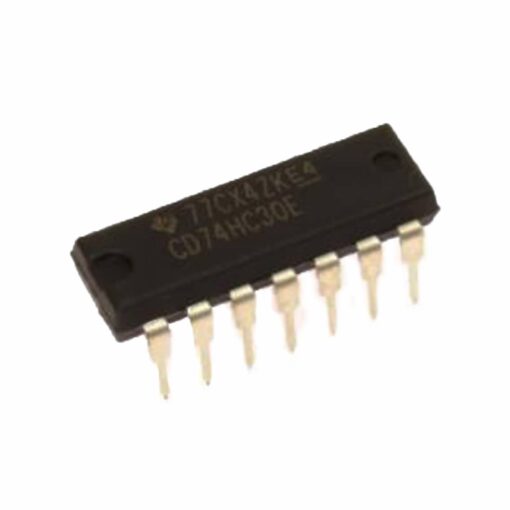

CD70HC30E NAND Gate CMOS IC - Pack of 5

The CD74HC30E is an 8 bit NAND gate all in one integrated circuit (IC). The CD74HC30E uses CMOS technology, making extremely fast and operate smoothly.


Availability: 26 in stock

Buy now, pay later available.

SKU PHI1051433 Category Tag


The CD74HC30E is an 8 bit NAND gate all in one integrated circuit (IC).

The CD74HC30E uses CMOS technology, making extremely fast and operate smoothly.



  • Supply voltage: -0.5V to 7V DC
  • Input Diode Current: +/- 20mA
  • Output Diode Current: +/- 20mA
  • Output Source: +/- 25mA
  • Ground Current: +/- 50mA
  • Operating temperature: -55C – 125C
  • Balanced propagation delay and transition times
  • Significant power reduction when comparing to LSTTLLogic ICs
  • HC types
    • 2V – 6V operation
    • High noise immunity: NIL = 30%, NIH = 30% of VCCat VCC = 5V
  • HCT types
    • 4.5V – 5.5V operation
    • Direct LSTTL input logic compatibility
  • VIL = 0.8V (Max), VIH = 2V (Min)
  • CMOS input compatibility: I1 <1uA at VOL, VOH



  • Buffed inputs
  • Typical propagation delay: 10ns at VCC = 5V, CL = 15pf, TA = 25C
  • Fanout (Over temperature range)
    • Standard outputs: 10 LSTTL Loads
    • Bus driver outputs: 15 LSTTL Loads



  • 5 x CD70HC30E NAND Gate CMOS IC
