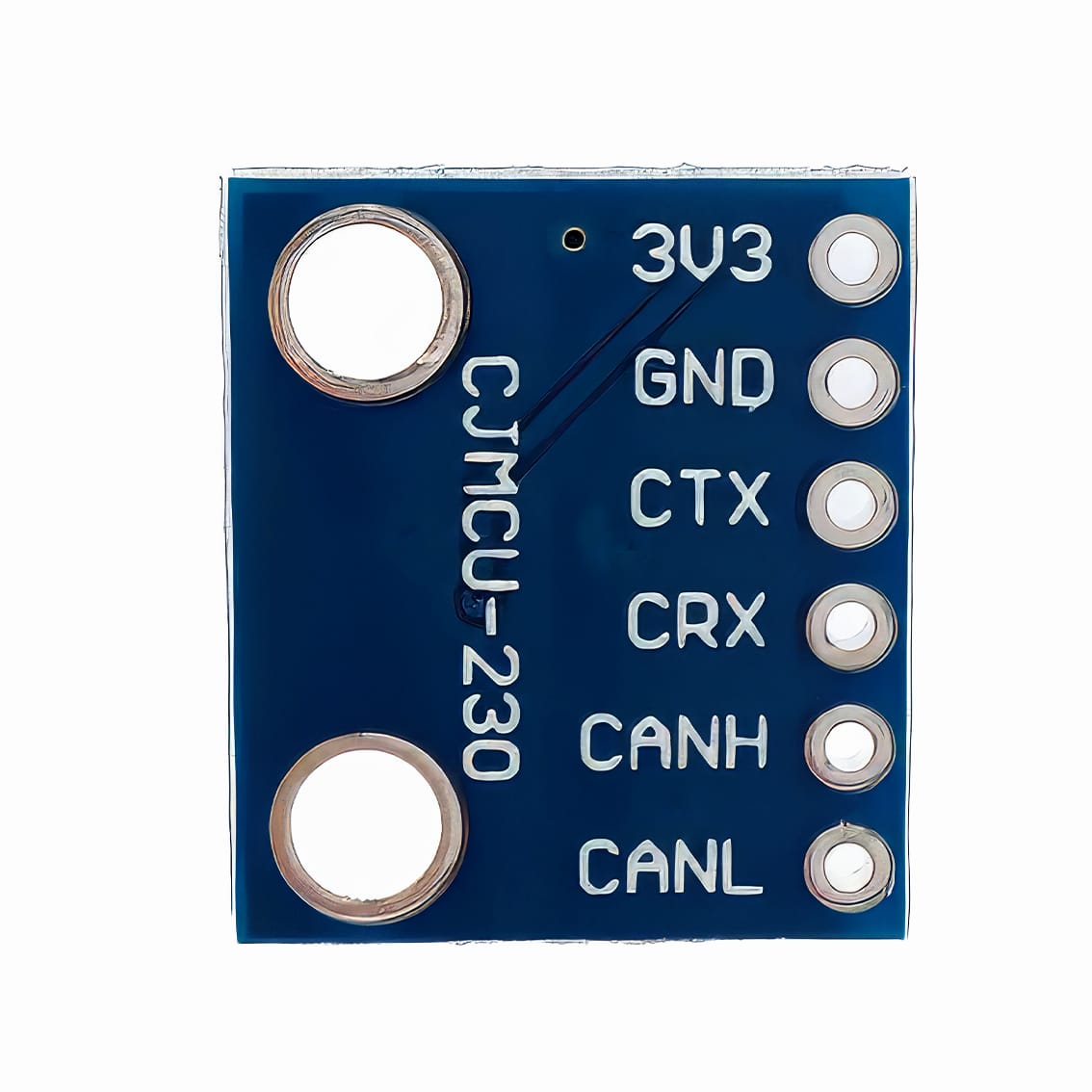

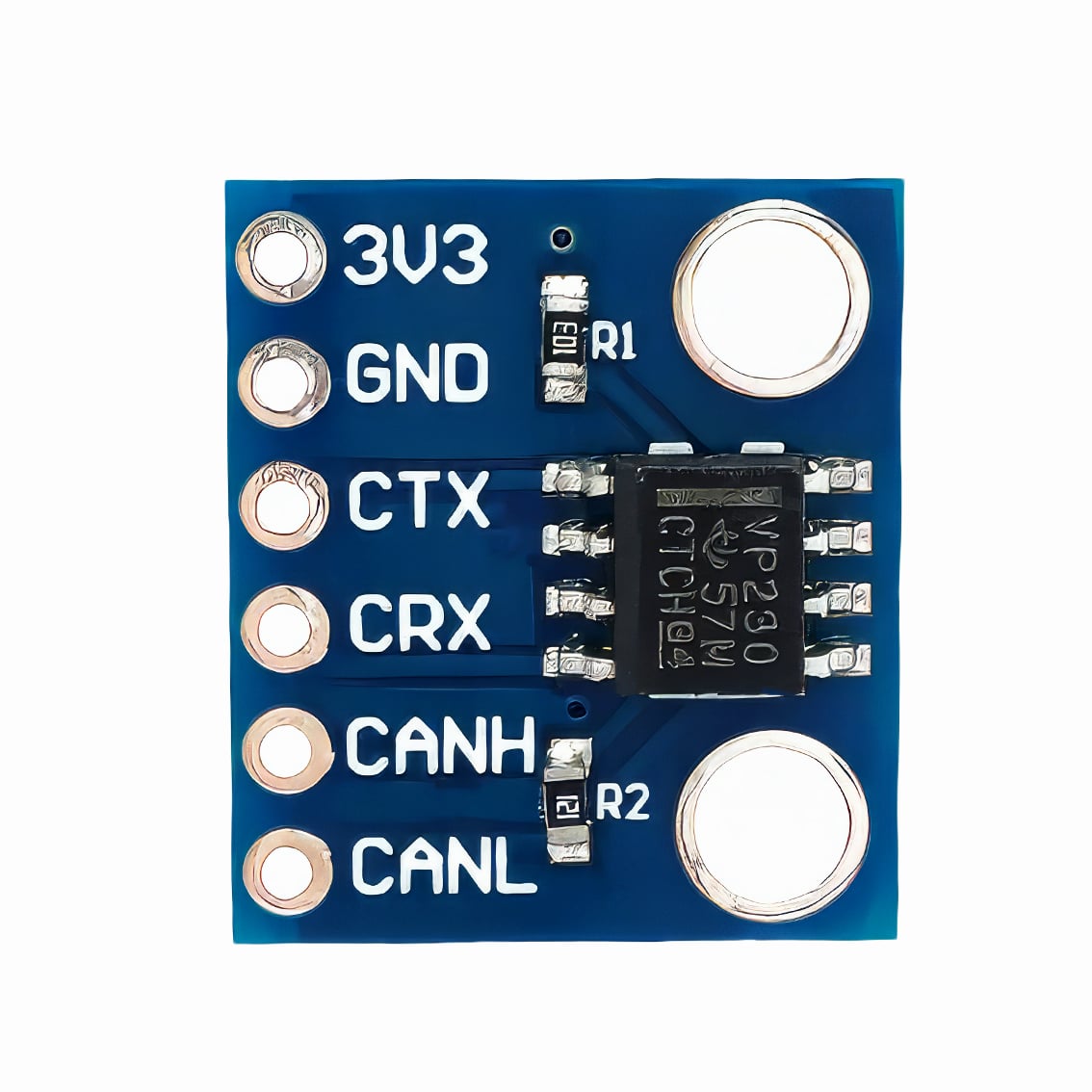

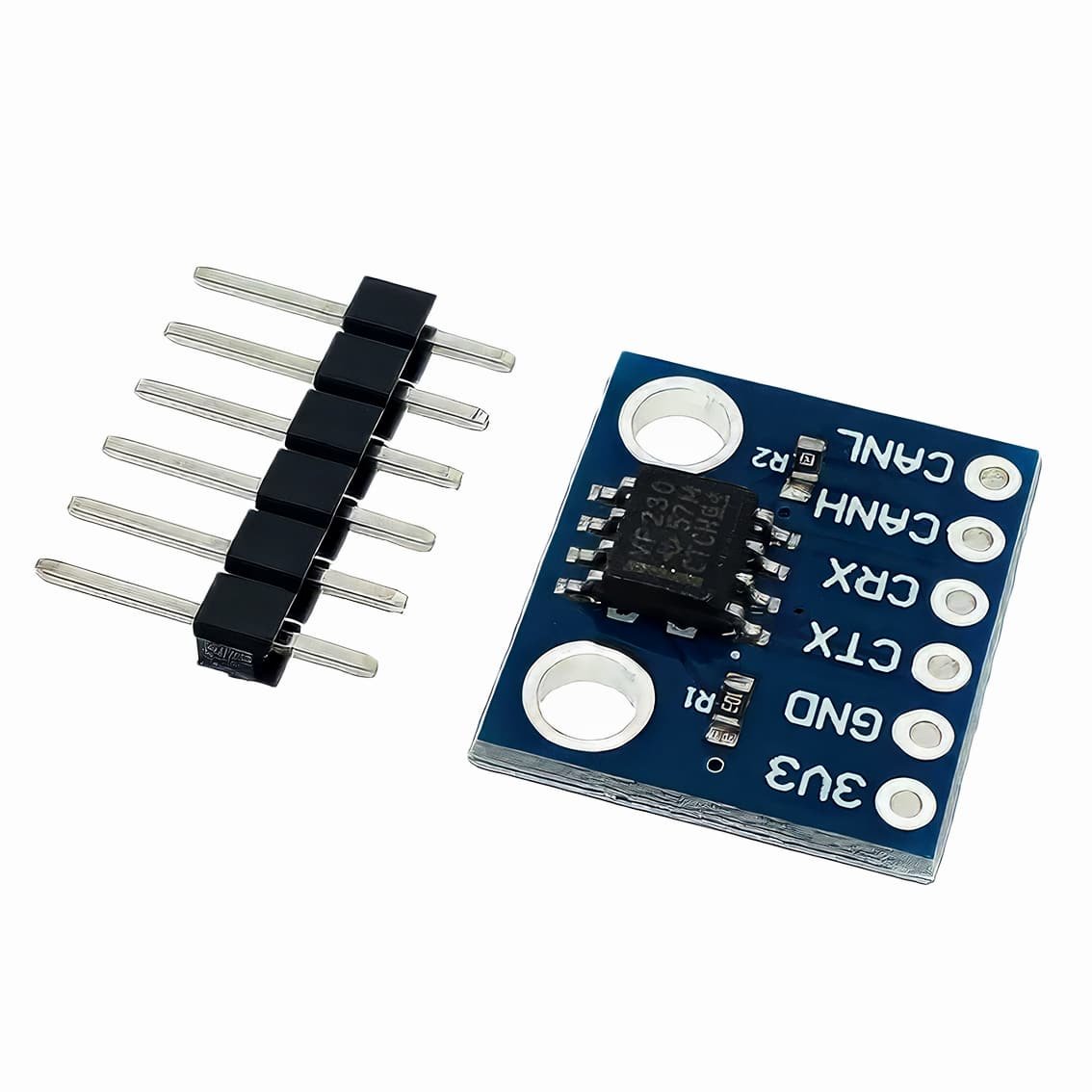

CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module

41 people have recently viewed this product!

CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module

The CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module provides high-speed, reliable CAN communication up to 1 Mbps. Featuring thermal shutdown and short-circuit protection, it is ideal for automotive, industrial, and automation applications.

$14.95

Order Within –

Availability: 25 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003273

You May Also Like...

Description:

The CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module is a highly efficient and reliable solution for integrating CAN (Controller Area Network) communication into your projects. Based on the SN65HVD230 transceiver chip, this module supports high-speed CAN communication, making it ideal for automotive, industrial, and automation applications where robust and stable data transfer is crucial. The module enables devices to communicate over long distances in electrically noisy environments, ensuring data integrity and reliability.

Featuring a compact design, the CJMCU-230 module is easy to integrate into various systems. It provides differential signaling for the CAN bus, reducing interference and improving communication quality. With its wide operating voltage range and robust protection features, including thermal shutdown and short-circuit protection, this module ensures reliable performance in demanding conditions.

Whether you are developing a new CAN-based system or enhancing an existing one, the CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module offers a dependable and efficient solution for your communication needs.

Specifications:

  • Chip: SN65HVD230
  • Communication Protocol: CAN 2.0
  • Operating Voltage: 3.3V
  • Bus Voltage Range: -7V to +12V
  • Data Rate: Up to 1 Mbps
  • Thermal Shutdown Protection
  • Short-circuit Protection
  • Dimensions: 30mm x 20mm
  • Weight: 5g

Features:

  • High-speed CAN communication up to 1 Mbps
  • Differential signaling for improved noise immunity
  • Wide operating voltage range
  • Thermal shutdown and short-circuit protection
  • Compact and easy to integrate
  • Suitable for automotive, industrial, and automation applications

Contents:

  • 1 x CJMCU-230 SN65HVD230 CAN Bus Transceiver Communication Module
Weight 0.01 kg
Dimensions 80 × 50 × 5 mm
Brand

Type

Interface

Operating Voltage

Baud Rate

Chipset

Bus Voltage
