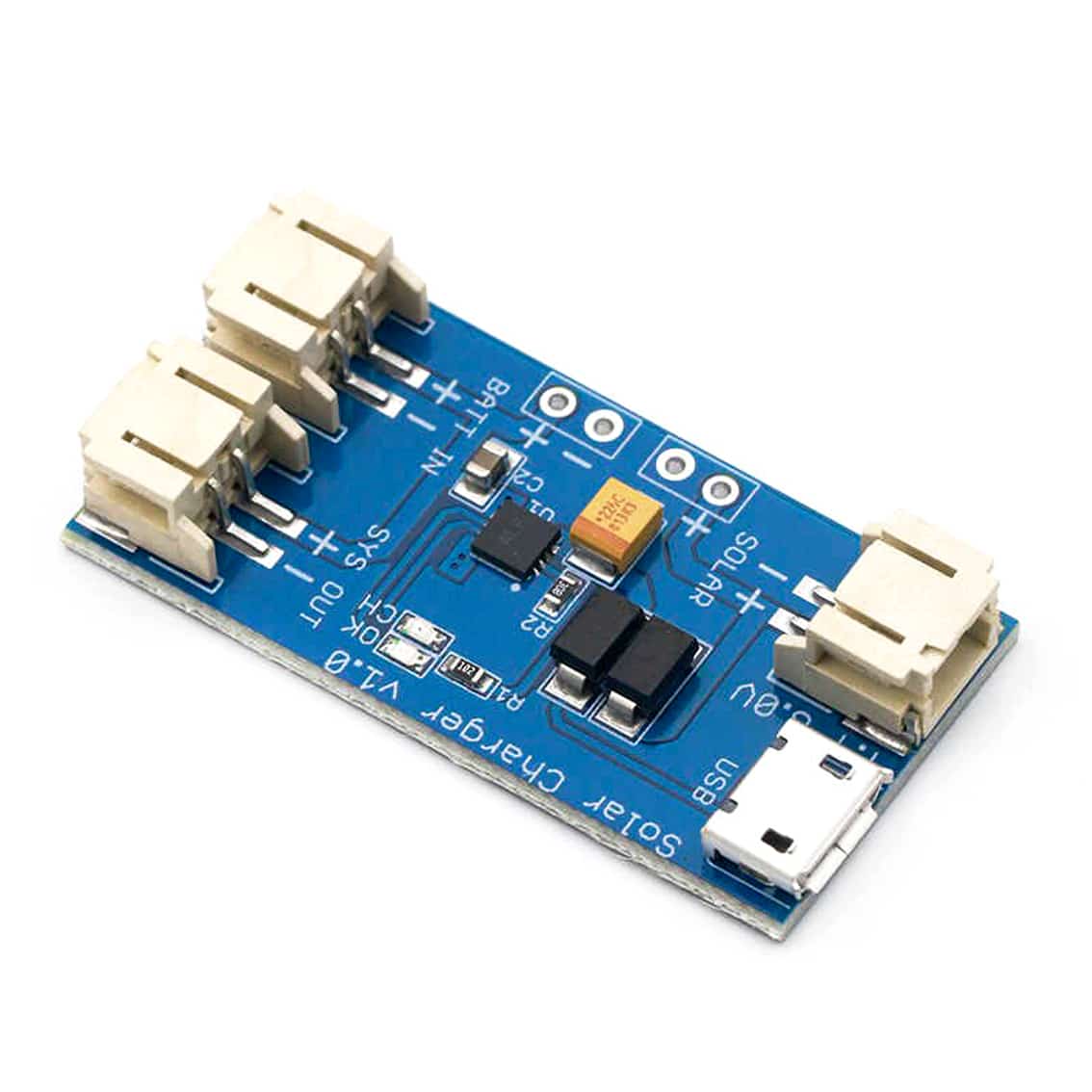

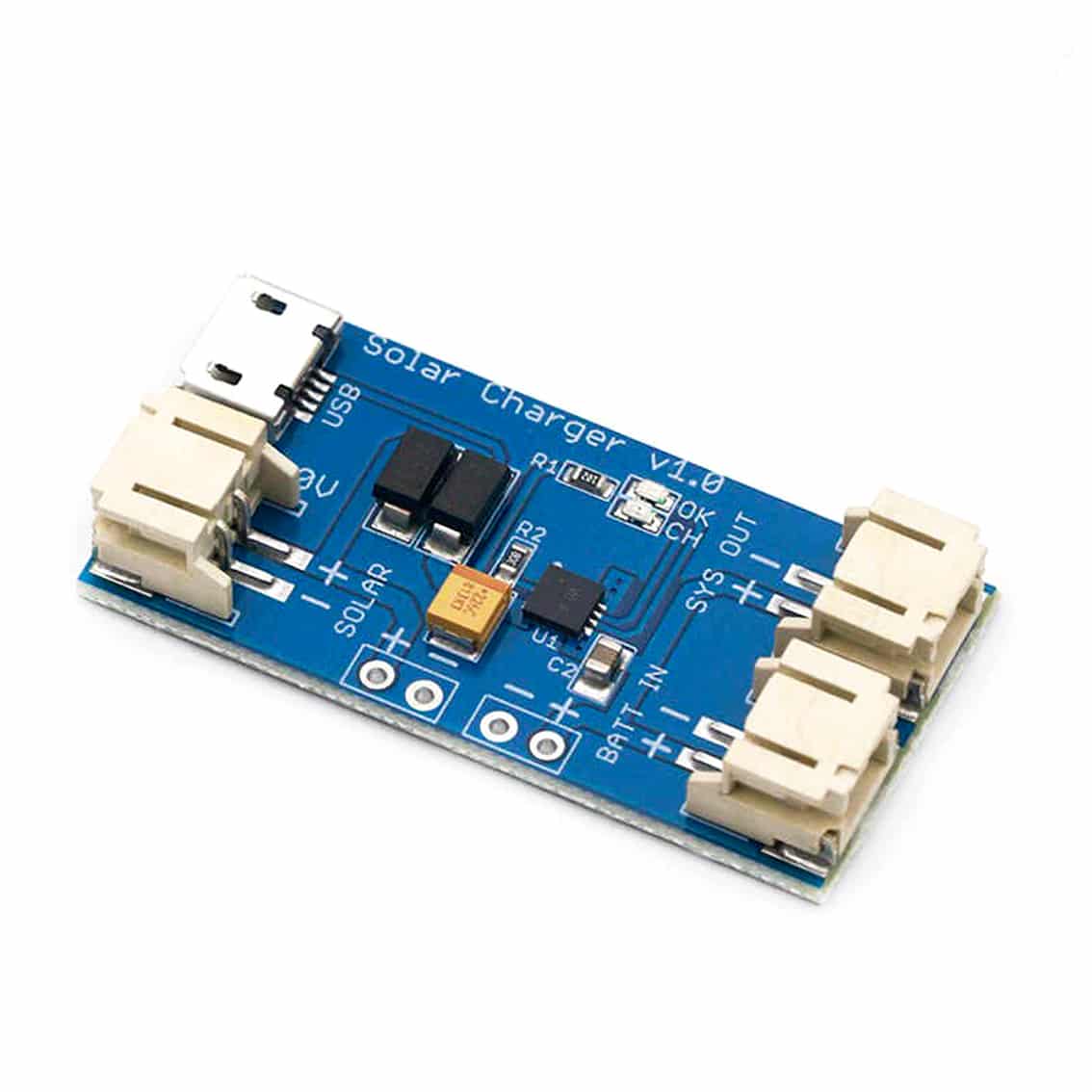

CN3065 Mini Solar Lithium Battery Charging Board with Micro USB

46 people have recently viewed this product!

CN3065 Mini Solar Lithium Battery Charging Board with Micro USB

This module allows for the charging of a lithium battery via solar panel with 4.4V – 6V output.

$13.95

Order Within –

Availability: 42 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002255

Description:

This module allows for the charging of a lithium battery via a solar panel with 4.4V – 6V output.

The module uses the CN3065 charger controller chip to provide constant current and voltage linear charge to a single cell Li-ion and Li-Polymer rechargeable batteries.

The module also features a built-in micro-USB output to support USB charging.



Specifications:

  • Solar panel input: 4.4-6V
  • Max charge current: 500mA
  • Interface: 2-pin JST connectors
  • Short circuit protection
  • Battery status indication
    • Red: Charging
    • Green: Charged
  • Supports USB Charging via the built-in micro-USB connector
  • Dimensions: 40mm x 20mm



Contents:

  • 1 x CN3065 Mini Solar Lithium Battery Charging Board with Micro USB
Weight 0.004 kg
Dimensions 80 × 5 × 60 mm
Brand

Power Module Type

Power Module Attributes

, ,

Input Voltage

Charge Voltage

Maximum Charge Current
