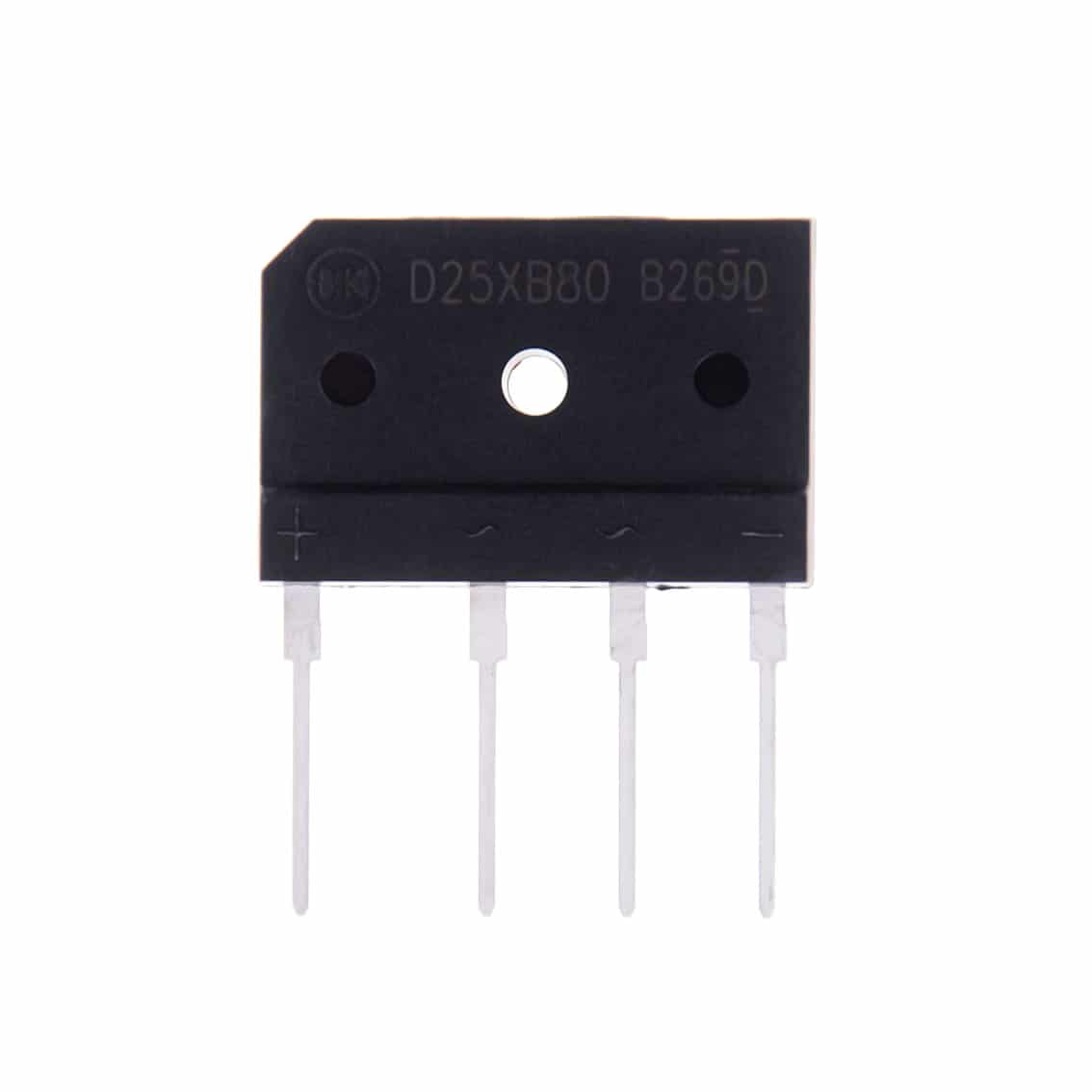

D2XB80 800V 25A Bridge Rectifier – Pack of 5


view all details




- +



24 in stock

- +



The D25XB80 is a 25A bridge rectifier diode with a voltage rating of 800V. Enclosed in a 5S housing.

The D25XB80 has a maximum forward voltage of 1.05V and peak reverse current of 10uA at 800V.
A bridge rectifier converts alternating current (ac) to direct current (dc).



  • Voltage: 800V
  • Current: 25A
  • Housing: 5S
  • Forward voltage: 1.05V @ 25A
  • Reverse current: 10uA @ 800V
  • Operating temperature: -40?C ? 150?C
  • Bridge type: Single
  • Mounting type: Through hole
  • Pins: 4
  • Dimensions: 30mm x 4.6mm x 20mm
  • Quantity: 5 pieces



  • 5 x D25XB80 800V 25A Bridge Rectifier
