DC-DC Multi Output Step Down Power Supply Module – 6-12V to 3.3-5V

23 people have recently viewed this product!

DC-DC Multi Output Step Down Power Supply Module – 6-12V to 3.3-5V

DC-DC Multi-Output Step Down Power Supply Module can convert 6V – 12V input to 3.3V 5V or straight through DC at a maximum output current of 800 mA.

$13.95

Order Within –

Availability: 92 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002225

You May Also Like...

Description:

DC-DC Multi-Output Step Down Power Supply Module can convert 6V – 12V input to 3.3V 5V or straight through DC at a maximum output current of 800 mA.

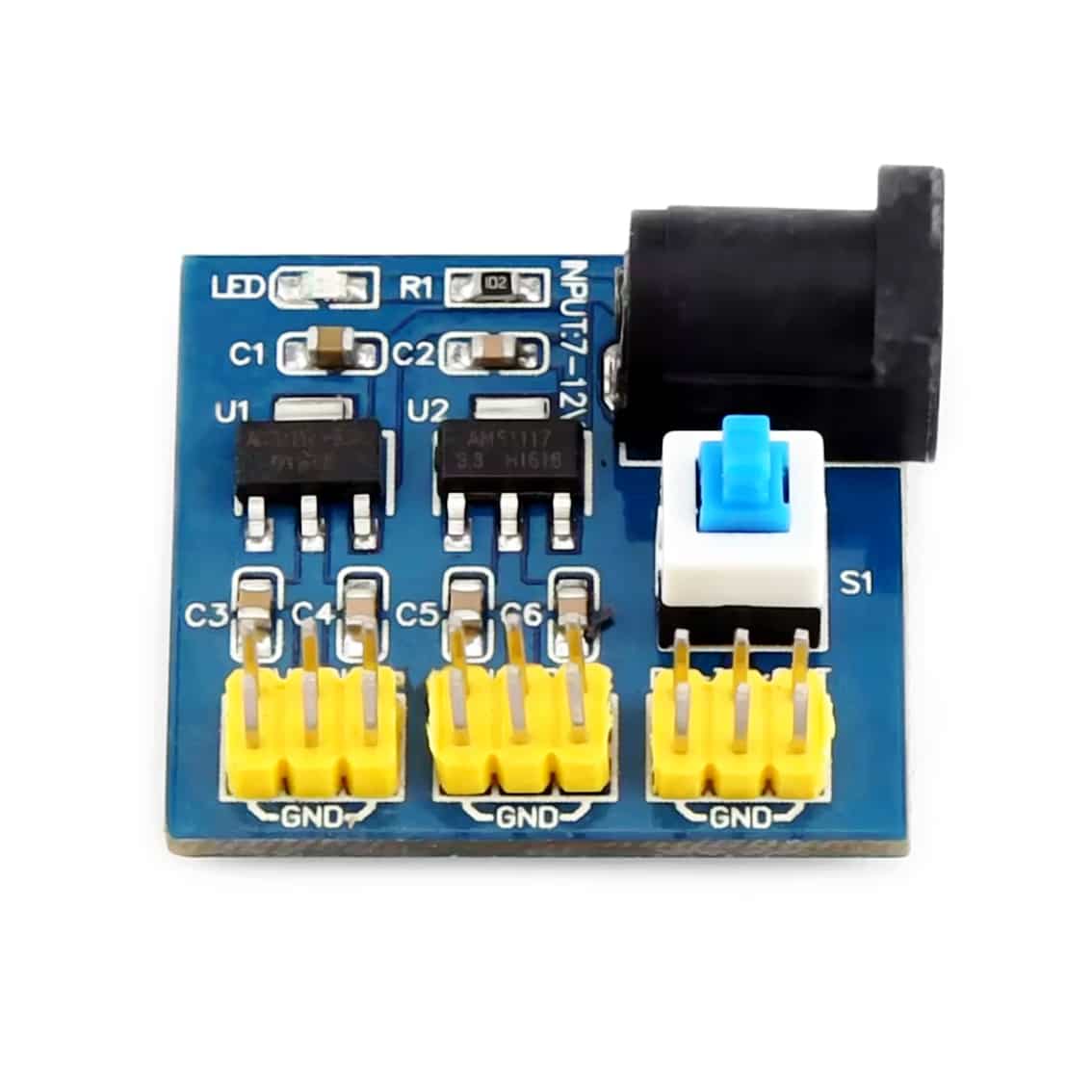

The module features an LED power supply light and multiple-outputs based on the required output.

Input voltage needs to be minimum 1V higher than stepdown voltage.



Specifications:

  • Input voltage: 5VDC – 12VDC
  • Output voltage: 3.3VDC / 5VDC / Straight Through
  • Error: + / – 0.05VDC
  • Output current: 800mA (Maximum)
  • Dimensions: 32mm x 32mm x 13mm



Contents:

  • 1 x DC-DC Multi-Output Step-Down Power Supply Module
Weight 0.008 kg
Dimensions 100 × 10 × 70 mm
