Description:

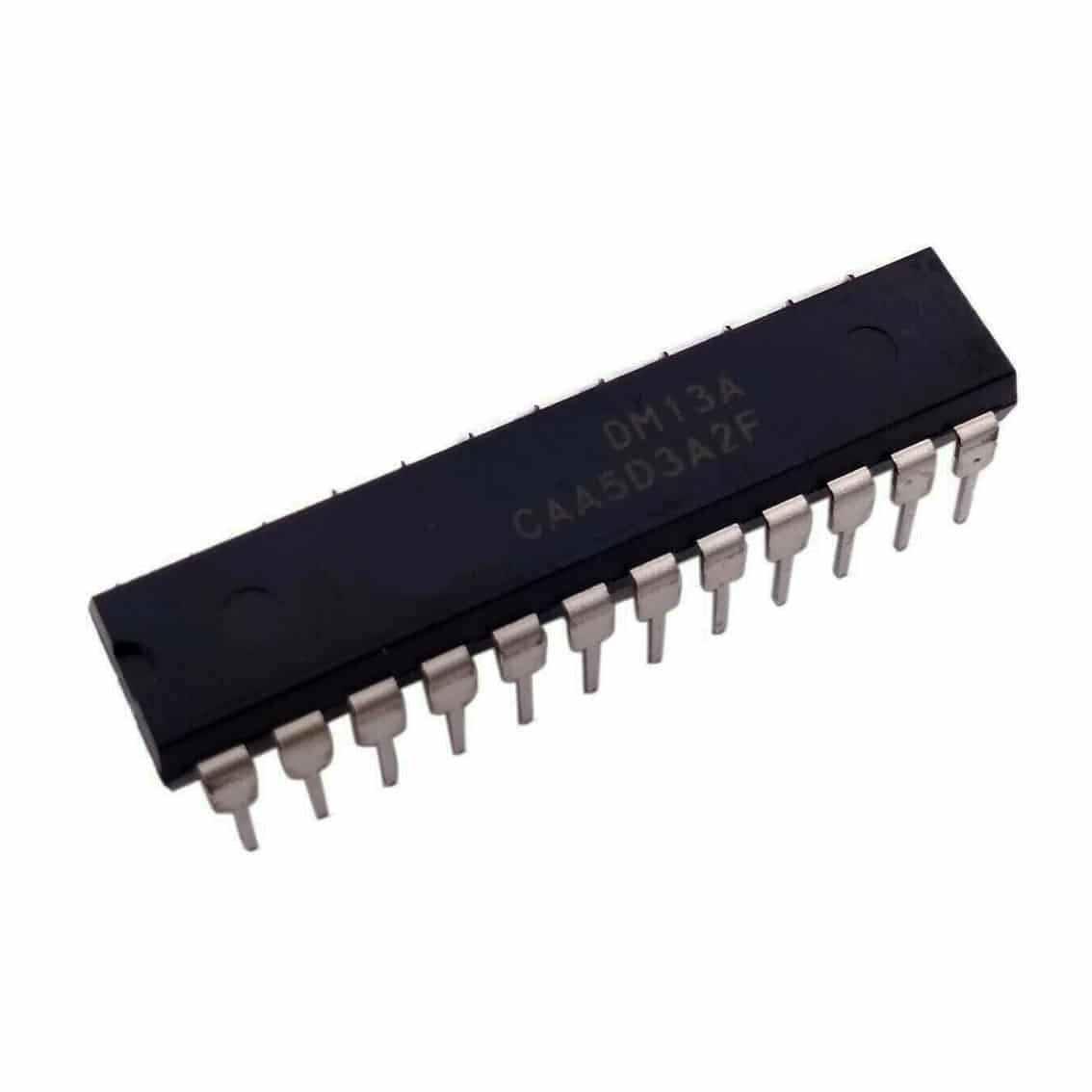

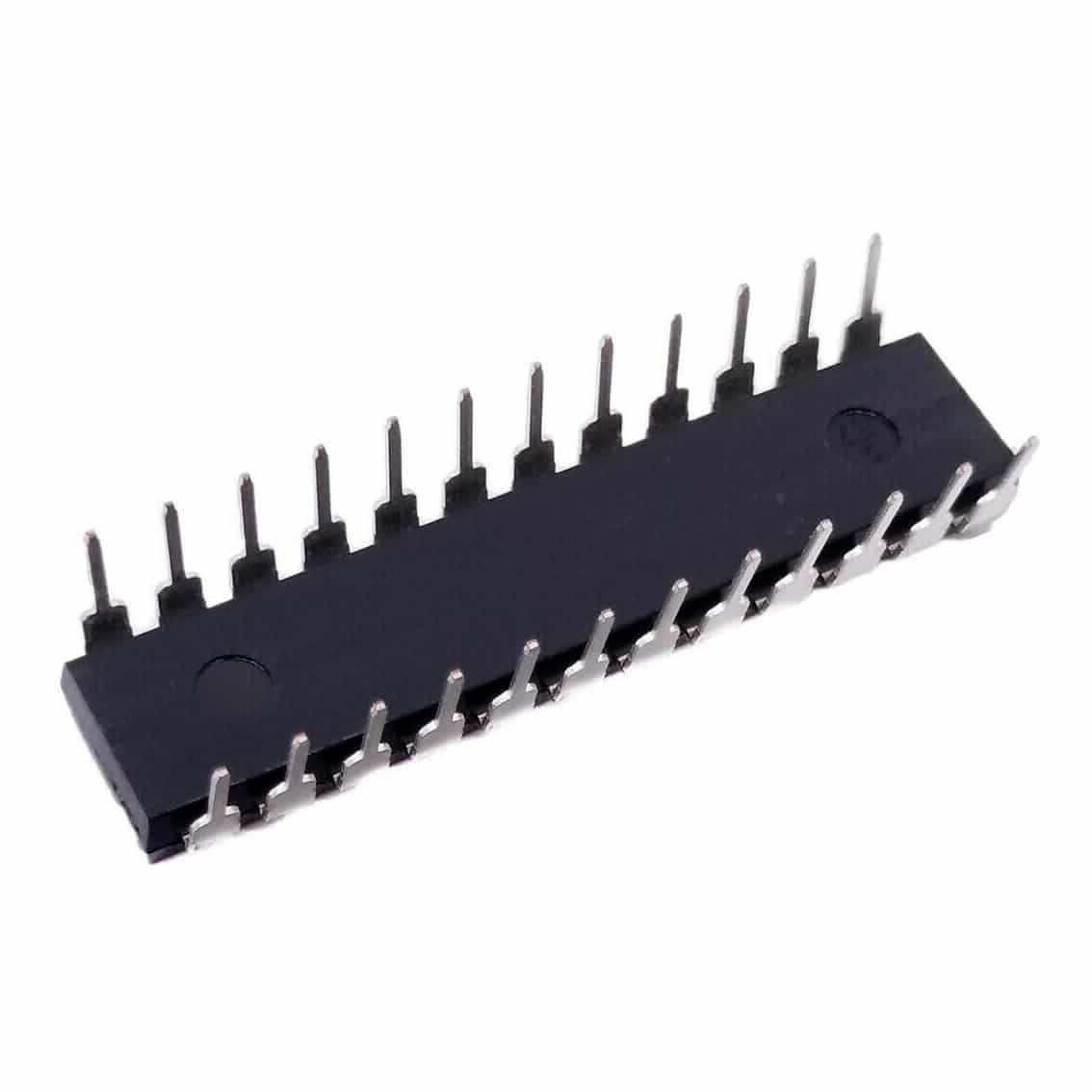

The DM13A 16 Channel Constant Current Driver IC – Pack of 5 offers a compact and efficient solution for controlling multiple LEDs or segment displays with constant current output. Designed for use in digital signage, LED matrices, and general-purpose light driving, the DM13A allows precise current regulation per channel, ensuring consistent brightness regardless of supply voltage variation.
Each IC supports 16 constant current sink outputs with a built-in shift register and latch for serial data communication. With cascading capability via serial data out, multiple DM13As can be daisy-chained to control larger LED arrays. Compatible with TTL/CMOS logic levels and clocked at up to 25MHz, this IC is a reliable choice for projects requiring stable LED output and fine control of current levels. Each pack contains five ICs in DIP-24 format, suitable for breadboard or through-hole PCB applications.
Specifications:
- Part Number: DM13A
- Channels: 16 constant current sink outputs
- Output Current: 5mA to 90mA per channel (set by external resistor)
- Operating Voltage: 3.3V to 5.5V
- Control Interface: Serial (clock and data input)
- Max Clock Frequency: 25MHz
- Built-in 16-bit shift register and latch
- Output Type: Open-drain constant current sinks
- Package: DIP-24 (dual in-line, through-hole)
- Power Dissipation: 800mW (max)
- Operating Temperature: -40°C to +85°C
- Logic Compatibility: TTL / CMOS
- Cascadable: Yes (via serial data out)
- RoHS Compliant: Yes
Features:
- 16-channel constant current driver with serial data input
- Accurate current control via single external resistor
- High-speed serial interface up to 25MHz
- Daisy-chain multiple ICs for large LED displays
- Open-drain outputs for direct LED connection
- DIP-24 package ideal for prototyping and development boards
Contents:
- 5 x DM13A 16 Channel Constant Current Driver ICs (DIP-24)
