FM Radio Receiver Module – TEA5767

49 people have recently viewed this product!

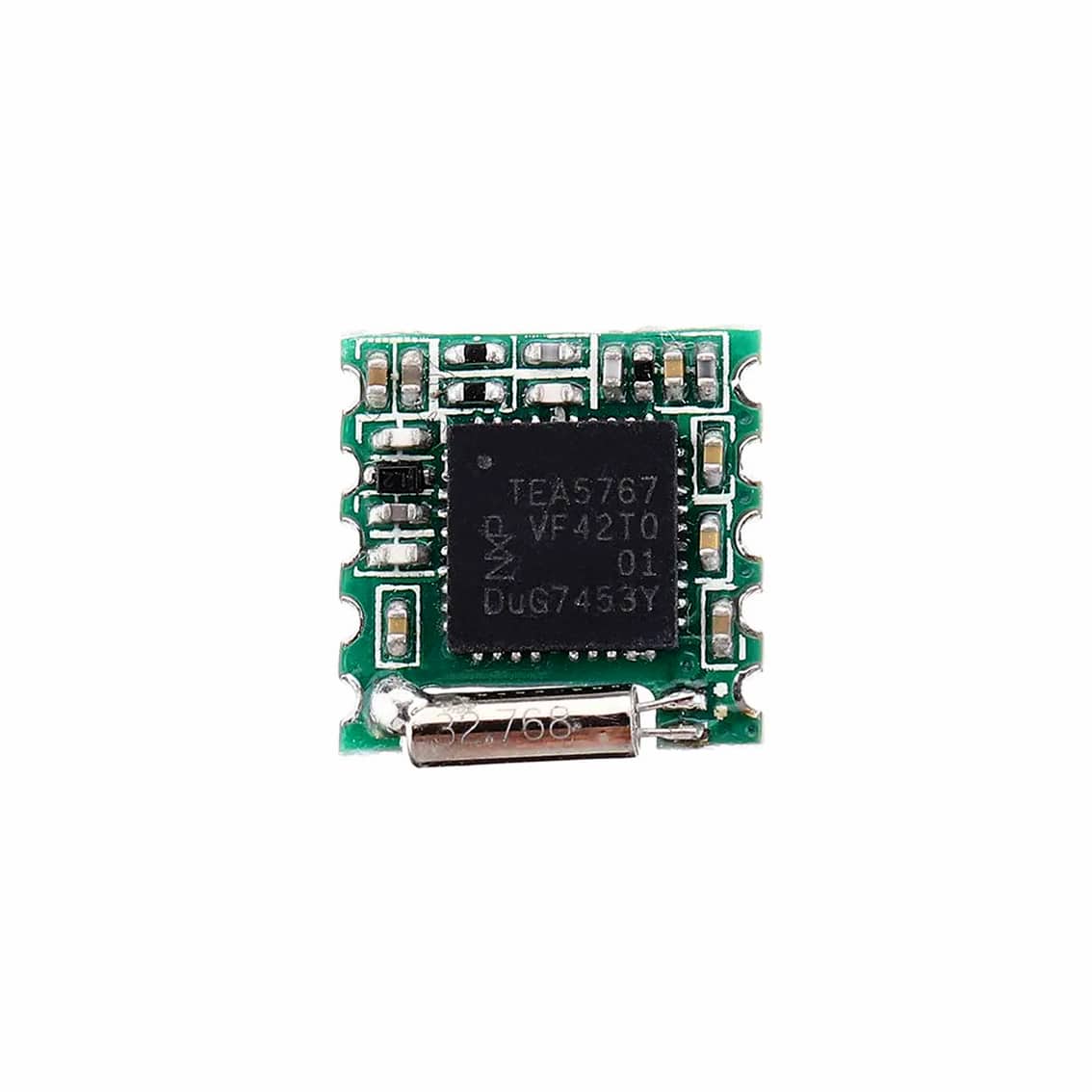

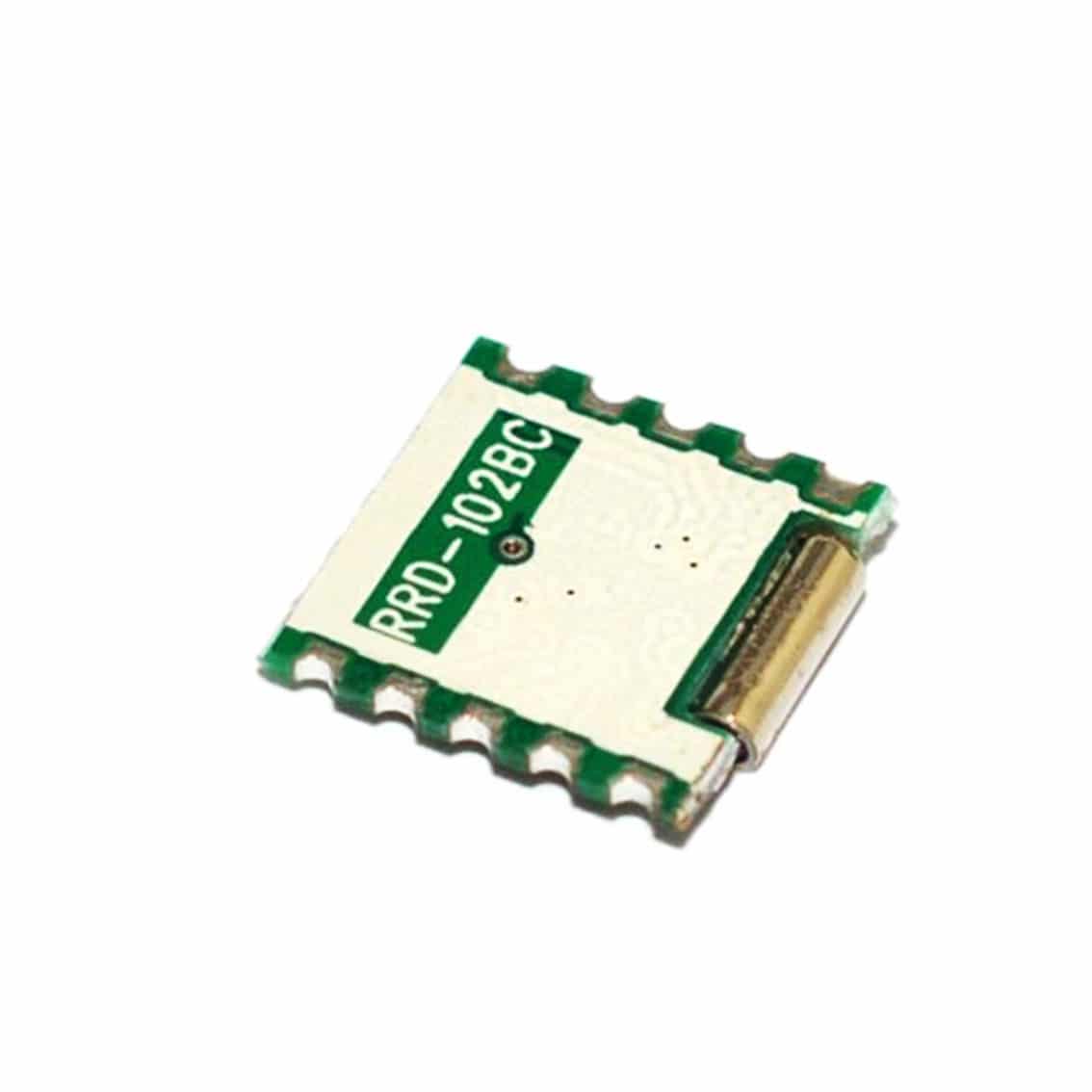

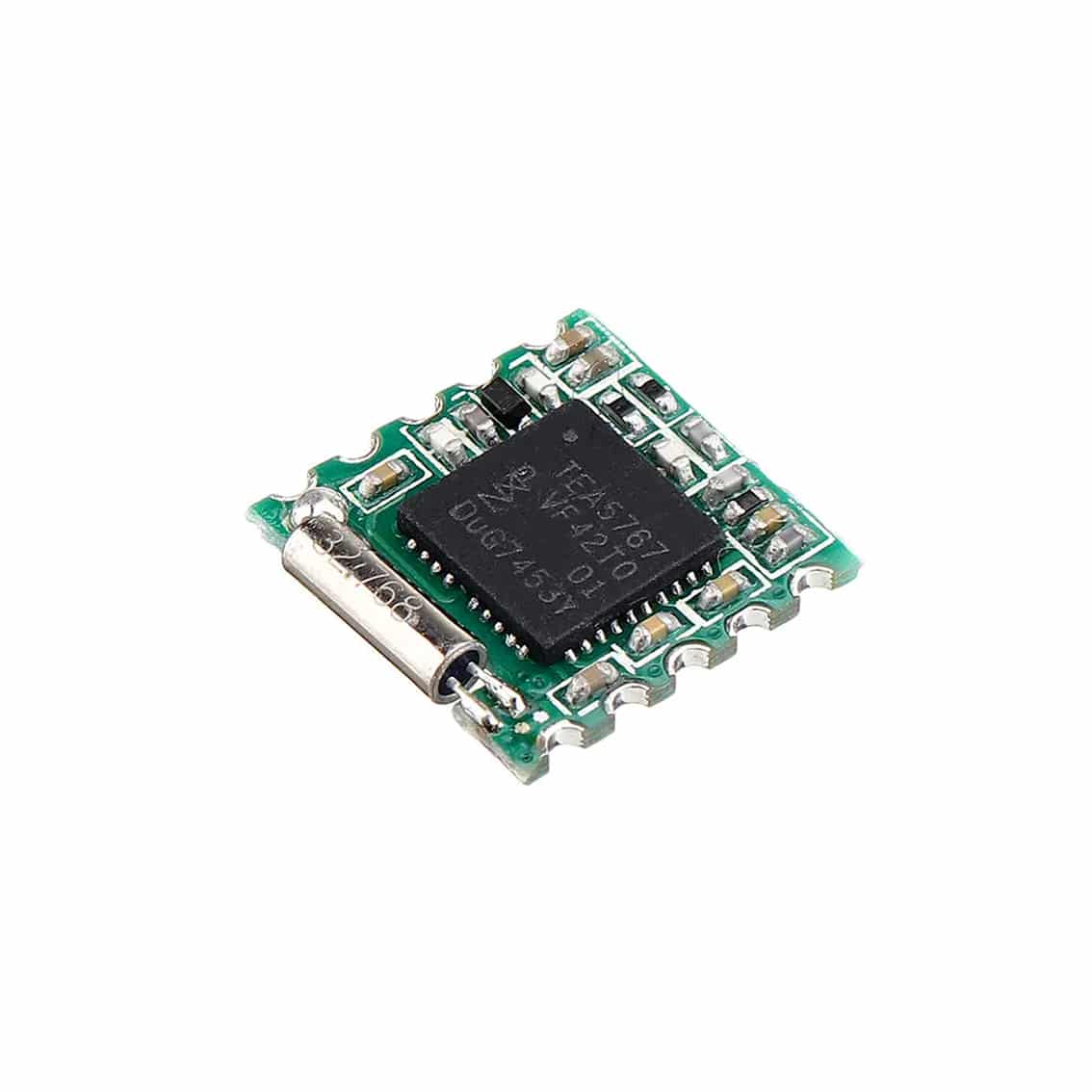

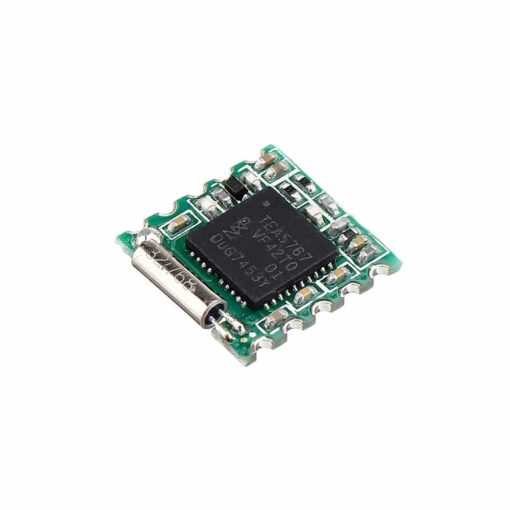

FM Radio Receiver Module – TEA5767

The FM Radio Receiver module is based on the chip TEA5767/68. This chip is used on mp3 and mp4 players, digital radio and mobile phones to realise a stereo FM radio with reception frequency ranging from 87.6MHz to 108MHz.

$15.95

Order Within –

Availability: 24 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002481

Description:

The FM Radio Receiver module is based on the chip TEA5767/68. This chip is used on mp3 and mp4 players, digital radio and mobile phones to realise a stereo FM radio with reception frequency ranging from 87.6MHz to 108MHz.

This module can be utilised to create an FM stereo with a microcontroller.



Features:

  • High Sensitivity due to integrated low noise input amplifier
  • FM Mixer for conversion to IF
  • RF AGC (Automatic Gain Control) circuit
  • Standby Mode
  • Soft Mute
  • Autonomous search tuning function
  • Adjustment free stereo decoder
  • Phase-Locked Loop synthesizer turning system
  • Internal FM IF selectivity
  • LC Tuner Oscillator with low-cost fixed chip inductors
  • Fully integrated FM demodulator
  • Crystal reference frequency oscillator



Specifications:

  • Typical Operating Voltage: 3 V
  • Operating Voltage Range: 2.5V – 5V
  • Frequency Range: 76MHz – 108MHz
  • Interface: I2C
  • Dimensions: 11.2mm x 11mm



Contents:

  • 1 x FM Radio Receiver Module – TEA5767
Weight 0.001 kg
Dimensions 70 × 3 × 50 mm
