FR157 1000V 1.5A Fast Recovery Rectifier Diode – Pack of 100

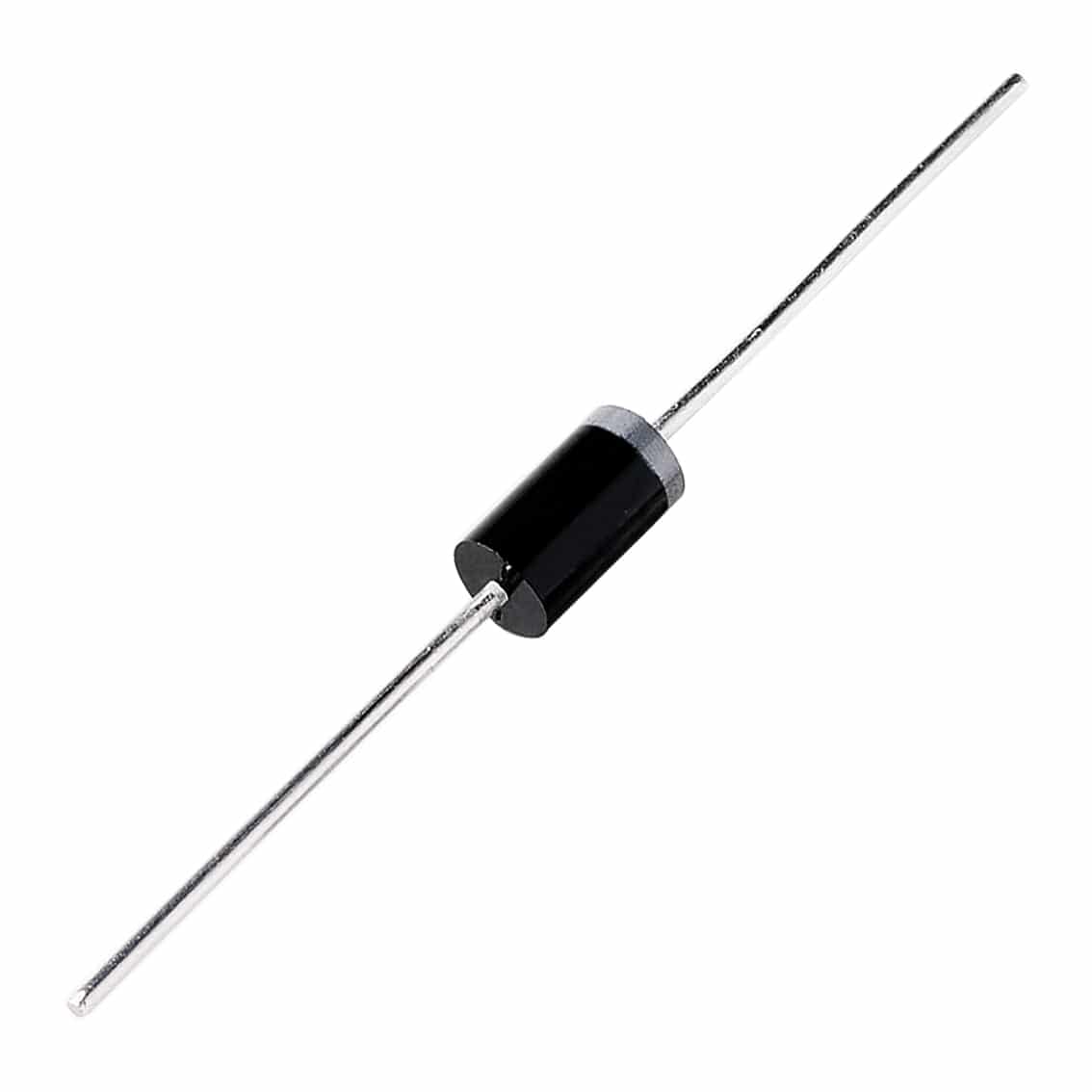

The FR157 is a fast recovery 1000V, 1.5A rectifier diode housed in a DO-15 case.
The FR157 has a short reverse recovery time at a high frequency for rectification purposes.
A quick recovery time is desired when rectifying high-frequency AC signals.
- Mounting Style: Through Hole
- Package/Case: DO-15 / Molded plastic
- Type: Fast Recovery
- Reverse Voltage: 1000 V
- Forward Voltage: 1.3 V
- Forward Current: 1.5 A
- Maximum Surge Current: 60 A
- Reverse Current: 0.1 A
- Recovery Time: 500 nano-seconds
- Operating Temperature: -55 to +150 degrees Celsius
- Series: FR157
- Weight: 0.38 grams
- Dimensions: 5.8 mm x 2.6 mm
- 100 x FR157 1000V 1.5A Fast Recovery Rectifier Diode
