Description:

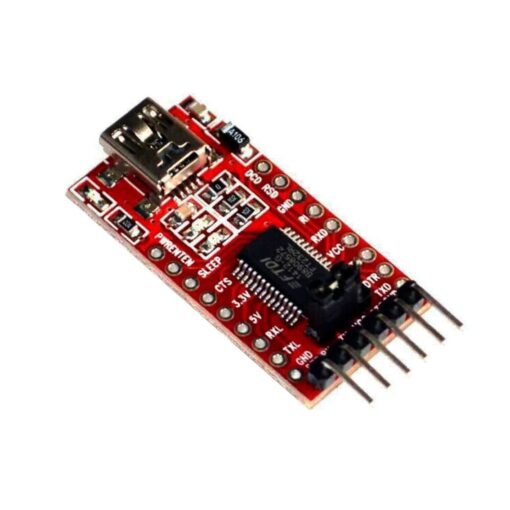

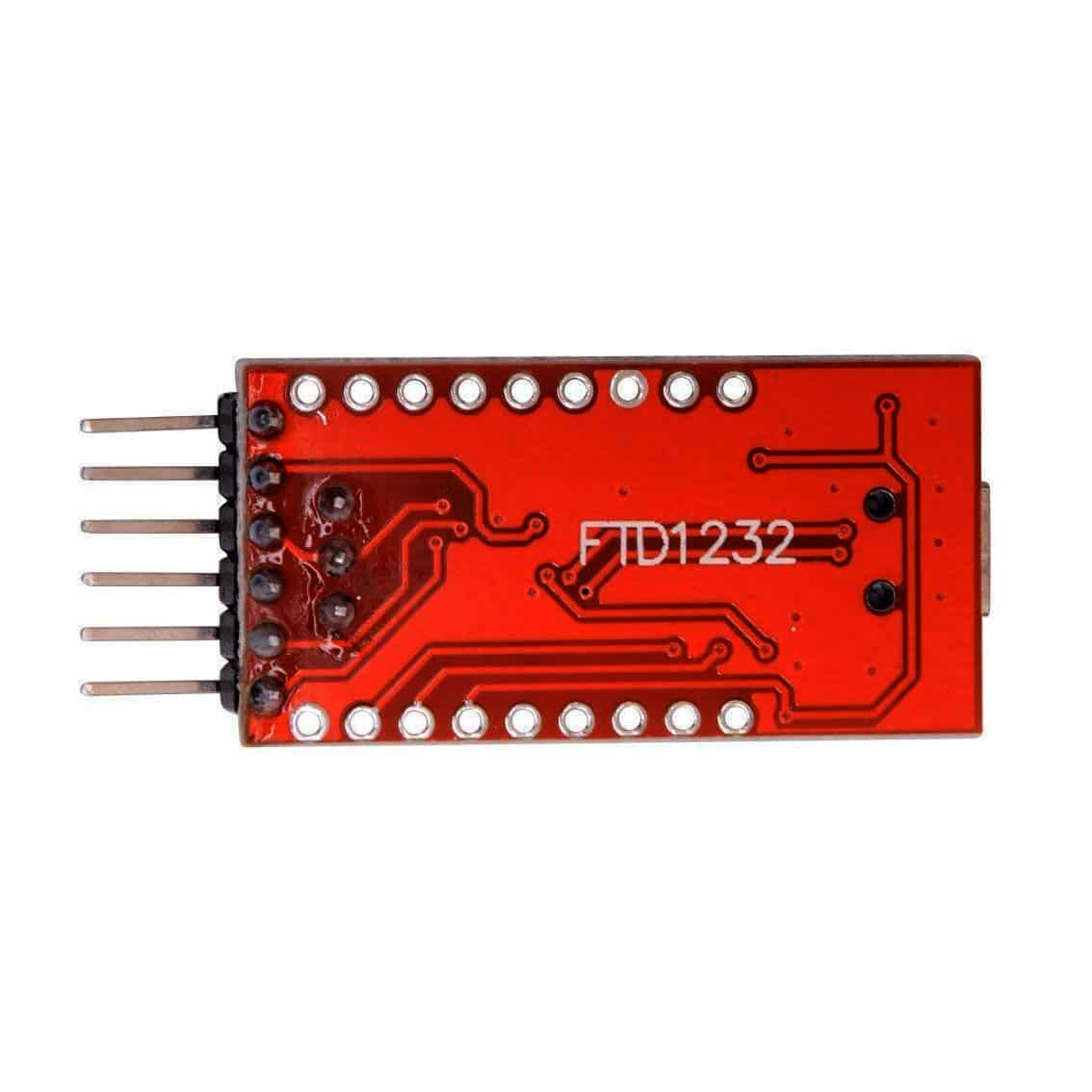

The FT232RL FTDI Mini USB to TTL Serial Converter Adapter is a compact and reliable module designed to facilitate seamless communication between USB interfaces and TTL serial devices. Utilizing the FT232RL chipset ensures stable data transfer rates ranging from 300 baud to 3 Mbaud, accommodating various serial communication needs. This adapter is particularly beneficial for programming microcontrollers, interfacing with GPS modules, and establishing serial terminals on devices like the Raspberry Pi. :contentReference[oaicite:0]{index=0}

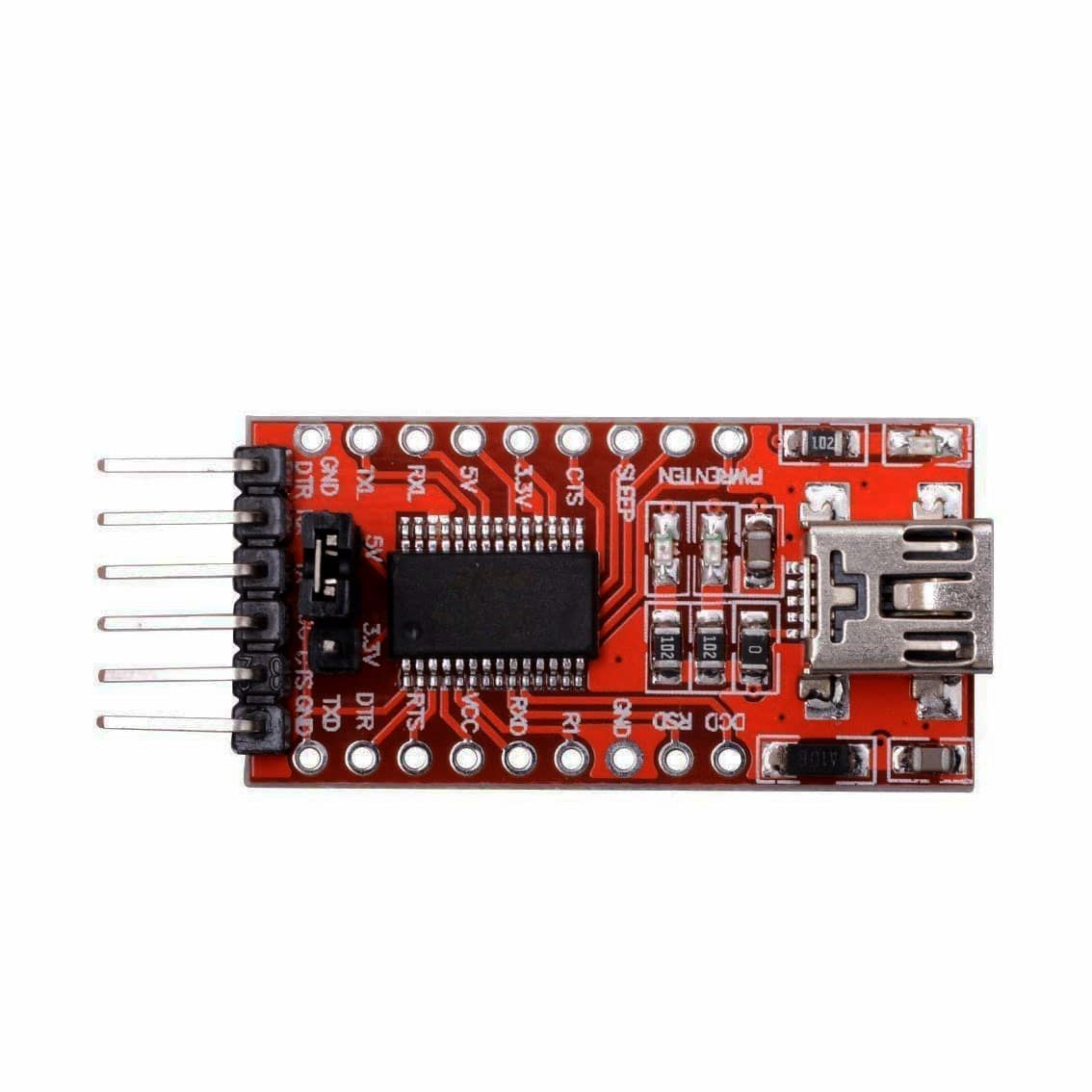

The module features a mini USB connector for easy connection to PCs and supports both 3.3V and 5V operating voltages, selectable via an onboard jumper, enhancing its versatility across different projects. It includes six pins—DTR, RXD, TXD, VCC, CTS, and GND—providing comprehensive data transmission and reception control. The integrated 500mA self-resetting fuse offers overcurrent protection, ensuring safe operation during the development and testing phases. :contentReference[oaicite:1]{index=1}
Specifications:
- Chipset: FT232RL
- Operating Voltage: Selectable 3.3V or 5V DC
- Data Transfer Rate: 300 baud to 3 Mbaud
- Connector: Mini USB
- Pins: DTR, RXD, TXD, VCC, CTS, GND
- Protection: 500mA self-resetting fuse
- Dimensions: 36mm x 18mm
Features:
- Supports both 3.3V and 5V logic levels
- Compatible with various microcontrollers and devices
- Integrated overcurrent protection for safe operation
- Compact design suitable for breadboard applications
- LED indicators for TX and RX activity
Contents:
- 1 x FT232RL FTDI Mini USB to TTL Serial Converter Adapter
