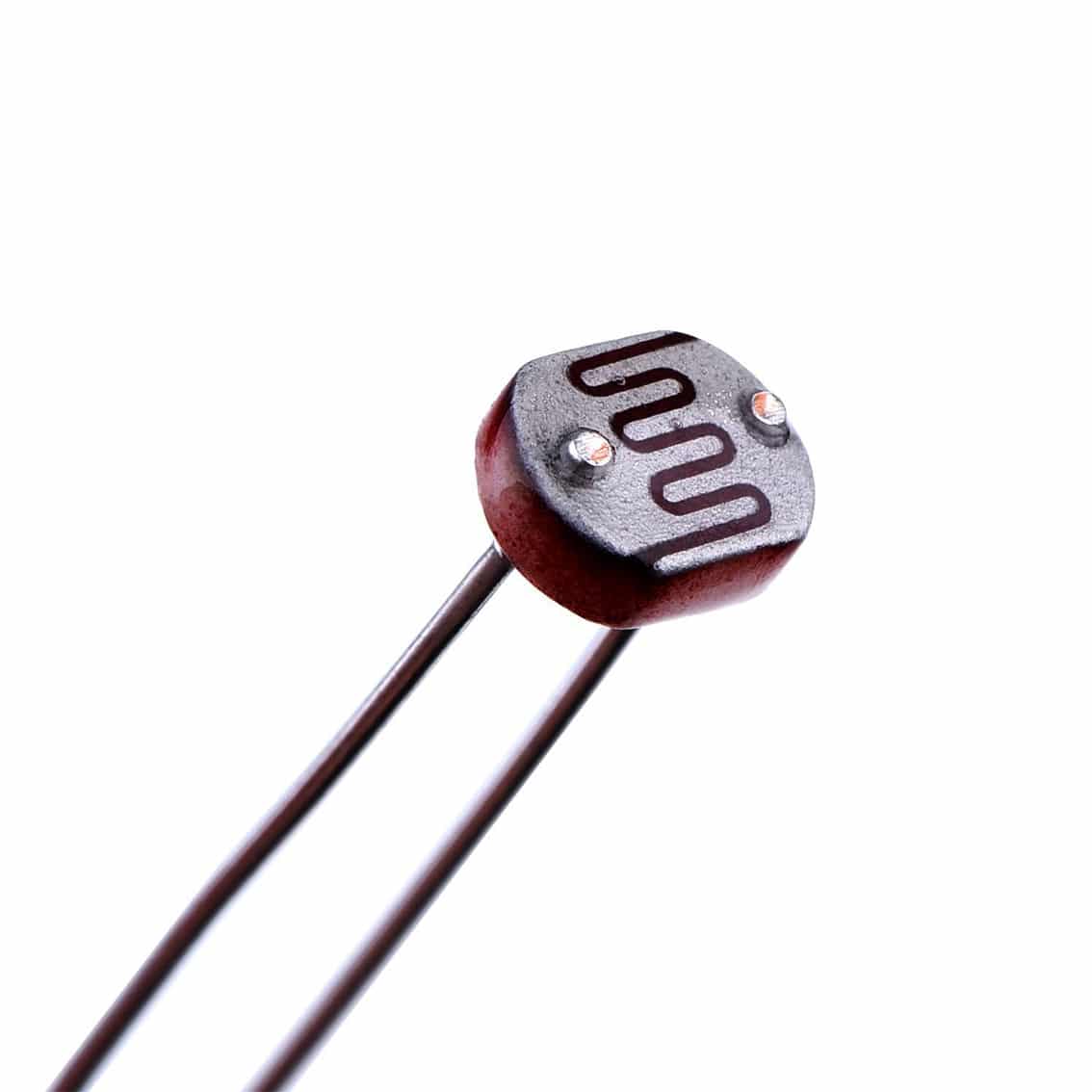

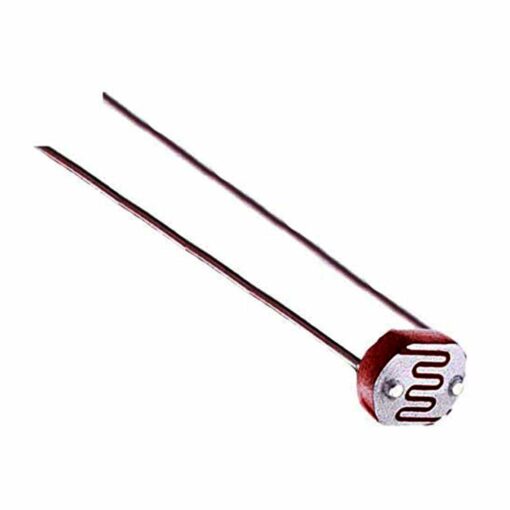

GL 5539 LDR Photoresistor / Light Dependent Resistor – Pack of 10

49 people have recently viewed this product!

GL 5539 LDR Photoresistor / Light Dependent Resistor – Pack of 10

Pack of 10 GL5539 LDRs (Light Dependent Resistors) with 5mm heads. Resistance varies with light intensity, ideal for sensors, lighting, and alarms.

$13.95

Order Within –

Availability: 44 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001445

Description:

The GL5539 LDR (Light Dependent Resistor) is a photoresistor designed to vary resistance based on the intensity of light falling on its surface. In darkness, the resistance is high, while in bright light, the resistance decreases significantly, making it an effective and simple light sensor for electronic circuits.

Encased in a compact 5mm epoxy package, the GL5539 offers reliable performance and ease of integration into PCBs, breadboards, or sensor housings. It is widely used in light detection circuits, automatic lighting systems, alarms, and DIY electronics projects. Supplied in a pack of 10, these sensors are excellent for experimentation, repairs, or educational use.

Specifications:

  • Device Type: Light Dependent Resistor (LDR)
  • Model: GL5539
  • Resistance (Dark): ~1MΩ
  • Resistance (Illuminated @ 10 lux): 5–10kΩ
  • Spectral Response: 400nm – 700nm (visible light range)
  • Peak Wavelength Sensitivity: ~540nm
  • Response Time: Rise ~30 ms, Decay ~30 ms
  • Package Size: 5mm head diameter
  • Mounting: Through-hole

Features:

  • Light-sensitive resistor with wide spectral response
  • Compact 5mm epoxy package for easy circuit integration
  • Provides variable resistance based on light intensity
  • Ideal for automatic lighting, alarms, and sensors
  • Pack of 10 for multiple projects or spares

Contents:

  • 10 x GL5539 LDR Photoresistors
Weight 0.004 kg
Dimensions 90 × 5 × 60 mm
Brand

Type

Light Resistance

Dark Resistance

Maximum Voltage

Max Power Dissipation

100mW

Spectral Peak

Response Time Up

Response Time Down

Operating Temperature

Termination

Mounting Type
