Description:

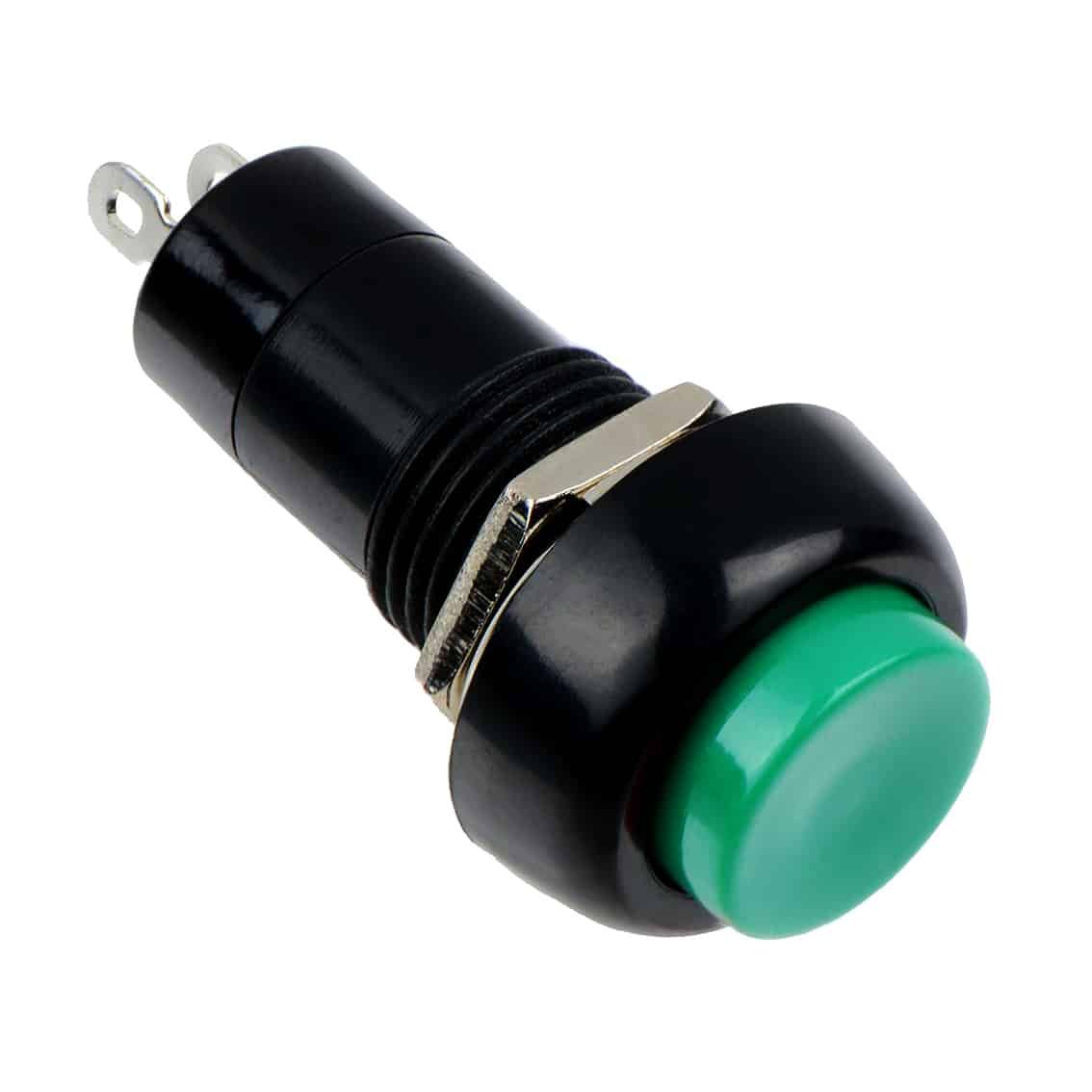

The Green Momentary Push Button Switch PBS-11 is a dependable and versatile switch for various applications. This push button switch offers momentary action, which only stays activated while pressed. It is ideal for control panels, electronic devices, household appliances, and other equipment where a temporary switch function is needed. Featuring a 12mm diameter button, this switch is easy to install and mount on panels, making it a practical choice for industrial and residential applications.
Built with high-quality materials, the PBS-11 switch ensures durability and long-lasting performance with over 100,000 mechanical life cycles. It is designed to operate efficiently in different environmental conditions, providing reliability and functionality across various settings. Available in a pack of 5, this switch set offers an economical solution for projects requiring multiple momentary switches.
Specifications:
- Model: PBS-11A
- Action Type: Momentary
- Contact Type: Normally Open (NO)
- Voltage Rating: AC 250V, 3A
- Button Diameter: 12mm
- Mounting Hole Diameter: 12mm
- Terminals: 2 pins
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 2000Vac, 50Hz for 1 min
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Operating Humidity: 45% to 85% RH
Features:
- High-quality, environmentally friendly materials
- Easy installation with 12mm mounting diameter
- Durable with a long operational life
- Provides a momentary switch action
- Suitable for a wide range of applications
Contents:
- 5 x Green Momentary Push Button Switch PBS-11
