GY-NEO6M V2 GPS Module with EEPROM MWC & Antenna

31 people have recently viewed this product!

GY-NEO6M V2 GPS Module with EEPROM MWC & Antenna

The GY-NEO6M V2 GPS Module with EEPROM MWC & Antenna is a high-performance GPS module featuring the u-blox NEO-6M chip, suitable for navigation and positioning applications. It includes an external ceramic antenna, EEPROM for data storage, and supports UART TTL communication.

$20.95

Order Within –

Availability: 27 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003265

You May Also Like...

Description:

The GY-NEO6M V2 GPS Module with EEPROM MWC & Antenna is an advanced GPS module designed for accurate and reliable navigation and positioning. Featuring the u-blox NEO-6M GPS chip, this module offers exceptional performance in various applications, including drones, autonomous vehicles, and other navigation systems. The integrated EEPROM allows for configuration data storage even when powered off, ensuring persistent settings.

This GPS module supports various communication interfaces, including UART TTL, and is compatible with numerous flight control systems such as APM and MWC. The included ceramic antenna enhances signal reception, while the built-in backup battery maintains GPS data during brief power interruptions. The module is easy to integrate with microcontrollers like Arduino and Raspberry Pi, making it a versatile addition to any project requiring precise location data.

Specifications:

  • Model: GY-GPS6MV2
  • Chip: u-blox NEO-6M
  • Operating Voltage: 3.3V to 5V DC
  • Communication Interface: UART TTL
  • Baud Rate: 9600 bps (default)
  • EEPROM for configuration data storage
  • Backup Battery: Yes
  • LED Signal Indicator: Yes
  • Navigation Sensitivity: -161 dBm
  • Position Accuracy: 2.5m
  • Capture Time: Cold start 27s, Hot start 1s
  • Antenna: External U.FL ceramic antenna

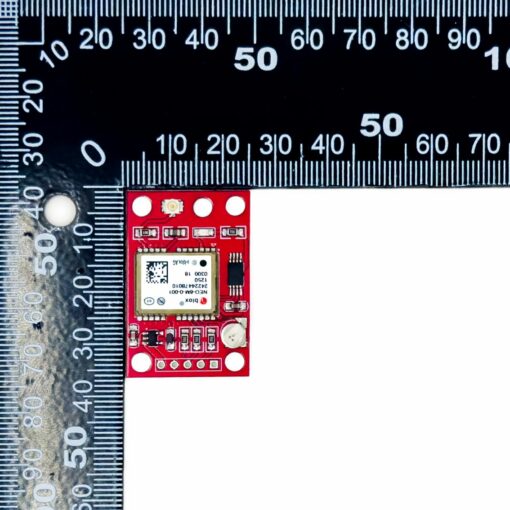

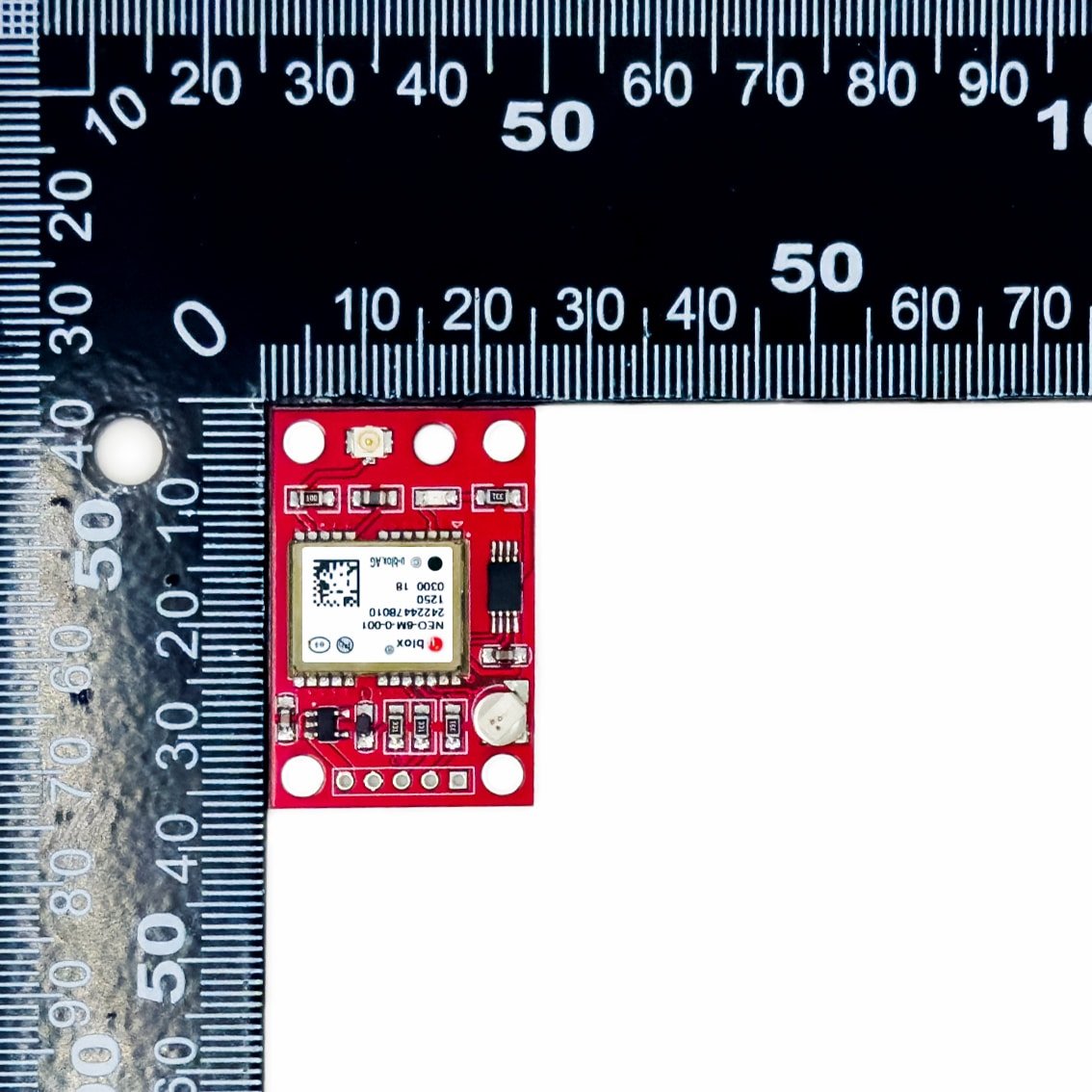

  • Dimensions: 36 x 26 mm
  • Weight: 22g
  • Operating Temperature: -40°C to 85°C

Features:

  • High sensitivity and low power consumption
  • Supports NMEA, UBX Binary, and RTCM protocols
  • Compatible with multiple flight control systems
  • Easy to integrate with various microcontrollers
  • Includes a ceramic antenna for improved signal reception
  • EEPROM for persistent configuration storage
  • Backup battery to maintain data during power outages

Contents:

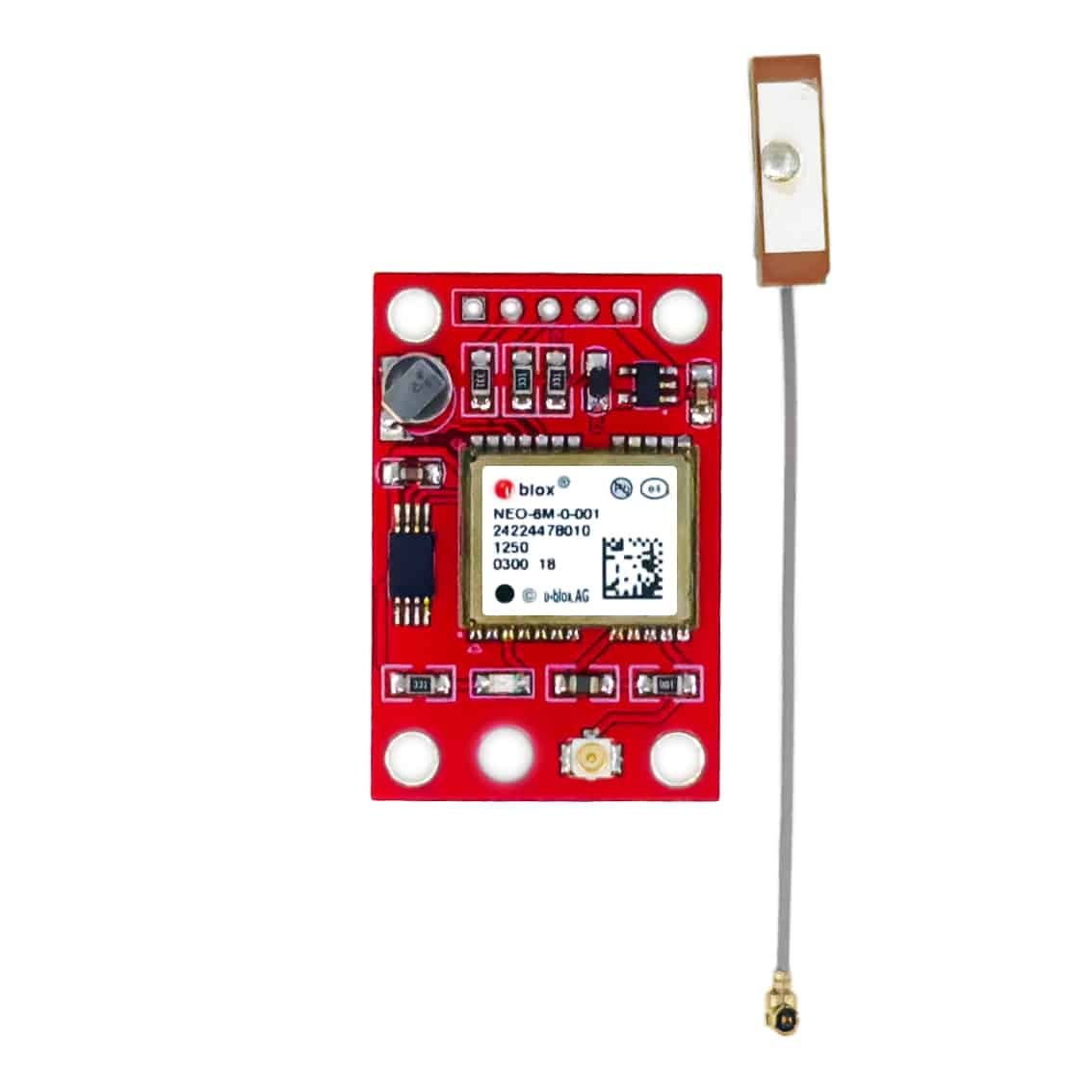

  • 1 x GY-NEO6M V2 GPS Module
  • 1 x Ceramic Antenna
Weight 0.006 kg
Dimensions 100 × 60 × 5 mm
Brand

Type

,

Chipset

Wireless Board Attributes

,

Operating Voltage

Baud Rate

Navigation Sensitivity

Position Accuracy

Antenna
