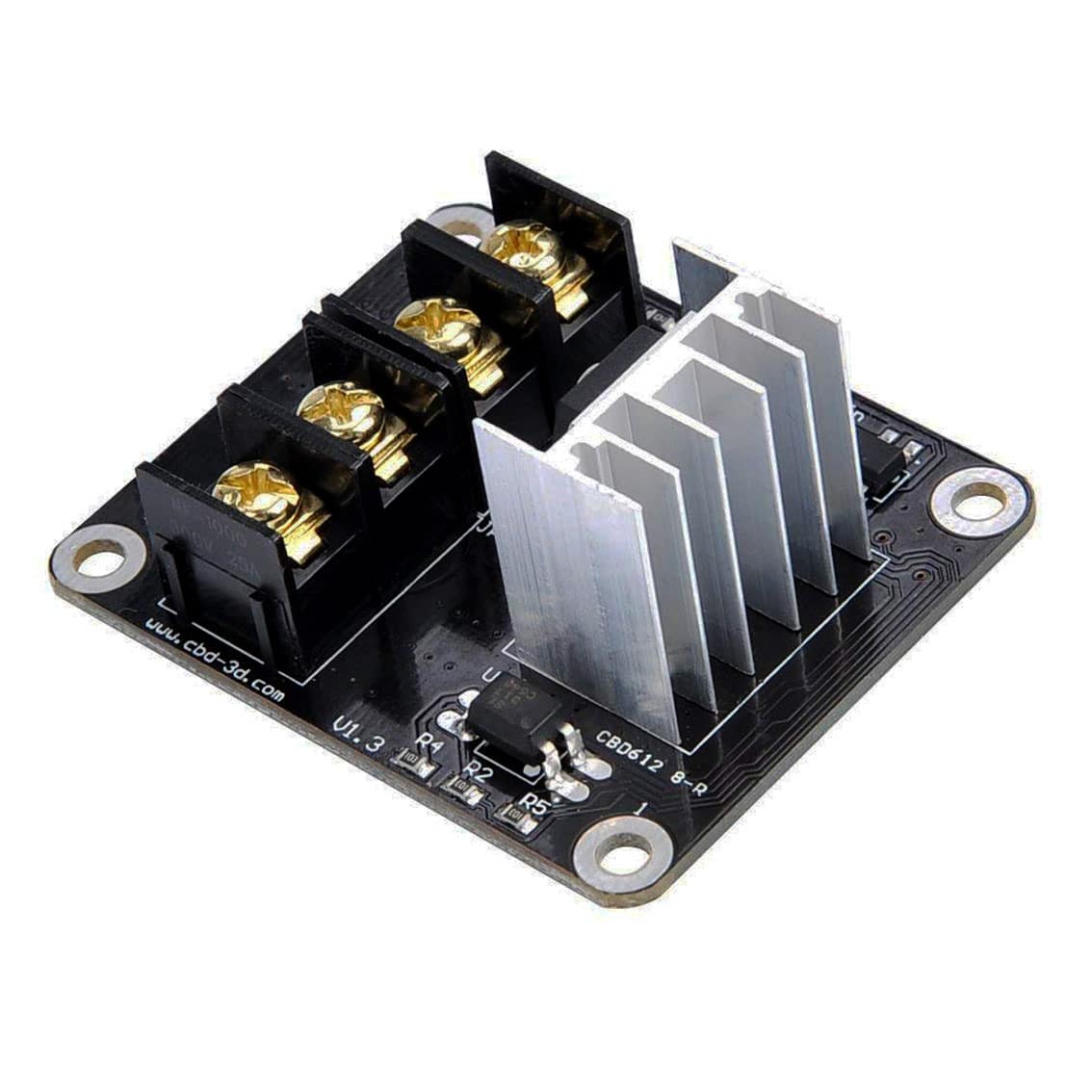

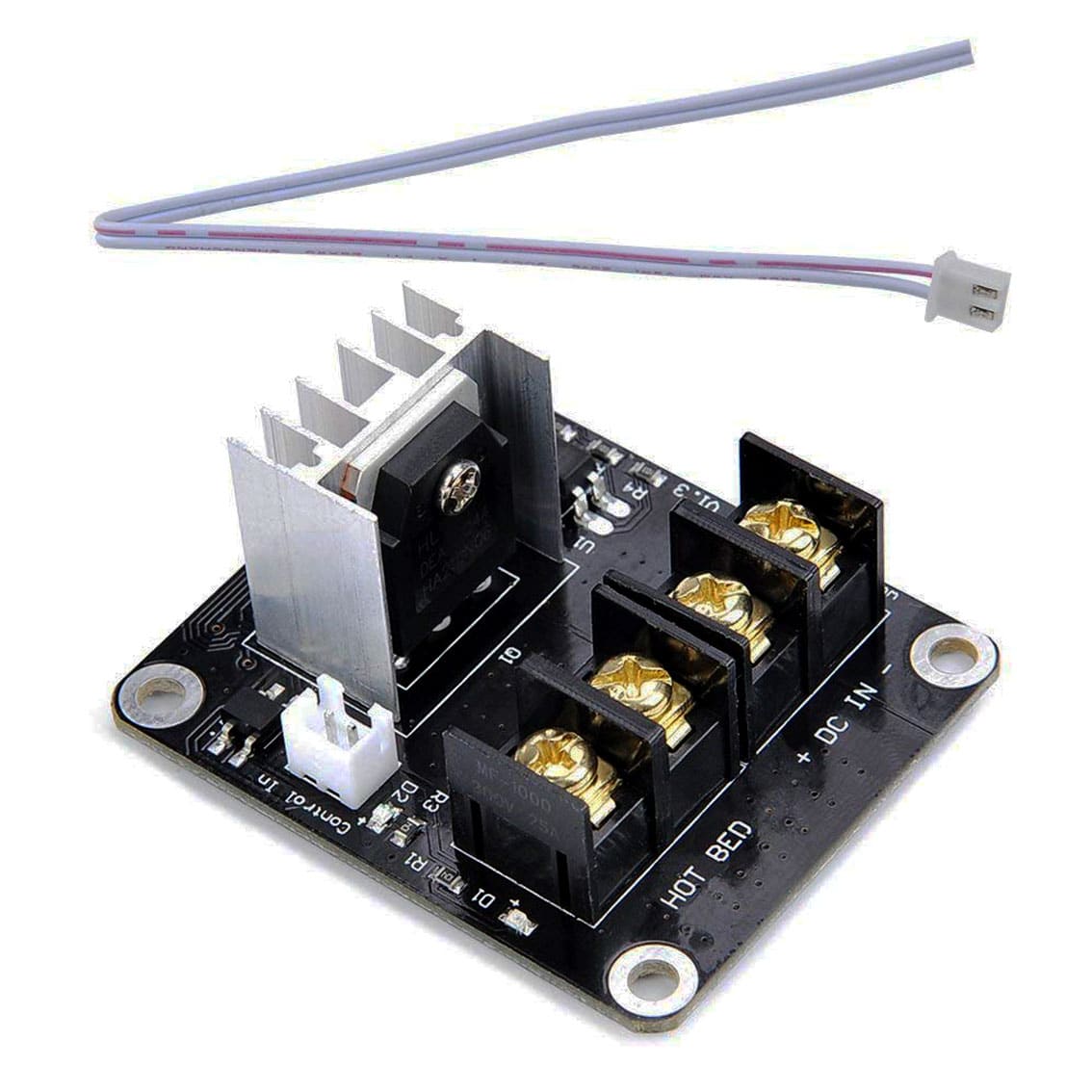

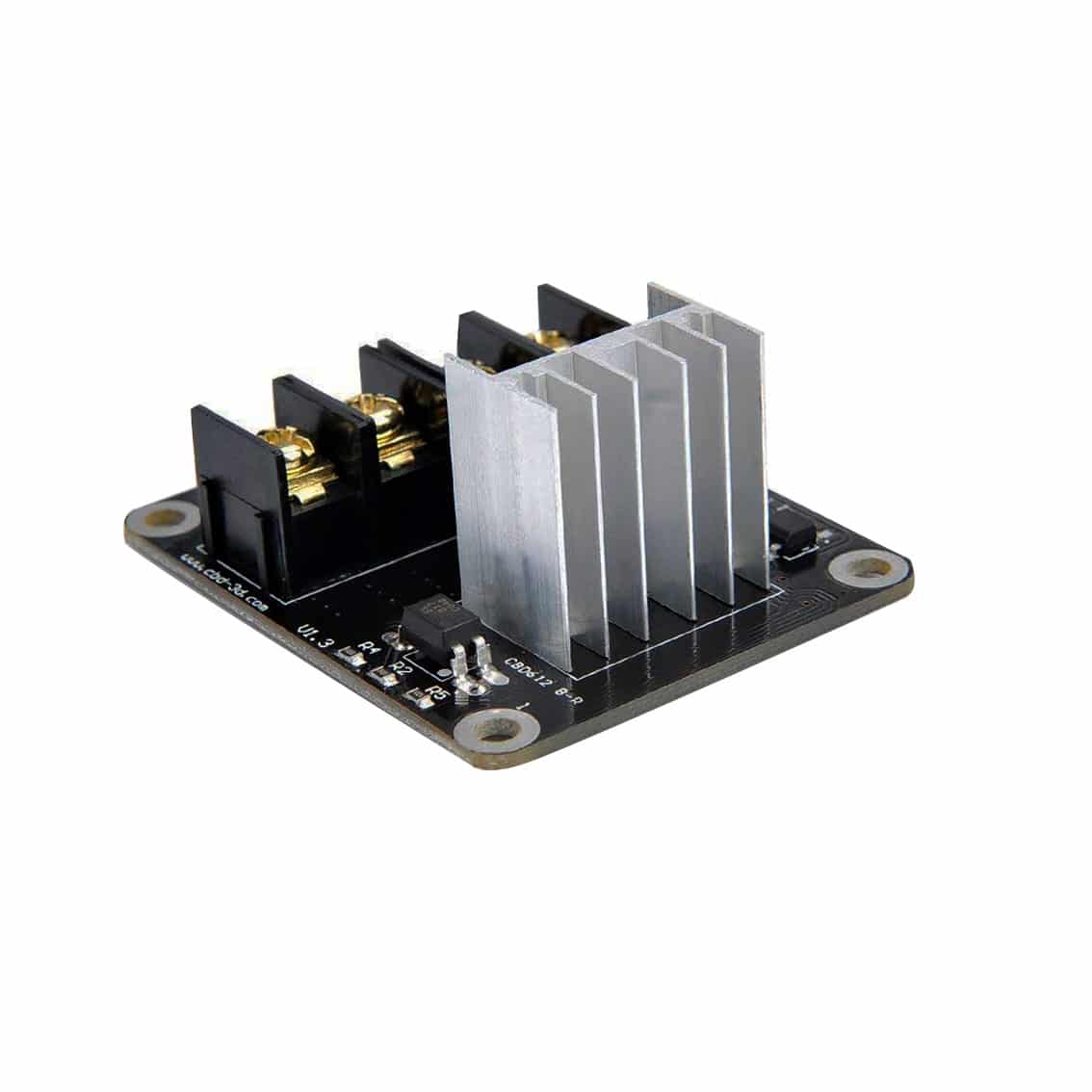

Heat Bed Power Expansion Board Module

The Heat Bed Power Expansion Board Module is a general add-on heated bed power supply for 3D printers.


Availability: 40 in stock

Buy now, pay later available.

SKU PHI1071336 Category Tags ,


The Heat Bed Power Expansion Board Module is a general add-on heated bed power supply for 3D printers.

The Heat Bed Power Expansion Board Module can be used with Chitu motherboards and other open 3D printer motherboards. With a maximum current of 25A, this module will your 3D printer’s heat bed become more effective by exceeding most standard heat bed power supplies.

This module is based on power MOSFET and will allow PID control of the heated bed.



  • Operating voltage: 12V – 50V (12V – 24V DC recommended)
  • Maximum current: 25A
  • Dimensions: 60mm x 23mm x 31mm
  • Mounting holes: 3.2mm diameter



  • 1 x Heat Bed Power Expansion Board Module
  • 1 x Cable pack
