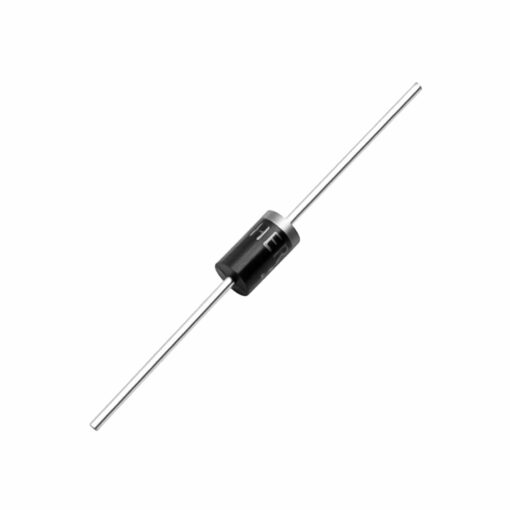

HER508 1000V 5A Rectifier Diode - Pack of 15

The HER508 is a 5A fast switching rectifier diode with a voltage rating of 1000V. Enclosed in a DO-27 housing.


Availability: 69 in stock

Buy now, pay later available.

SKU PHI1051683 Category Tags ,


The HER508 is a 5A fast switching rectifier diode with a voltage rating of 1000V. Enclosed in a DO-27 housing.

The HER508 has a maximum forward voltage of 1.7V and peak reverse current of 10uA at 1000V.
The HER series of rectifier diodes are fast switching, low reverse current, low forward voltage, high surge current and reliable.


  • Voltage: 1000V
  • Current: 5A
  • Housing: DO-27
  • Forward voltage: 1.7V @ 5A
  • Reverse current: 10uA @ 1000V
  • Operating temperature: -65?C ? 150?C
  • Lead: Axial
  • Mounting position: Any
  • Quantity: 15 pieces



  • 15 x HER508 1000V 5A Rectifier Diode
