Description:

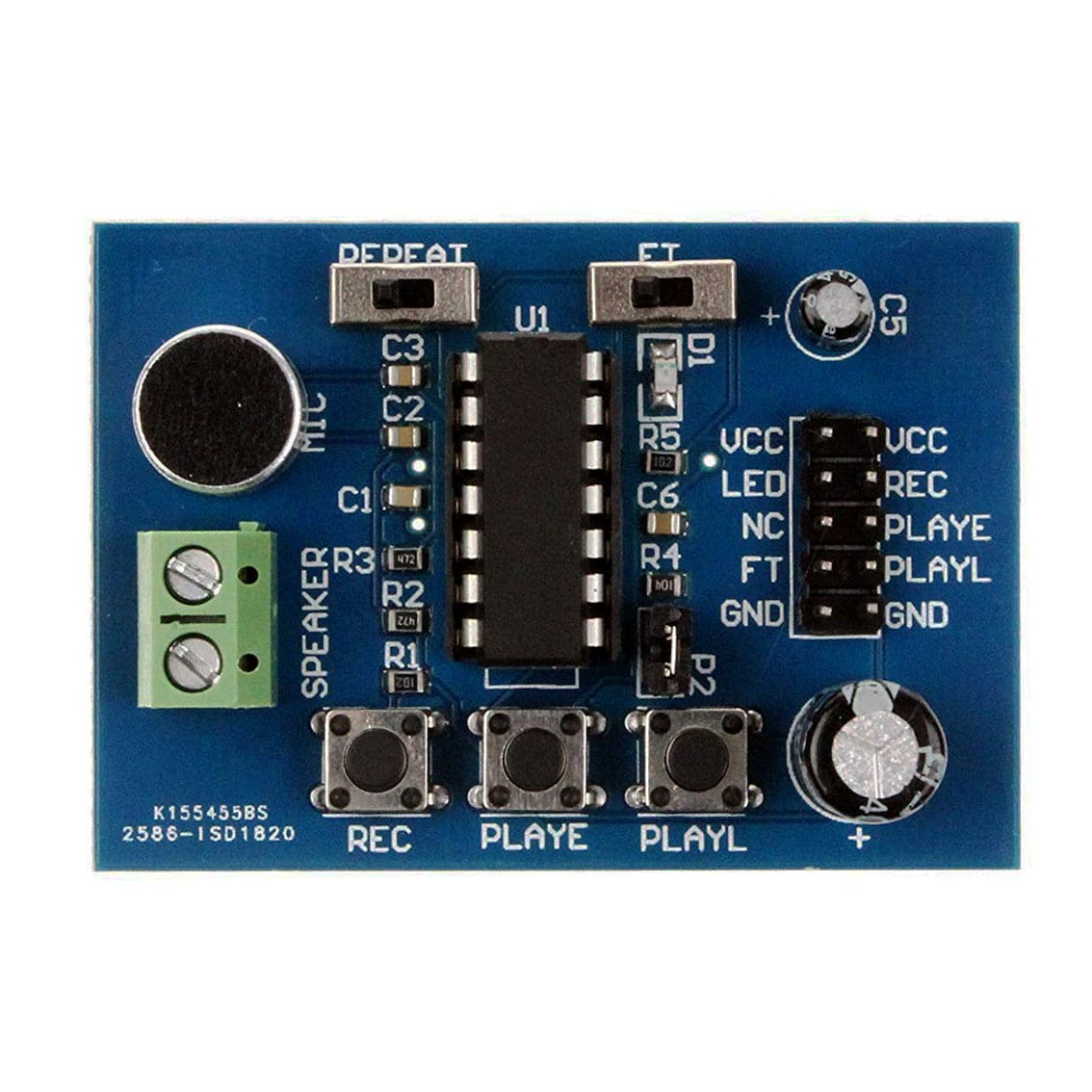

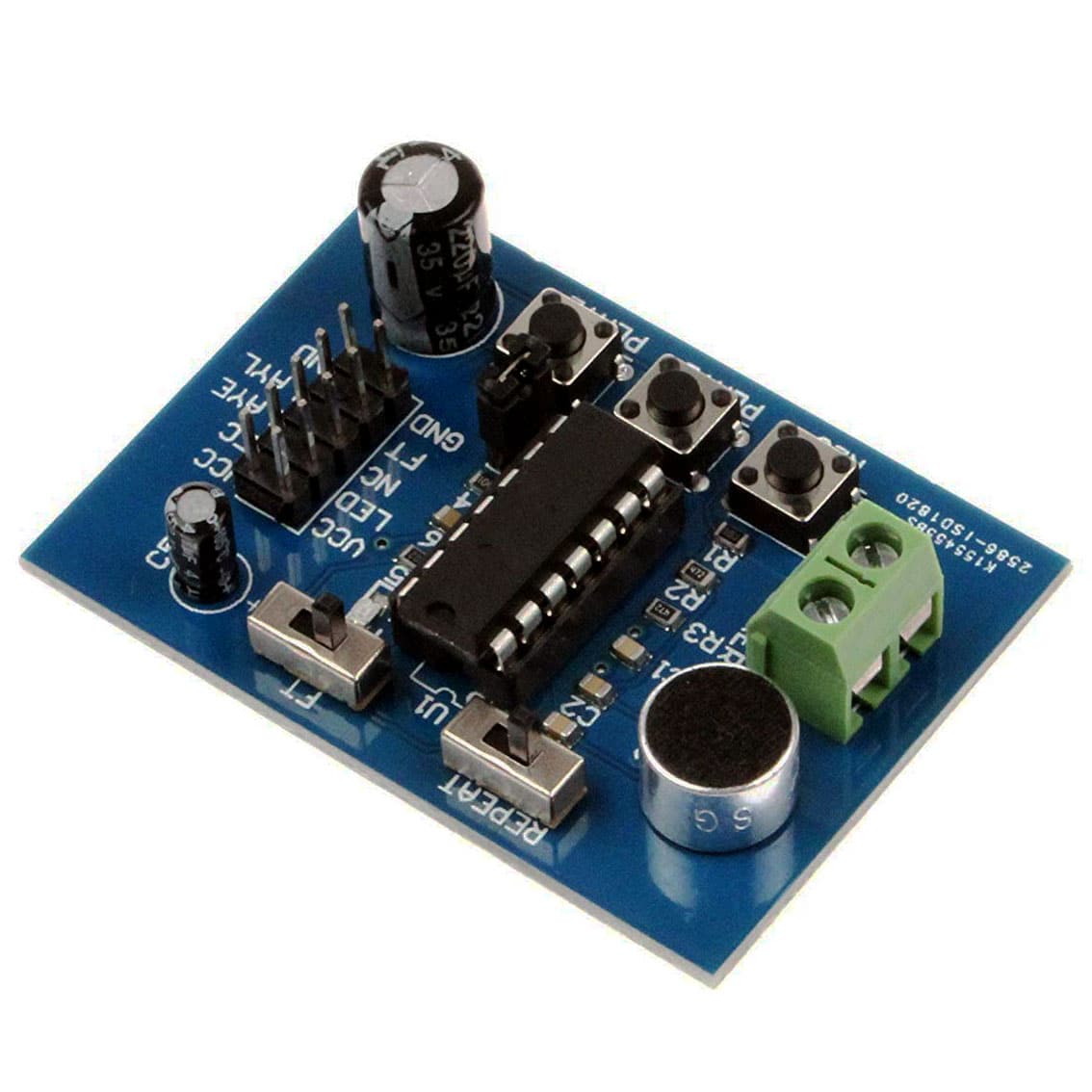

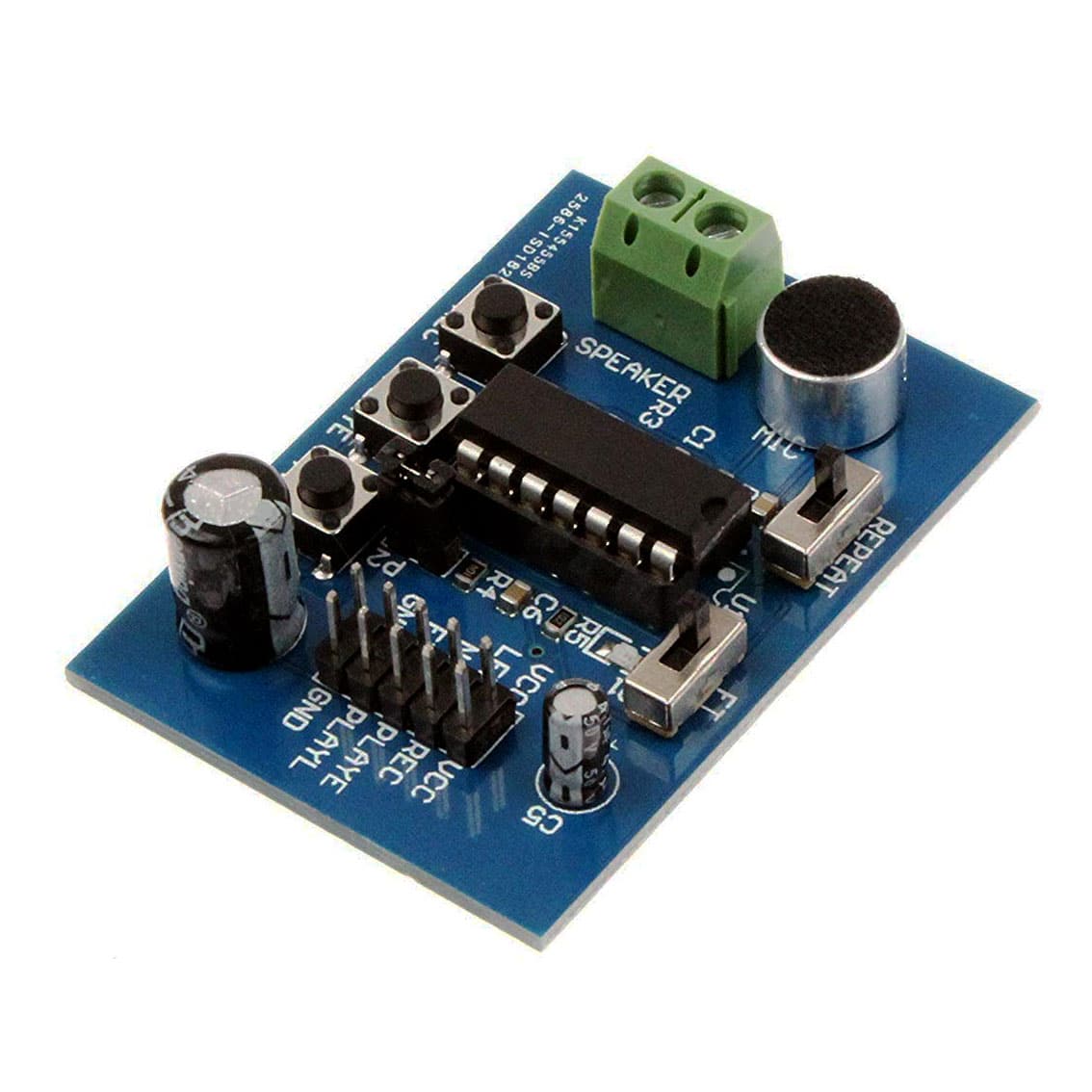

The ISD1820 Voice Board Module is a compact and versatile solution for recording and playing back audio messages. It utilizes the ISD1820 IC and offers non-volatile storage, allowing recorded messages to be retained even after power is removed. The module supports recording durations ranging from 8 to 20 seconds, which are adjustable via an onboard resistor. Thus, it is suitable for various applications such as voice prompts, alarms, and interactive projects.
Equipped with an onboard microphone, the ISD1820 module enables direct recording without external components. It features push-button controls for recording and playback and pin headers for integration with microcontrollers like Arduino or Raspberry Pi. The module includes a built-in 8Ω speaker driver capable of driving speakers directly and offers both edge-triggered and level-triggered playback modes for flexible operation.
Specifications:
- Operating Voltage: 2.4V – 5.5V DC
- Recording Duration: 8 to 20 seconds (adjustable via resistor)
- Sampling Frequency: 4.0kHz to 12.0kHz
- Onboard Microphone: Electret condenser microphone
- Speaker Output: Drives 8Ω speakers directly
- Playback Modes: Edge-triggered and level-triggered
- Dimensions: 54mm x 38mm
Features:
- Non-volatile storage retains messages without power
- Adjustable recording duration via onboard resistor
- Push-button controls for manual operation
- Pin headers for microcontroller integration
- Built-in 8Ω speaker driver for direct speaker connection
Contents:
- 1 x ISD1820 Voice Board Module
