KSE13003 700V 1.5A NPN Transistor – Pack of 10

  • PHI1052781 – KSE13003-2 700V 1.5A NPN Transistor – Pack of 10 02
  • PHI1052781 – KSE13003-2 700V 1.5A NPN Transistor – Pack of 10 02


The KSE13003 is a bipolar 700V 1.5A NPN transistor in a TO-220 case. read more

or 4 fortnightly payments of $2.74 with Afterpay More info


Collector Base Voltage:

Collector Current:

Collector Emitter Voltage:

view all details




- +



0 reviews

30 in stock

- +

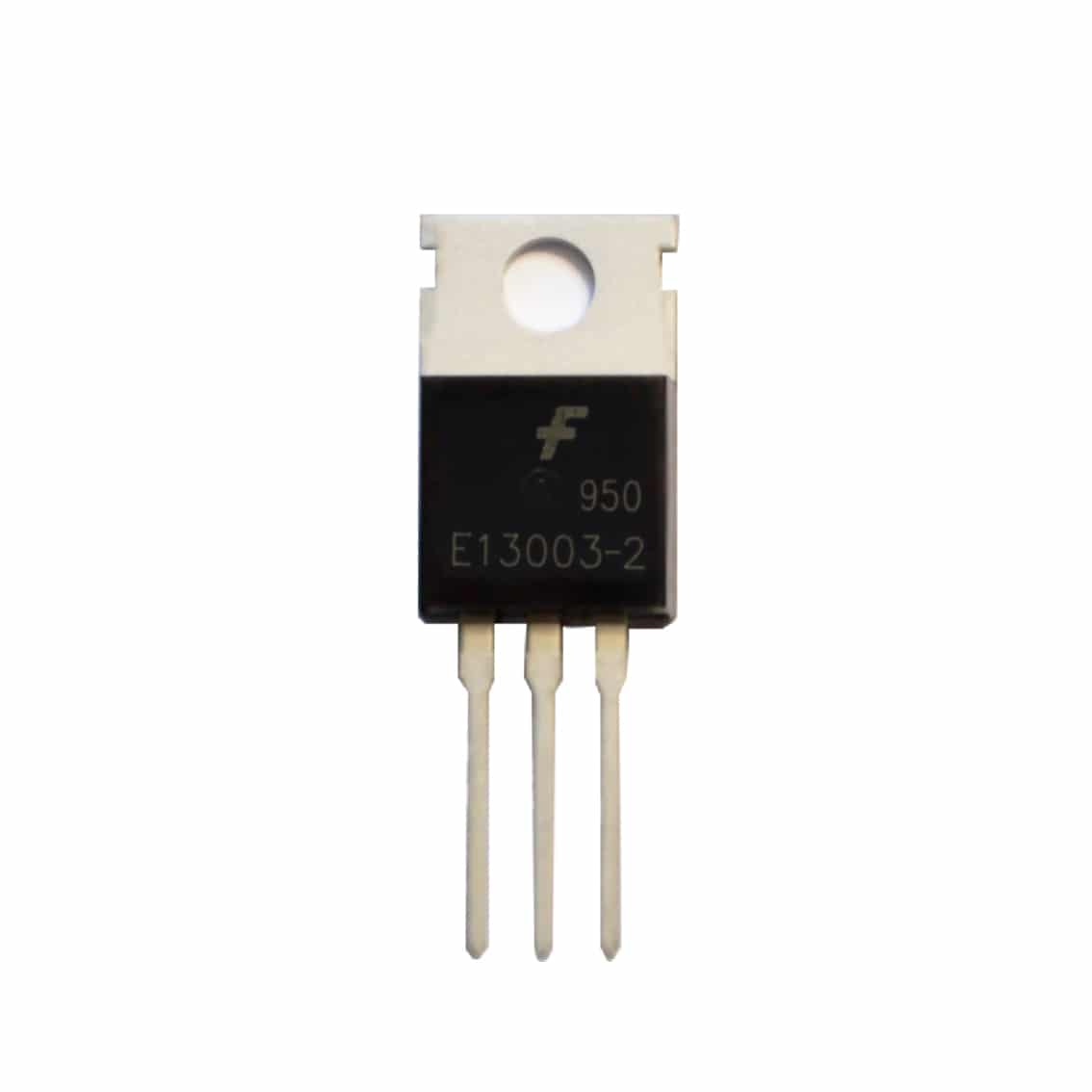

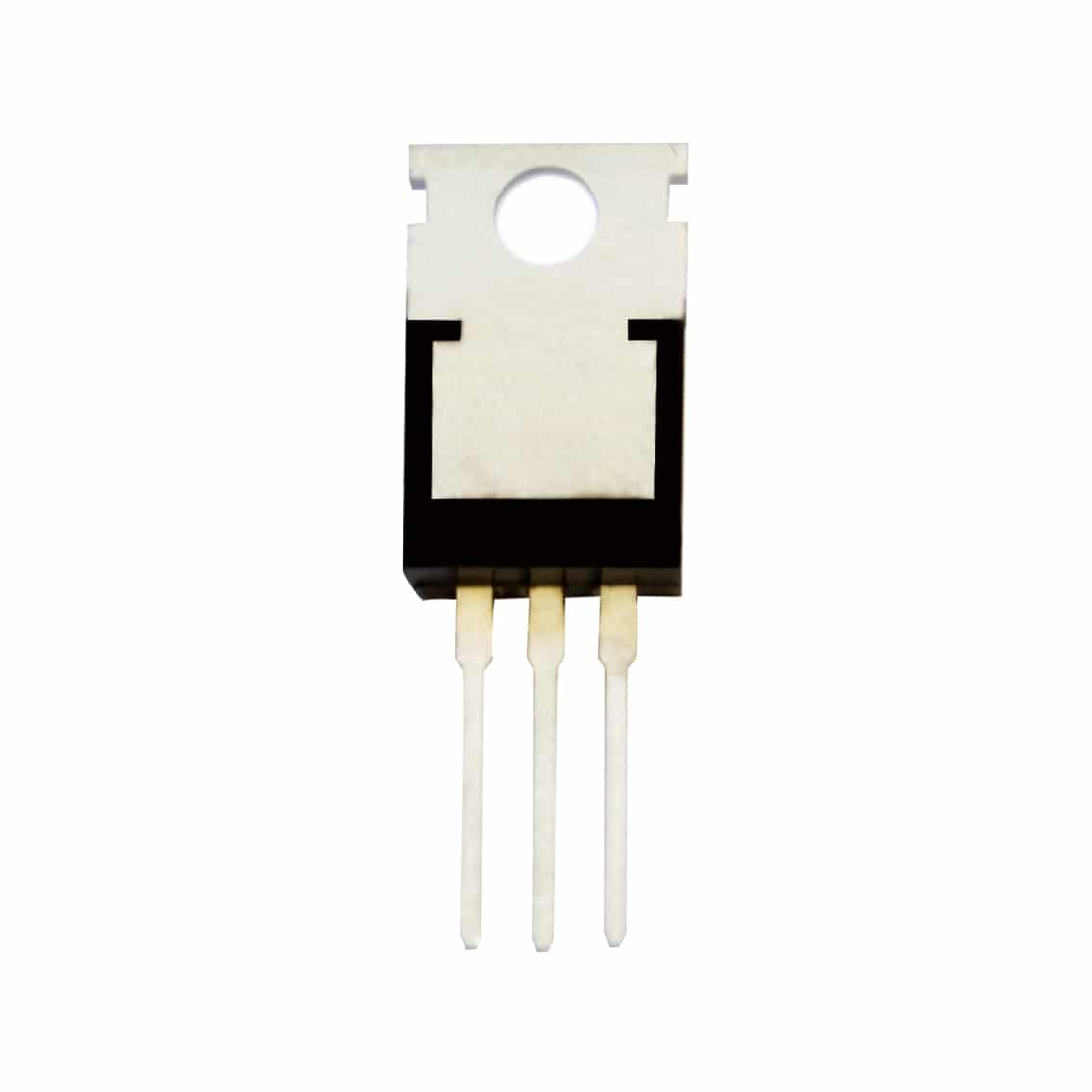

The KSE13003 is a bipolar 700V 1.5A NPN transistor in a TO-220 case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



  • Collector Emitter Voltage: 400 V
  • Collector Base Voltage: 700 V
  • Emitter Base Voltage: 9 V
  • Collector Current: 1.5 A
  • Collector Dissipation: 30 W
  • Mounting Style: Through Hole
  • Package / Case: TO-220
  • Transistor Polarity: NPN
  • Configuration: Single
  • Operating Temperature: -65 ⁰C – 150 ⁰C
  • Dimensions: 16mm x 10mm x 4.5mm x 13.1mm



  • 10 x KSE13003 700V 1.5A NPN Transistor
