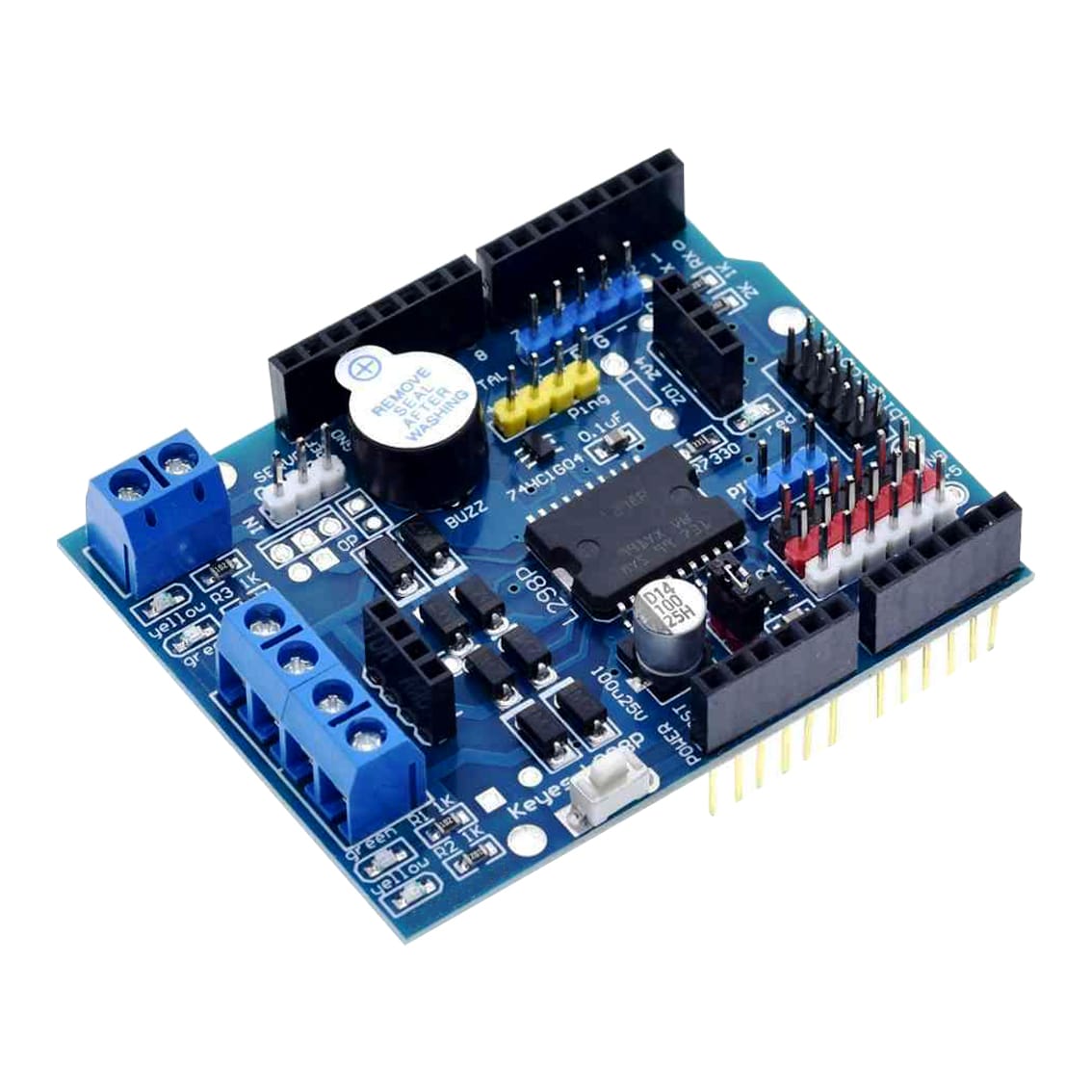

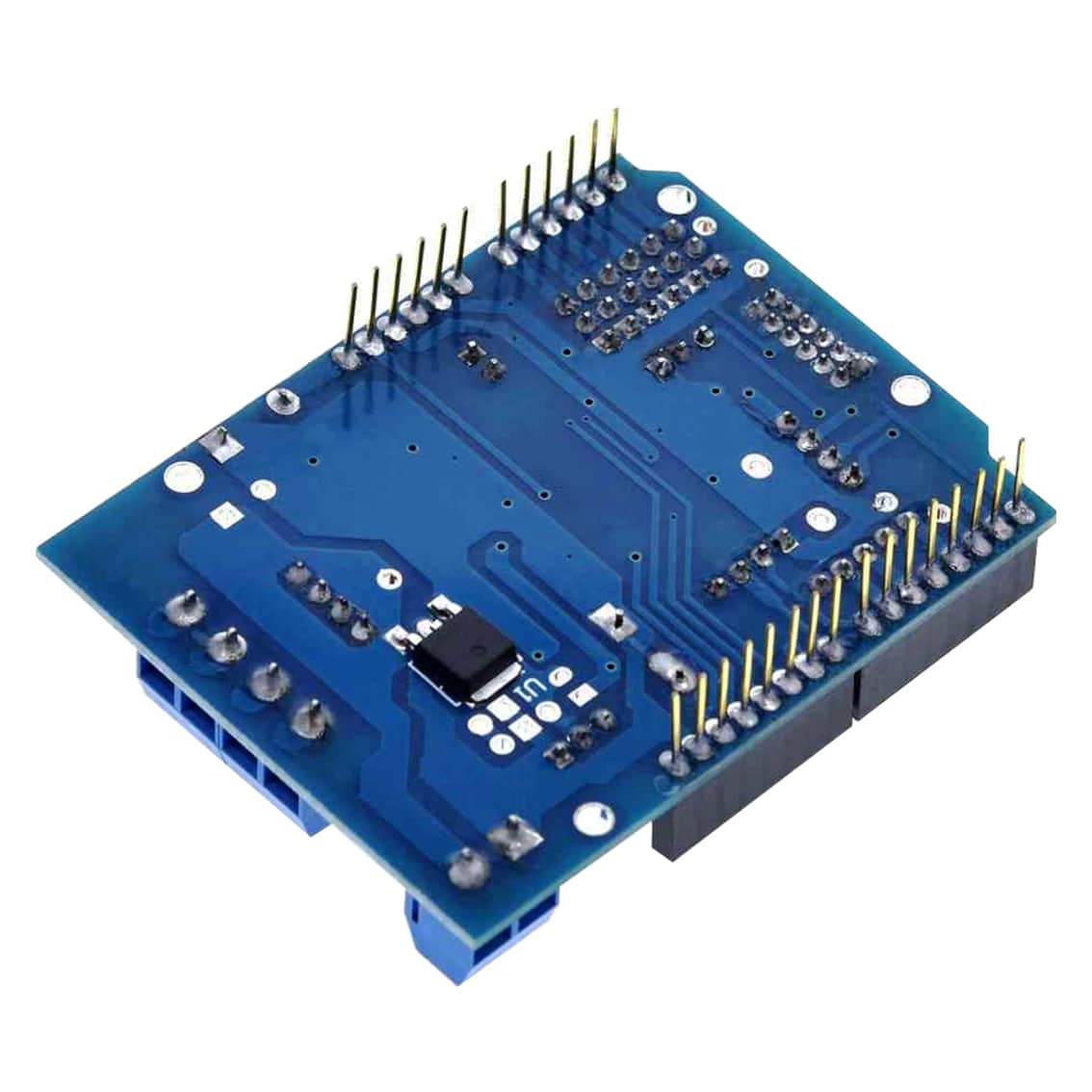

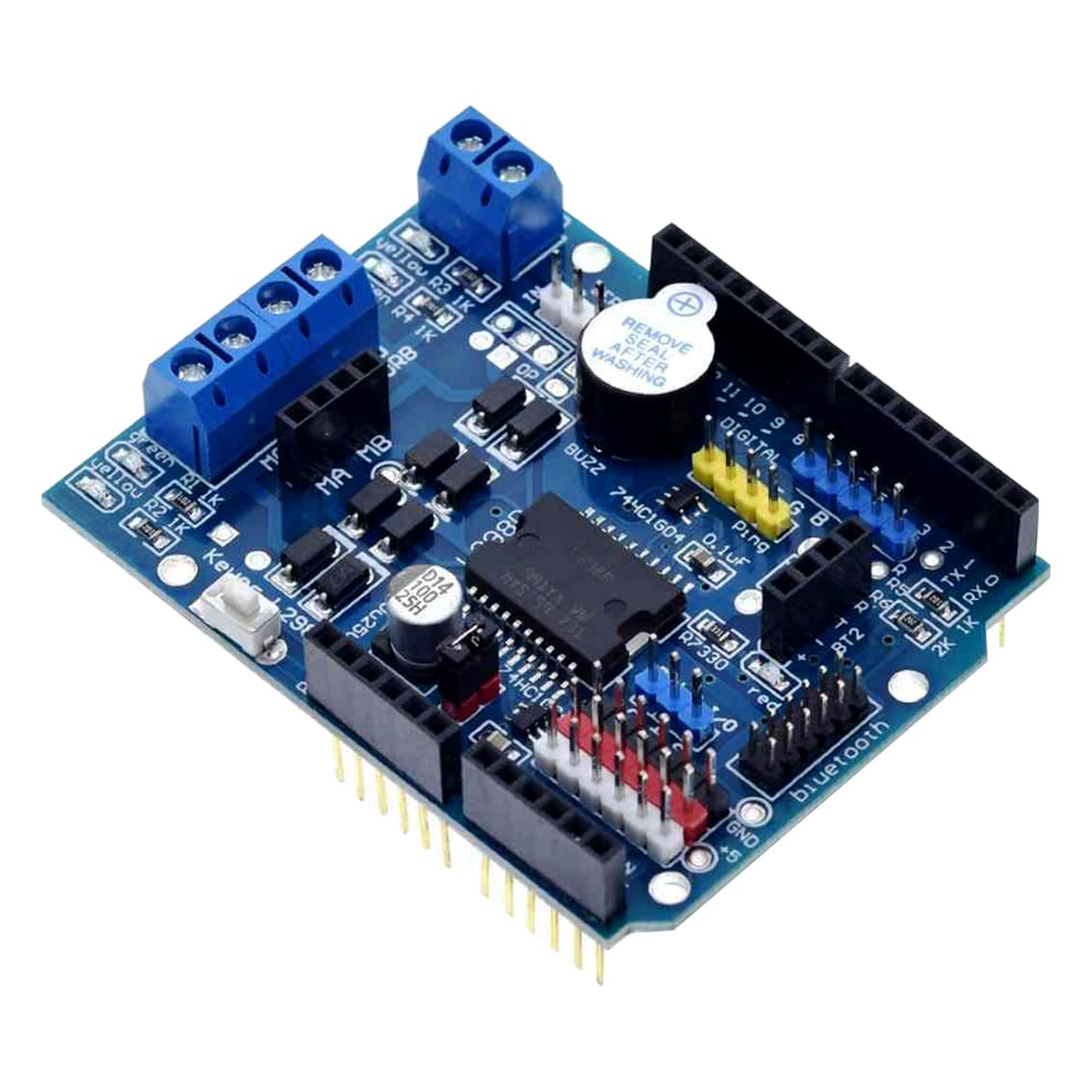

L298P PWM Motor Drive Expansion Shield

The L298P PWM Motor Drive Expansion Shield can drive two DC motors up to 2A.


Availability: 27 in stock

Buy now, pay later available.

SKU PHI1012276 Categories , Tags ,


The L298P PWM Motor Drive Expansion Shield can drive two DC motors up to 2A.

Speed and direction of the motors are controlled by using PWM. The Arduino pins are exposed on this shield for easier connection to other devices.



  • Logical input voltage VD: 5V
  • Drive input voltage: VIN 6.5 -12V, PWR IN 4.8 -24V
  • Logical working current Iss: ≤ 36mA
  • Drive working current Io: ≤ 2A
  • Maximum power dissipation: 25W (T= 75°C)
  • Control signal input electric level:
    • High-level:2.3V≤ Vin ≤ 5V
    • Low-level: -0.3 V ≤ Vin ≤ 15V



  • 1 x L298P PWM Motor Drive Expansion Shield
