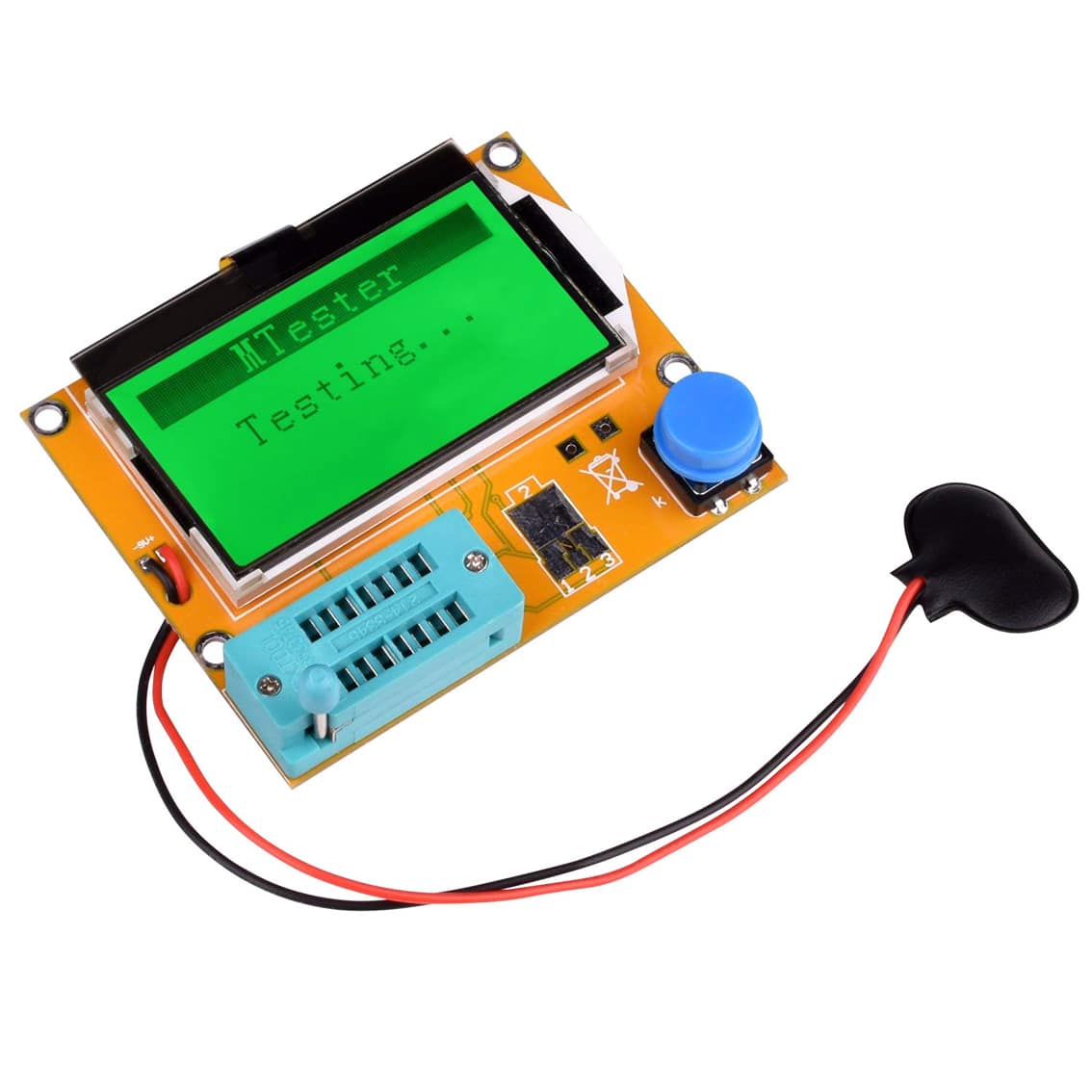

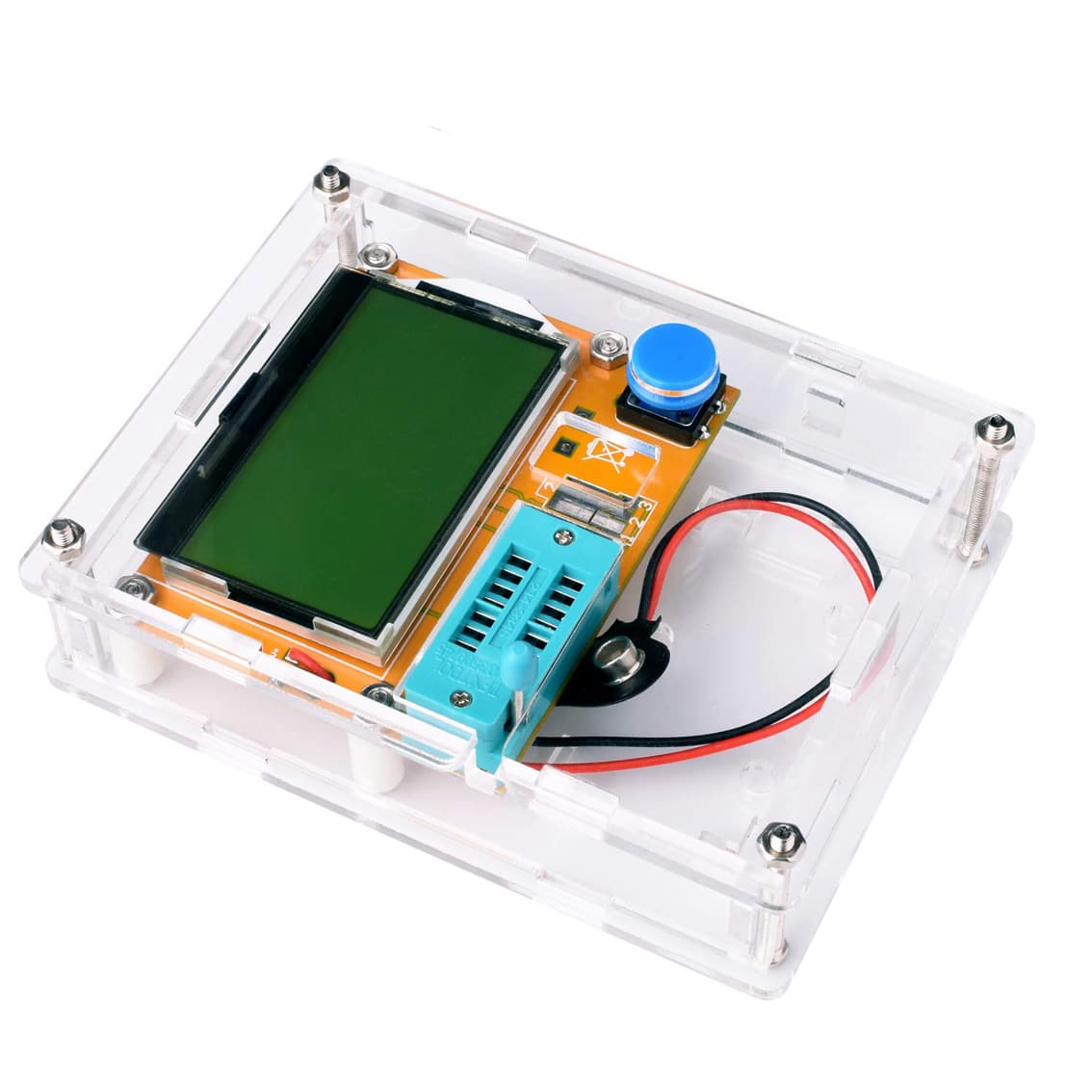

The LCR-T4 Digital Component Tester with Protective Case – 12846 LCD Display is an advanced multi-function tester designed to accurately identify and measure a wide range of electronic components. Ideal for engineers, technicians, and electronics hobbyists, it supports automatic detection of transistors, diodes, resistors, capacitors, and more. Thanks to the high-contrast 128×64 LCD display, results are presented clearly and in detail.
Moreover, this tester can characterise components such as MOSFETs, IGBTs, SCRs, and triacs, offering detailed parameters including pinout, gain, leakage, and threshold voltage. With a user-friendly interface and protective enclosure, the LCR-T4 ensures durability and ease of use, whether in a lab or on the field. Its auto power-off function extends battery life, making it a practical addition to any toolkit.
Importantly, the device supports single-button operation, streamlining the testing process and eliminating the need for complex setup. This, paired with its broad test range, allows for efficient troubleshooting and prototyping. Furthermore, the robust case protects the unit during transport or storage, preserving its longevity.
Whether you are assembling circuits or repairing electronic devices, the LCR-T4 Digital Component Tester is a reliable diagnostic tool that improves accuracy and productivity. It combines versatility with precision, making it an essential instrument for anyone working with discrete components.
Specifications:
Model: LCR-T4 Digital Component Tester
Display: 128×64 LCD screen with backlight
Testable Components: Resistors, capacitors, inductors, diodes, bipolar transistors, MOSFETs, thyristors, SCRs, and more
Measurement Range:
Resistors: 0.1Ω to 50MΩ
Capacitors: 25pF to 100mF
Inductors: 0.01mH to 20H
Automatic component detection and identification
Battery Powered: 9V battery (not included)
Single-button operation for ease of use
Auto power-off function to conserve energy

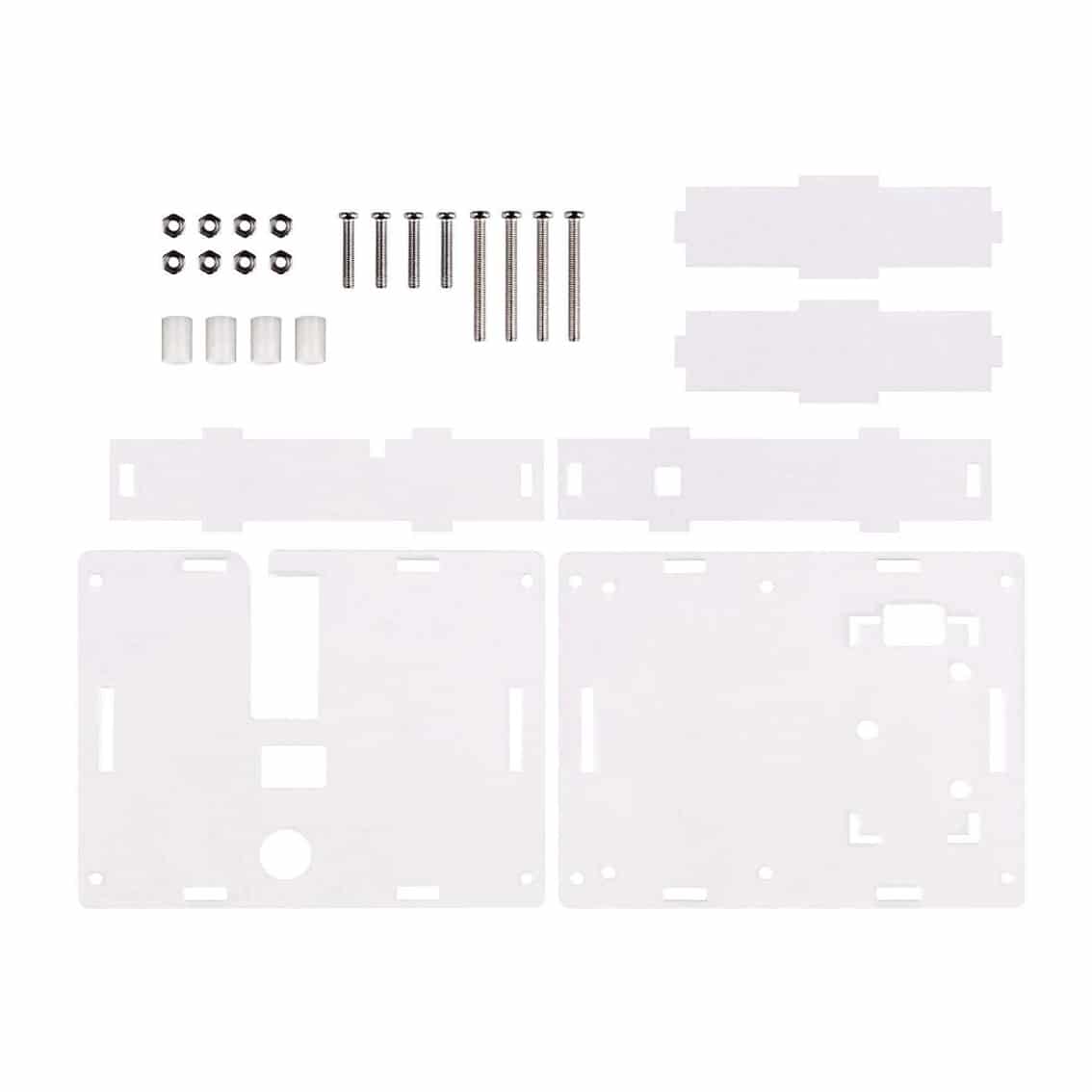

Protective acrylic case included
Dimensions: Approx. 70mm x 90mm x 25mm
Features:
High-resolution 128×64 LCD display with backlight for improved readability
Protective acrylic enclosure for enhanced durability
Automatic detection of a wide array of electronic components
Displays pin configuration and parameters such as hFE, Vth, and ESR
Capable of detecting zener diodes up to 5.1V
Supports PWM signal output and frequency measurements
