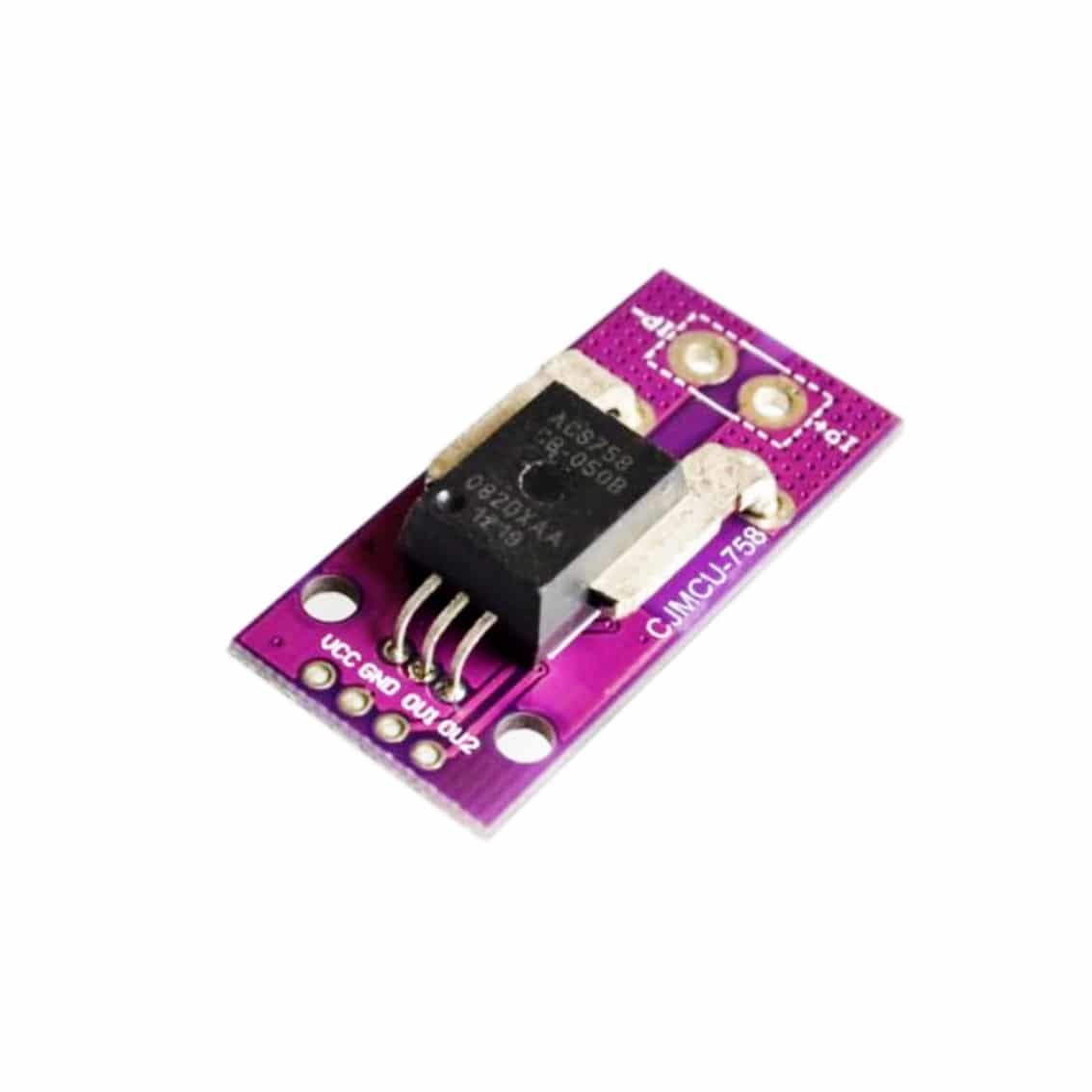

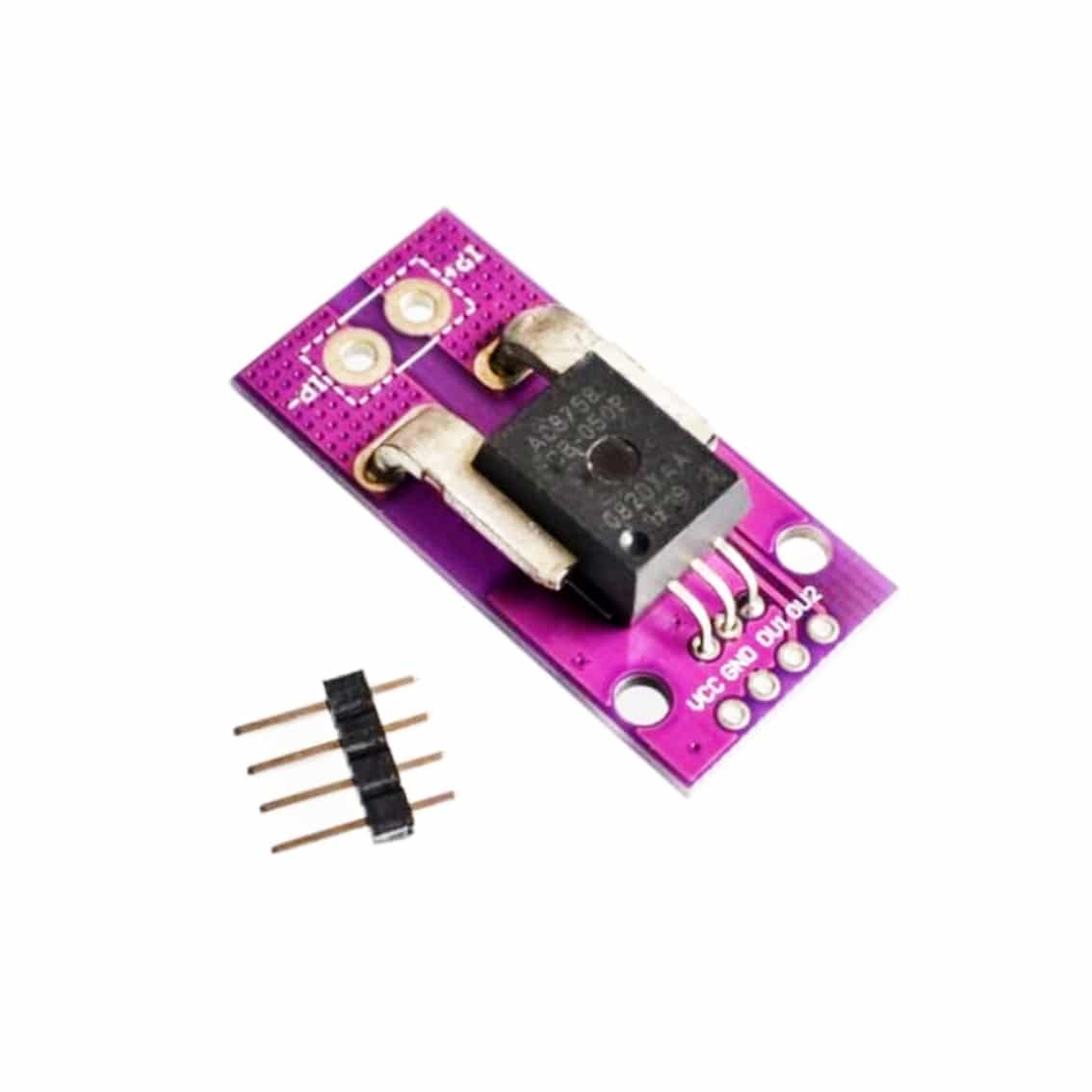

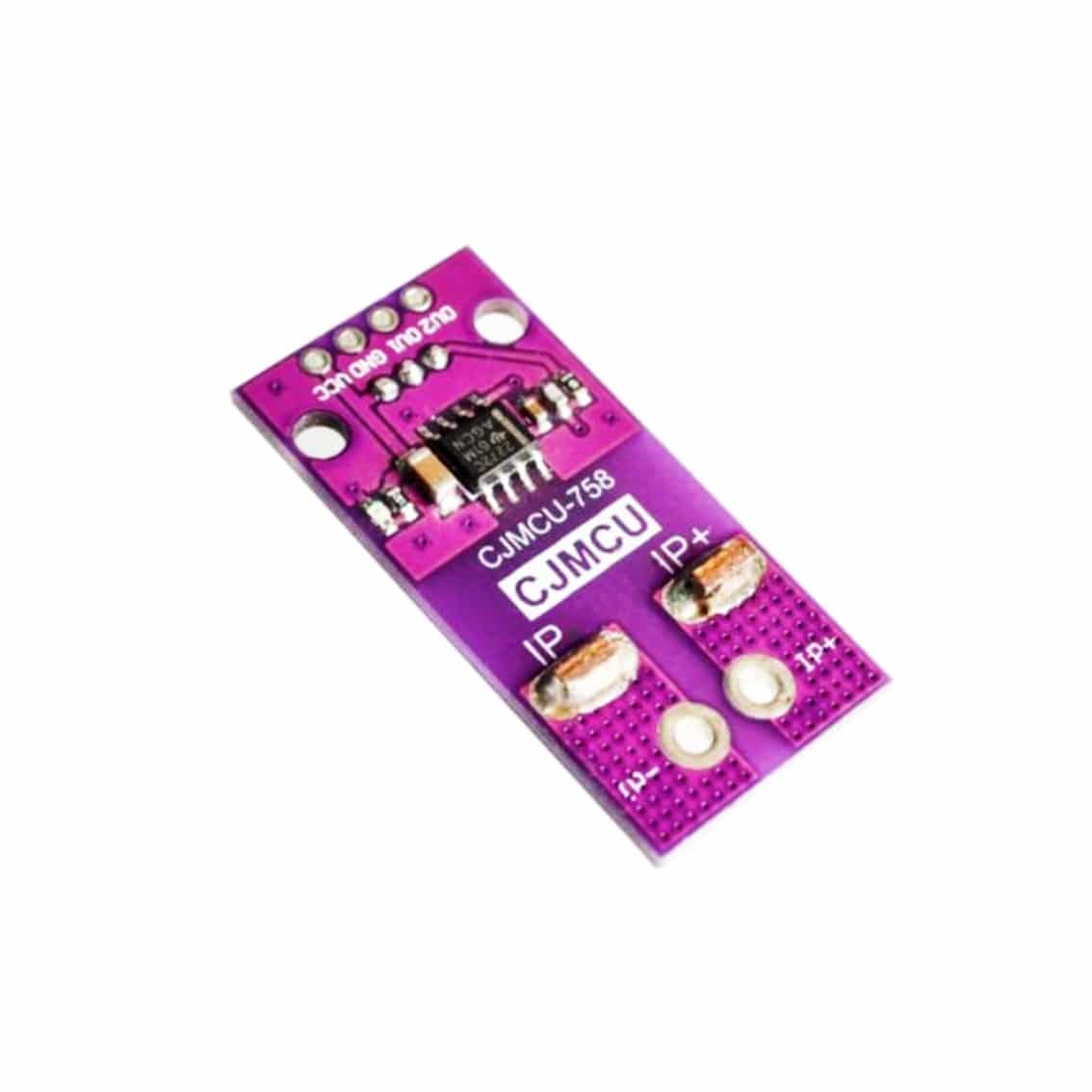

Linear Hall Effect Current Sensor Module – ACS758LCB-050B-PFF-T

The Linear Hall Effect Current Sensor Module uses hall effect as a way of measuring the amount of current flowing in a circuit.

$21.95

Availability: 22 in stock

Buy now, pay later available.

SKU PHI1002465 Category Tag
PHI1002465

Description:

The Linear Hall Effect Current Sensor Module uses the hall effect as a way of measuring the amount of current flowing in a circuit.

This powerful module can be used to measure up to 50 A of current with a microcontroller by outputting voltage proportional to the current flowing in a circuit.



Features:

  • Integrated shield- greatly reduces capacitive coupling from the current conductor to die due to high dV/dt signals.
  • Integrated shield- prevents offset drift in high-side, high-voltage applications.
  • Total output error improvement through gain and offset trim over temperature.
  • Small package size, with easy mounting capability.
  • Monolithic Hall IC for high reliability.
  • Output voltage proportional to AC or DC currents.
  • Factory-trimmed for accuracy.
  • Extremely stable output offset voltage.
  • Nearly zero magnetic hystereses.



Specifications:

  • Maximum Supply Voltage: 5.5 V
  • Minimum Supply Voltage: 3 V
  • Maximum Operating Current: 10 mA
  • Operating Temperature Range: -40 to 150 degrees Celsius



Contents:

  • 1 x Linear Hall Effect Current Sensor Module – ACS758LCB-050B-PFF-T
