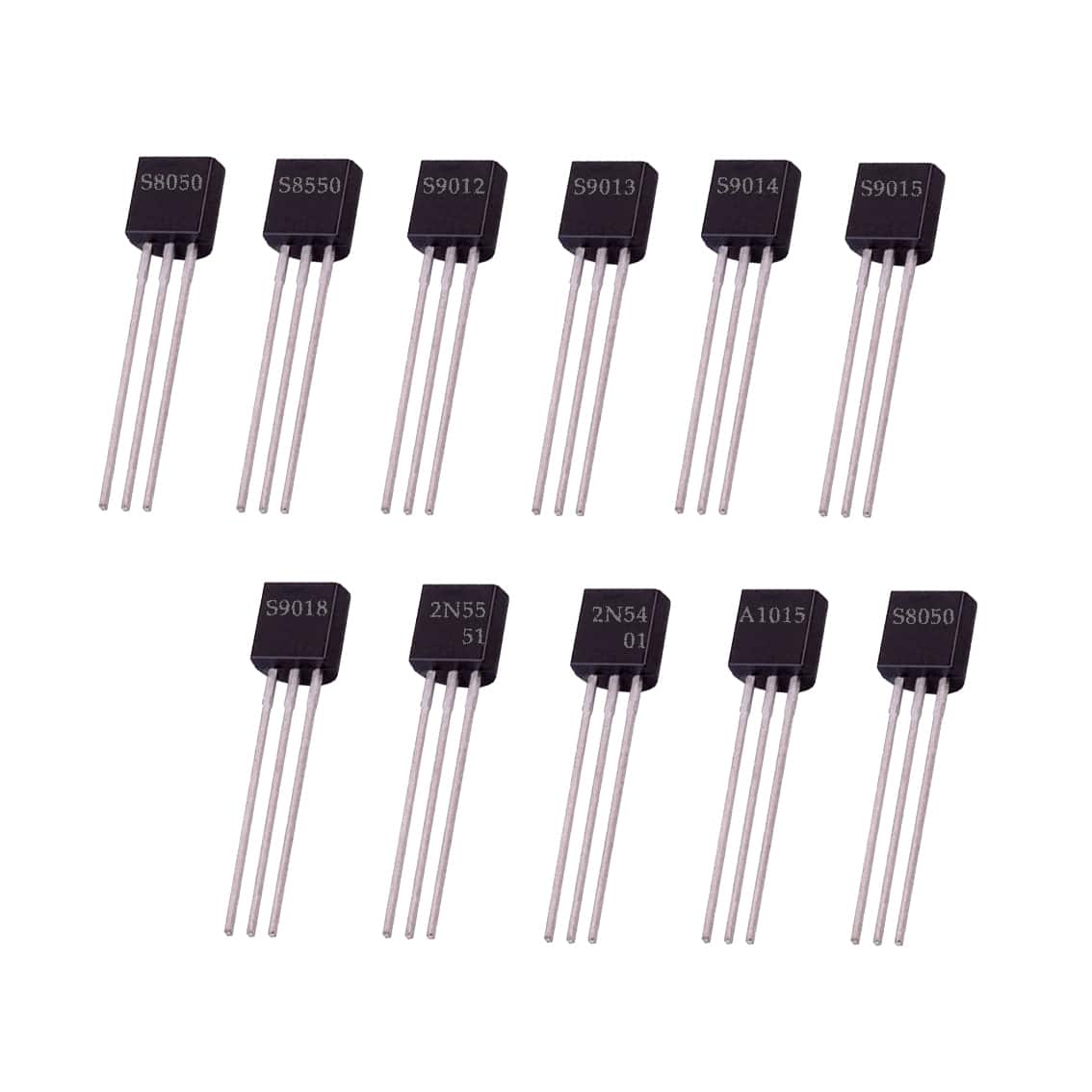

Low Power Transistor Assortment Kit – 11 Values – Pack of 110

21 people have recently viewed this product!

Low Power Transistor Assortment Kit – 11 Values – Pack of 110

This kit consists of 11 different value low power transistors, with 10 of each value.

The values are: S8050, S8550, S9012, S9013, S9014, S9015, S9018, 2N5551, 2N5401, A1015, C1815

$14.95

Order Within –

Availability: 49 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001516

Description:

This kit consists of 11 different value low power transistors, with 10 of each value.

The values are: S8050, S8550, S9012, S9013, S9014, S9015, S9018, 2N5551, 2N5401, A1015, C1815

A great little pack to have on hand with many commonly used values.



Specifications:

  • Values: S8050, S8550, S9012, S9013, S9014, S9015, S9018, 2N5551, 2N5401, A1015, C1815
  • Quantity Per Value: 10
  • Type: Low power transistor
  • Housing: To-92



Contents:

  • 10 x S8050 Transistors
    • NPN
    • Collector Emitter Voltage: 25 V
    • Collector Current: 1.5 A
    • Collector Dissipation: 1 W
    • Transition Frequency: 190 MHz



  • 10 x S8550 Transistors
    • PNP
    • Collector Emitter Voltage: 25 V
    • Collector Current: 500 mA
    • Collector Dissipation: 300 mW
    • Transition Frequency: 150 MHz
  • 10 x S9012 Transistors
    • PNP
    • Collector Emitter Voltage: 25 V
    • Collector Current: 500 mA
    • Collector Dissipation: 300 mW
    • Transition Frequency: 150 MHz



  • 10 x S9013 Transistors
    • NPN
    • Collector Emitter Voltage: 25 V
    • Collector Current: 500 mA
    • Collector Dissipation: 300 mW
    • Transition Frequency: 150 MHz



  • 10 x S9014 Transistors
    • NPN
    • Collector-Emitter Voltage: 45 V
    • Collector Current: 100mA
    • Collector Dissipation: 400mW
    • Transition Frequency: 150 MHz



  • 10 x S9015 Transistors
    • PNP
    • Collector Emitter Voltage: 45 V
    • Collector Current: 100 mA
    • Collector Dissipation: 200 mW
    • Transition Frequency: 150 MHz



  • 10 x S9018 Transistors
    • NPN
    • Collector Emitter Voltage: 15 V
    • Collector Current: 50 mA
    • Collector Dissipation: 200 mW
    • Transition Frequency: 600 MHz



  • 10 x 2N5551 Transistors
    • NPN
    • Collector Emitter Voltage: 160 V
    • Collector Current: 600 mA
    • Collector Dissipation: 310 mW
    • Transition Frequency: 100 MHz



  • 10 x 2N5401 Transistors
    • PNP
    • Collector Emitter Voltage: 150 V
    • Emitter Base Voltage: 5 V
    • Collector Current: 600 mA
    • Collector Dissipation: 310 mW
    • Transition Frequency: 100 MHz



  • 10 x A1015 Transistors
    • PNP
    • Collector-Emitter Voltage: 50 V
    • Collector Current: 150m A
    • Collector Dissipation: 400mW
    • Transition Frequency: 80 MHz



  • 10 x C1815 Transistors
    • NPN
    • Collector-Emitter Voltage: 50 V
    • Collector Current: 150mA
    • Collector Dissipation: 400mW
    • Transition Frequency: 80 MHz
Weight 0.024 kg
Dimensions 120 × 10 × 80 mm
Brand

Transistor Type

Transistor Polarity

,

Max Power Dissipation

1W, 200mW, 300mW, 310mW, 400mW

Collector Current

, , , , ,

Transistor Transition Frequency

, , , ,

Mounting Type

Package / Case
