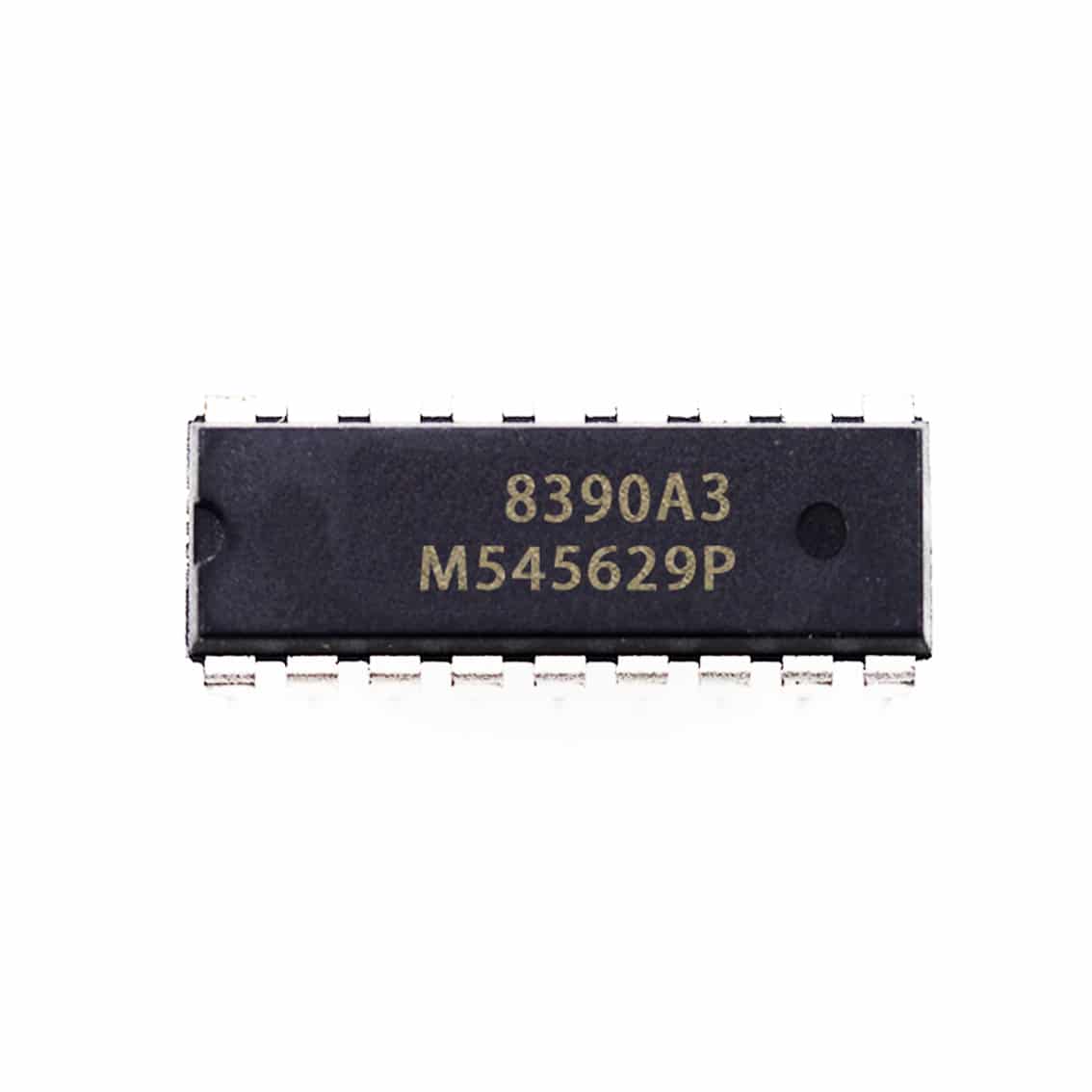

M54562 Darlington Transistor Array IC – Pack of 5

28 people have recently viewed this product!

M54562 Darlington Transistor Array IC – Pack of 5

M54562 is an eight-unit darlington transistor array integrated in one compact IC. It is excellent for project like LED matrix, LED display or anything that requires a lot of control.

$19.95

Order Within –

Availability: 39 in stock

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

All stock is located in Australia.

SKU: PHI1001447

Description:

M54562 is an eight-unit Darlington transistor array integrated into one compact IC. It is excellent for a project like LED matrix, LED display or anything that requires a lot of control. Digital ICs like Decoder/DEMUX or Shift Registers can be used with this for more compact control using fewer resources. Great with microcontrollers.



Specifications:

  • Supply voltage: Up to 50V
  • Input voltage: -0.5V to 30V
  • Output current: Up to 500mA
  • Power dissipation: 1.79(P)/1.10(FP) W
  • Operating temperature: -20C ~ +75C
  • High breakdown voltage (BVCEO= 50V)
  • High-current driving ( Io(max) = –500mA)
  • With output clamping diodes
  • Driving available with PMOS IC output of 6V ~ 16V or with TTL output
  • Wide operating temperature range (Ta = –20C to +75C)
  • Output current-sourcing type



Contents:

  • 5 x M54562 Darlington Transistor Array IC
Weight 0.006 kg
Dimensions 70 × 10 × 50 mm
