Description:

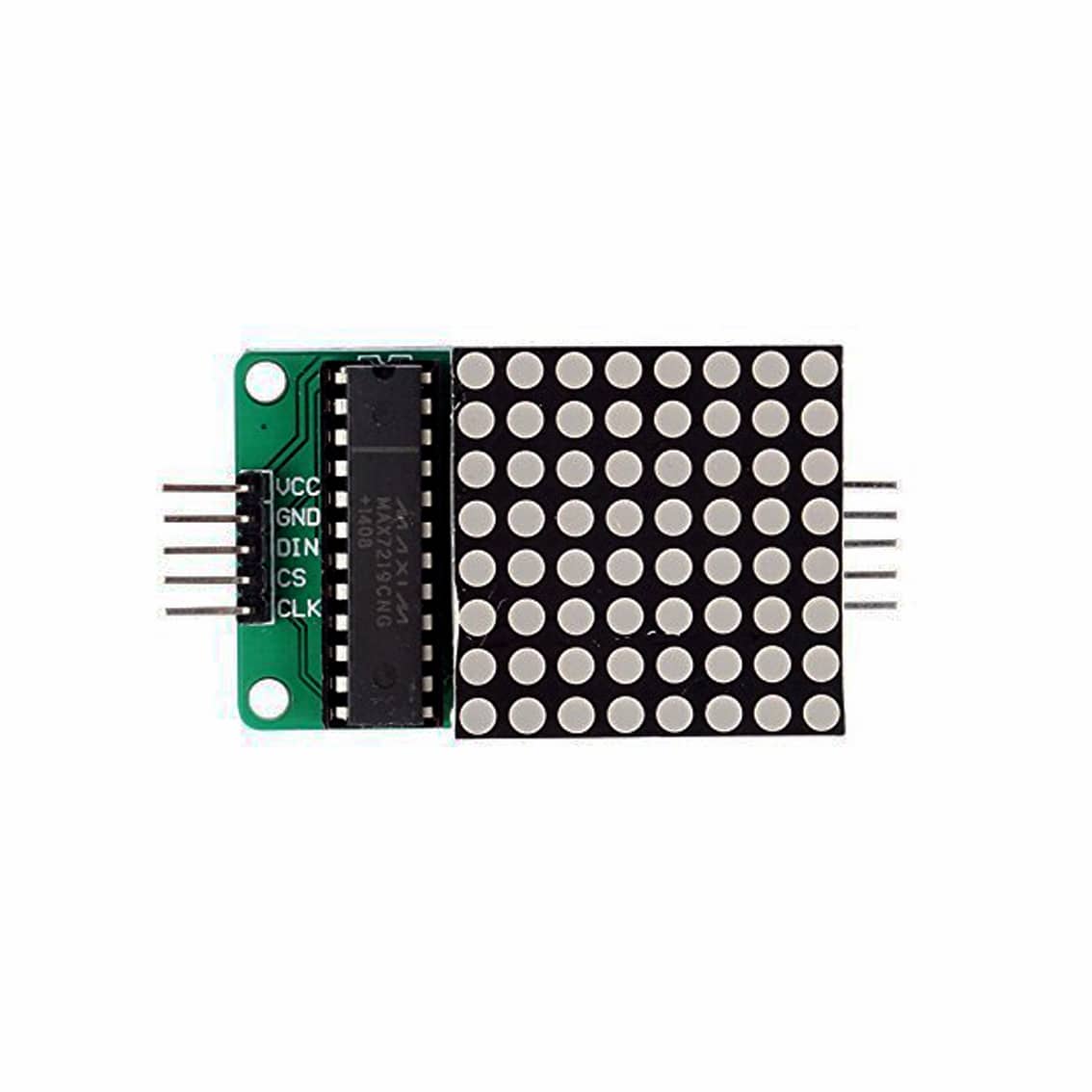

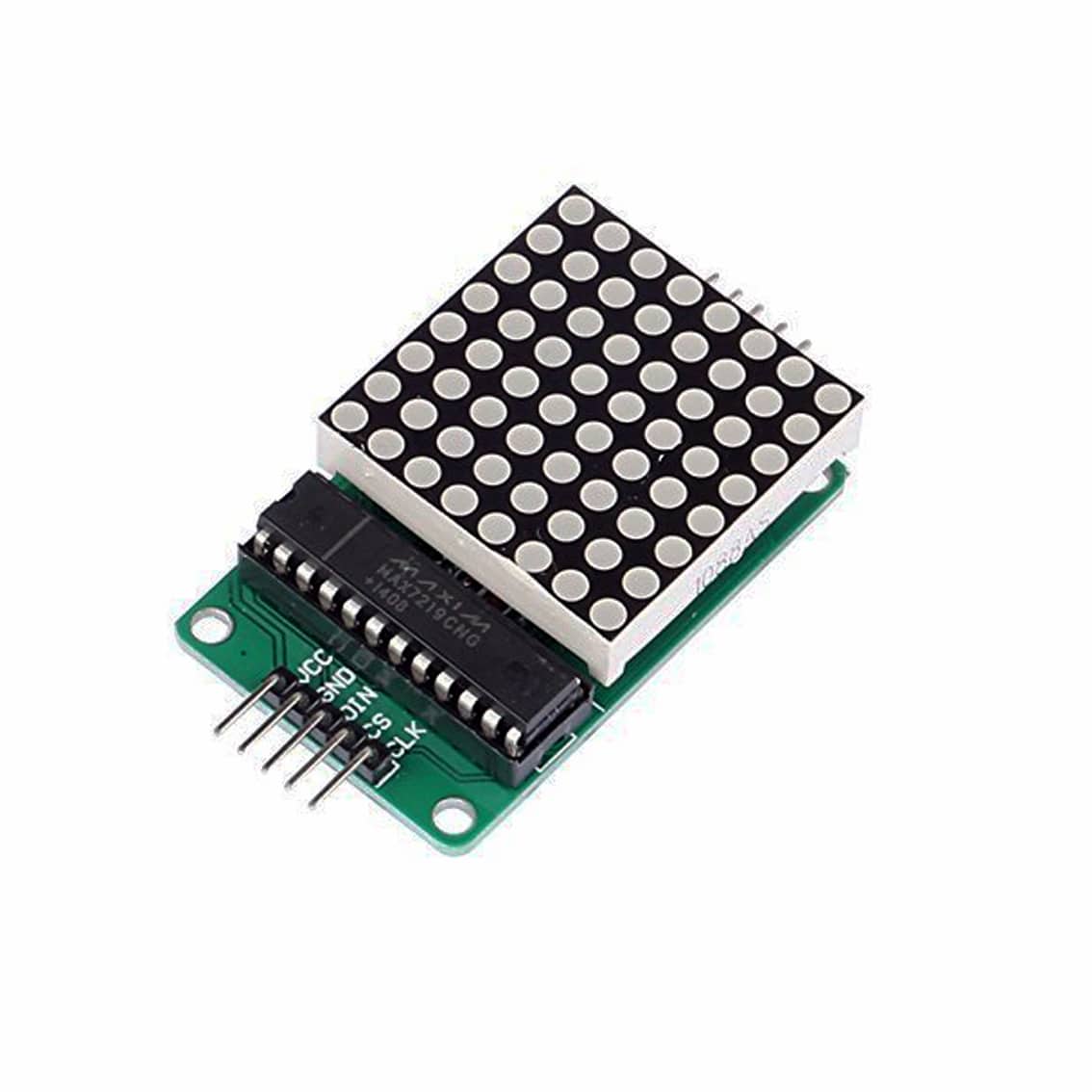

The MAX7219 8×8 Serial Dot Matrix Display Module is a versatile and compact solution for displaying characters, symbols, and animations in various electronic projects. Utilizing the MAX7219 LED driver IC, this module simplifies the process of controlling an 8×8 LED matrix, allowing for efficient management of up to 64 individual LEDs through a serial interface. This design significantly reduces the number of microcontroller pins required, making it ideal for applications ranging from DIY electronics to professional digital signage.
One of the standout features of this module is its ability to be easily daisy-chained with additional units, enabling the creation of larger displays without the need for extra microcontroller resources. Operating at a standard 5V DC, the module is compatible with a wide range of microcontrollers, including Arduino and Raspberry Pi. Its straightforward integration and low power consumption make it a popular choice among hobbyists and professionals seeking to implement dynamic visual displays in their projects.
Specifications:
- Operating Voltage: 5V DC
- Maximum Operating Current: 320 mA
- LED Matrix Resolution: 8×8 (64 LEDs)
- LED Forward Voltage: 1.5V to 2.0V
- LED Forward Current: 10 mA to 15 mA
- Operating Temperature: -25°C to +60°C
- Module Dimensions: 50mm x 32mm x 15mm
- Mounting: Four screw holes (3mm diameter)
Features:
- Serial interface control requiring only three I/O pins
- Daisy-chain capability for expanding display size
- On-board MAX7219 driver IC for simplified LED control
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
- Adjustable brightness control
- Low power consumption
- Easy integration into various projects
Contents:

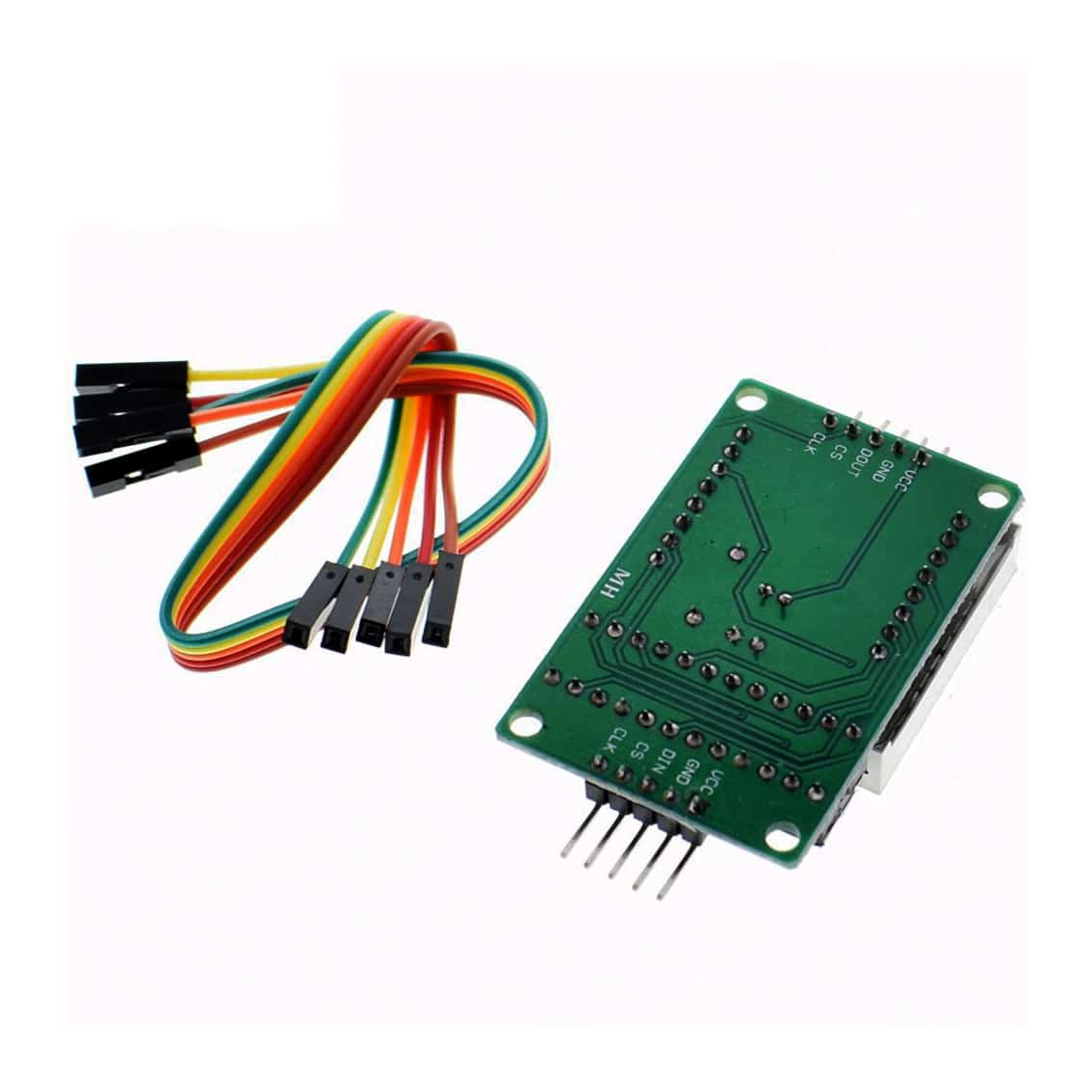

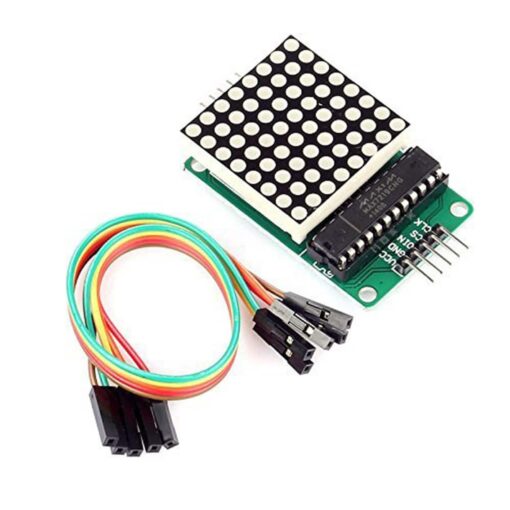

- 1 x MAX7219 8×8 Serial Dot Matrix Display Module
- 1 x 5-wire Dupont cable (20cm)
