MBR1645 45V 16A Schottky Rectifier - Pack of 5

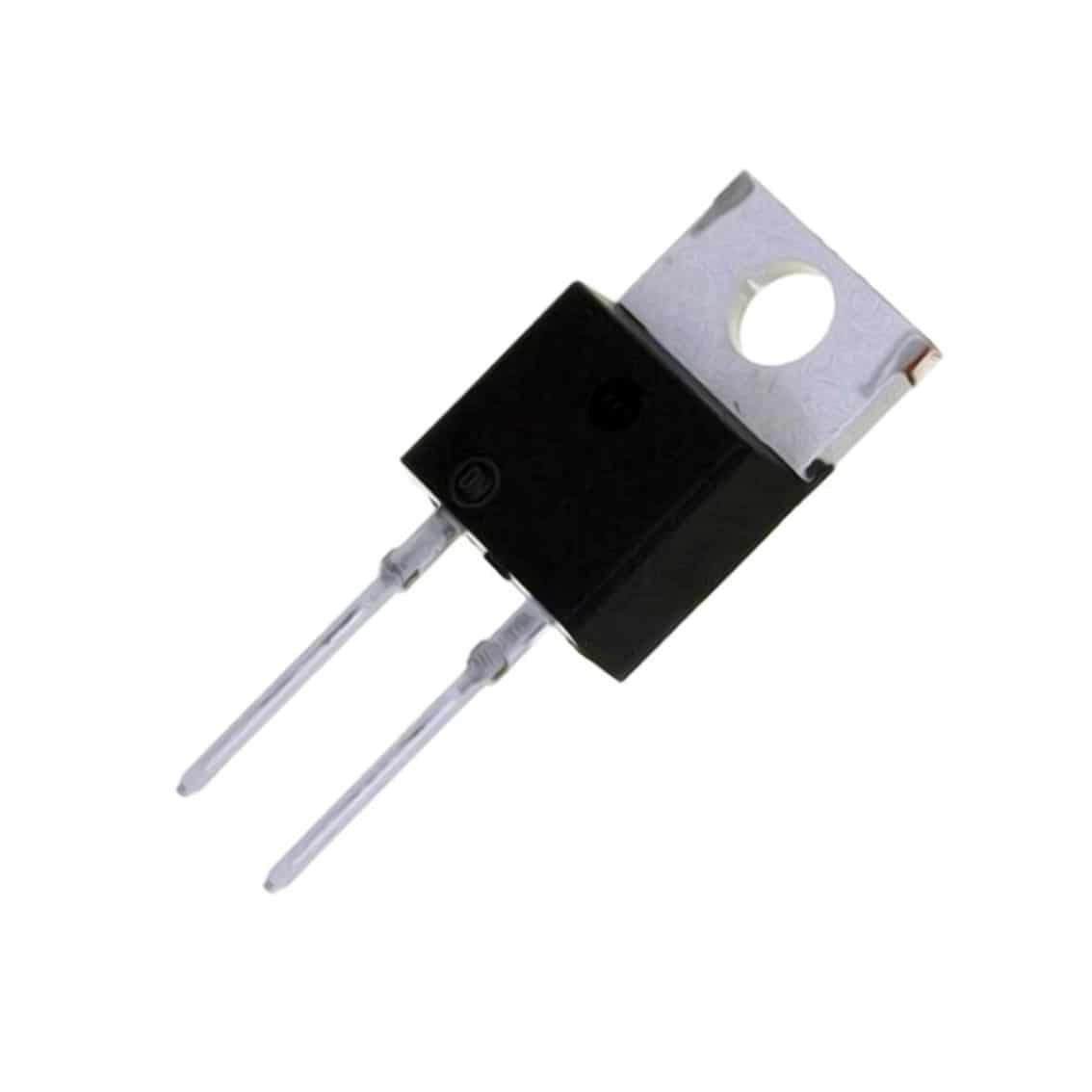

The MBR1645 is a 16A schottky barrier diode with a voltage rating of 45V. Enclosed in a TO-220AC housing.

$12.95

Availability: 50 in stock

Buy now, pay later available.

SKU PHI1051688 Category Tags ,

Description:

The MBR1645 is a 16A schottky barrier diode with a voltage rating of 45V. Enclosed in a TO-220AC housing.

The MBR1645 has a maximum forward voltage of 0.63V and peak reverse current of 40mA.
Schottky barrier rectifier diodes have a guard ring for transient protection, they have a low power loss, high effeciency, high current capability, high surge protection and are commonly used in low voltage, high frequency inverters, free wheeling, and polarity protection applications.


Specifications:

  • Voltage: 45V
  • Current: 16A
  • Housing: TO-220AC
  • Forward voltage: 0.63V @ 16A
  • Reverse current: 40mA
  • Max peak current: 150A
  • Operating temperature: -55?C ? 200?C
  • Pins: 2
  • Quantity: 5 pieces



Contents:

  • 5 x MBR1645 45V 16A Schottky Rectifier
