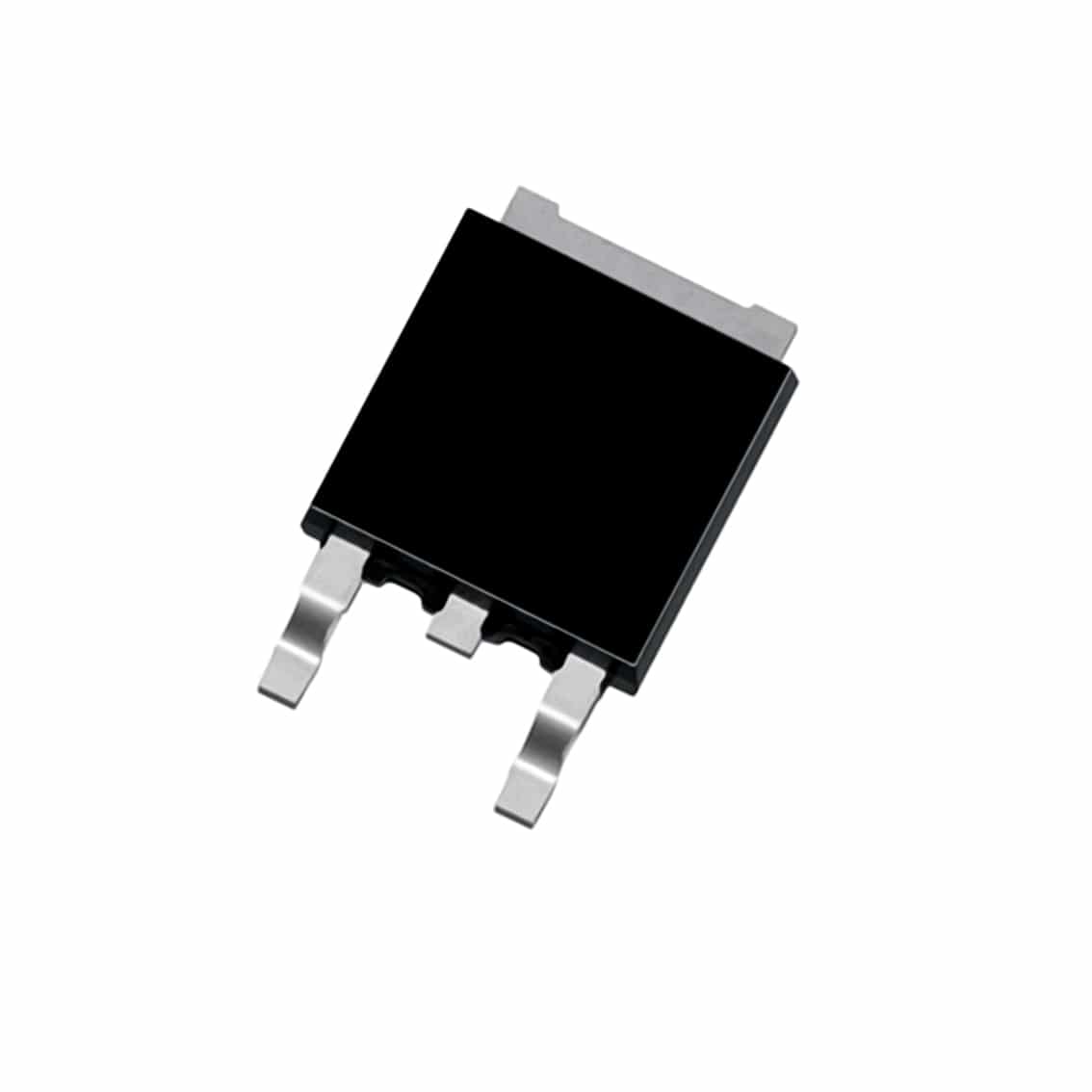

MC78M15CDTG 15V 0.5A Linear Voltage Regulator – Pack of 10

Description

The MC78M15CDTG is a surface mount fixed voltage regulator, with an output voltage of 15V and 500mA current. read more

or 4 fortnightly payments of $2.49 with Afterpay More info

SKU:
PHI1052763
Category:
Tag:
Collector Base Voltage:

Mounting Type:

Package / Case:

Type:

view all details

Price

$9.95

Quantity

- +

Total

$9.95

0 reviews

30 in stock

- +

Description

Description:

The MC78M15CDTG is a surface mount fixed voltage regulator, with an output voltage of 15V and 500mA current.

Housed in a D2PAK package and come in a pack of 10.



Specifications:

  • Mounting Style: SMD
  • Package / Case: D2PAK
  • Number of Outputs: 1
  • Polarity: Positive
  • Output voltage: 15 V
  • Output current: 500 mA
  • Output type: Fixed
  • Max Input Voltage: 35 V
  • Operating temperature: 0 – 125 degrees Celsius
  • Load Regulation: 300 mV
  • Dimensions: 4.6mm x 10.4mm x 9.35 mm



Contents:

  • 10 x MC78M15CDTG 15V 0.5A Linear Voltage Regulator
