MCR100-6G 400V 800mA Thyristor – Pack of 10

  • PHI1052813 – MCR100-6G 400V 800mA Thyristor – Pack of 10 02
  • PHI1052813 – MCR100-6G 400V 800mA Thyristor – Pack of 10 02

Description

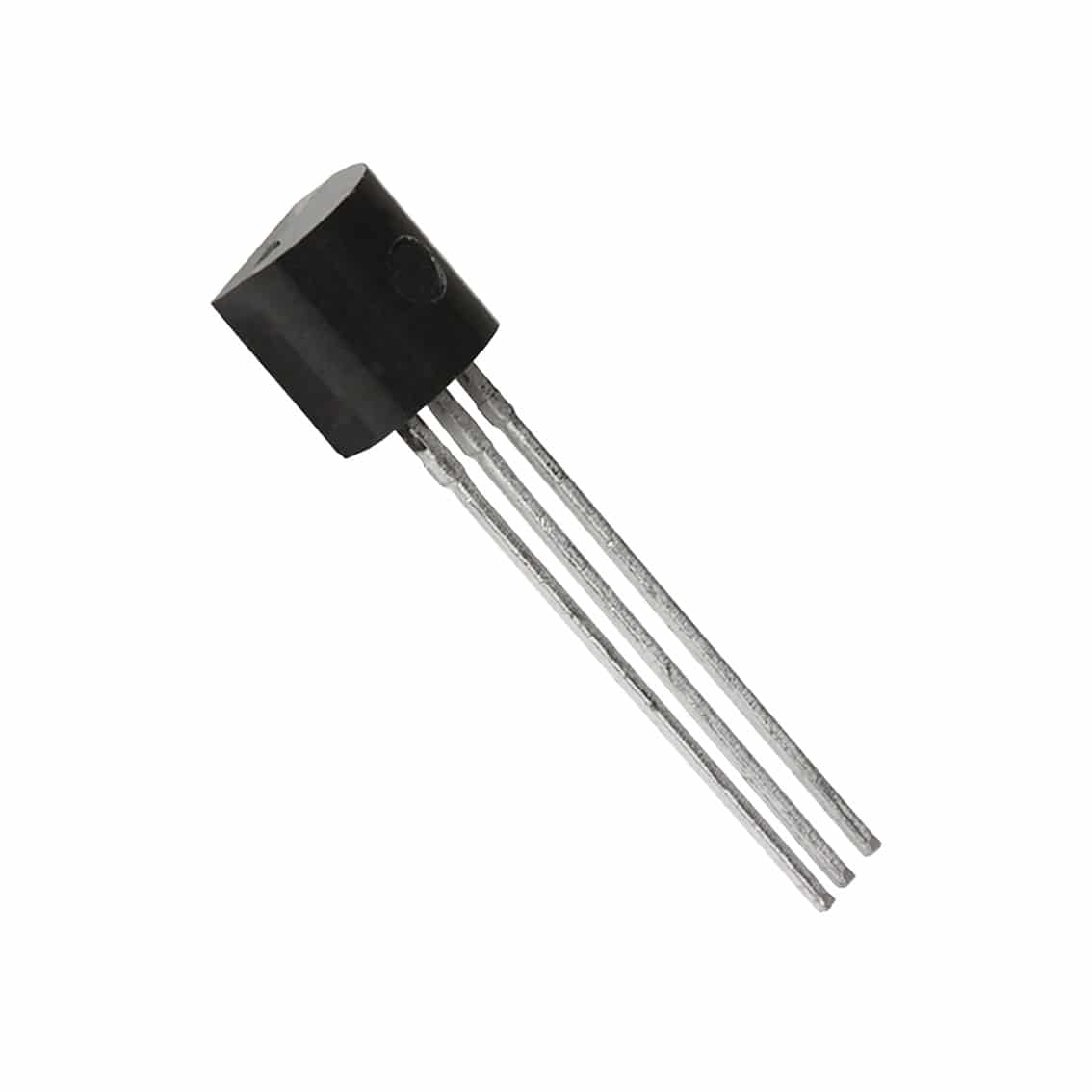

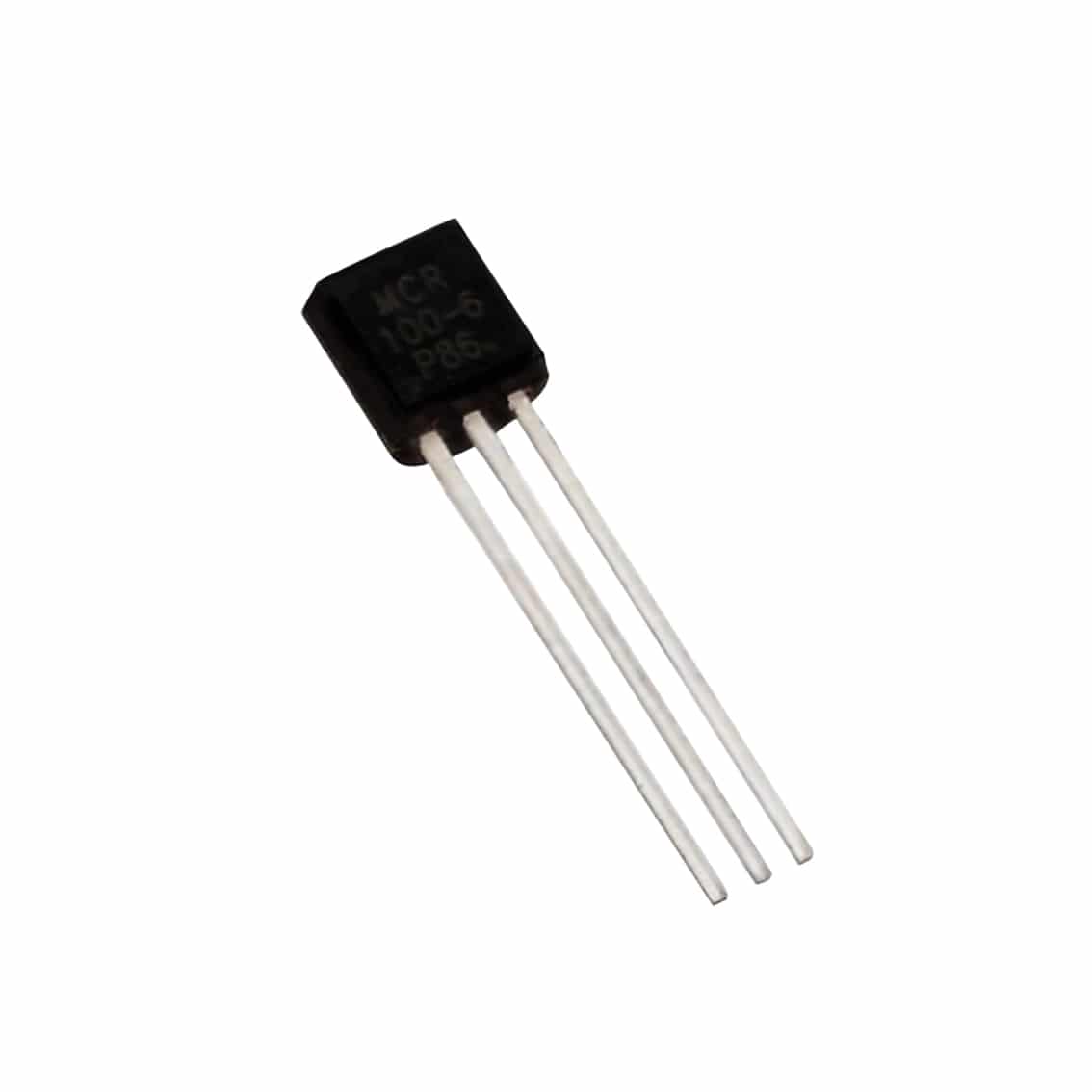

The MCR100-6G is a 400V 800mA Thyristor housed in a TO-92 case. read more

or 4 fortnightly payments of $2.24 with Afterpay More info

SKU:
PHI1052813
Category:
Tag:
Brand:

Package / Case:

Mounting Type:

Current Rating:

view all details

Price

$8.95

Quantity

- +

Total

$8.95

0 reviews

30 in stock

- +

Description

Description:

The MCR100-6G is a 400V 800mA Thyristor housed in a TO-92 case.

A thyristor is a solid-state semiconductor device with four layers of alternating P- and N-type materials.



Specifications:

  • Breakover Current Max: 10 A
  • On-State Current Rating: 800mA
  • Rated Repetitive Off-State Voltage: 400 V
  • Off-State Leakage Current: 10 uA
  • Forward Voltage: 1.7 V
  • Maximum Gate Peak Inverse Voltage: 5 V
  • Gate Trigger Voltage: 1.2 V
  • Gate Trigger Current: 0.2 mA
  • Holding Current: 5 mA
  • Case / Package: TO-92
  • Mounting Type: Through Hole
  • Operating Temperature: -40⁰C – 110⁰C



Contents:

  • 10 x MCR100-6G 400V 800mA Thyristor
