MCR100-8G 600V 800mA Thyristor – Pack of 10

38 people have recently viewed this product!

MCR100-8G 600V 800mA Thyristor – Pack of 10

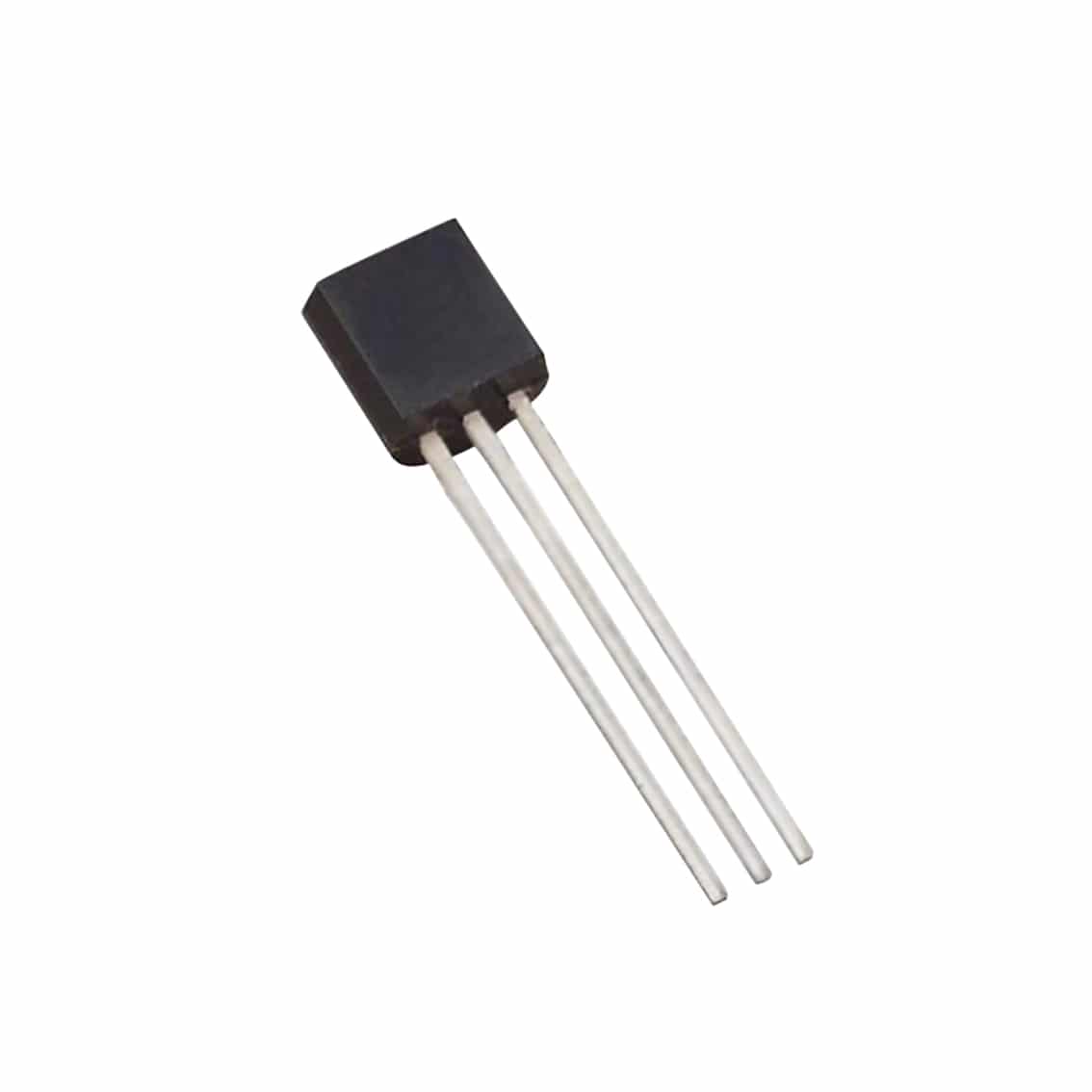

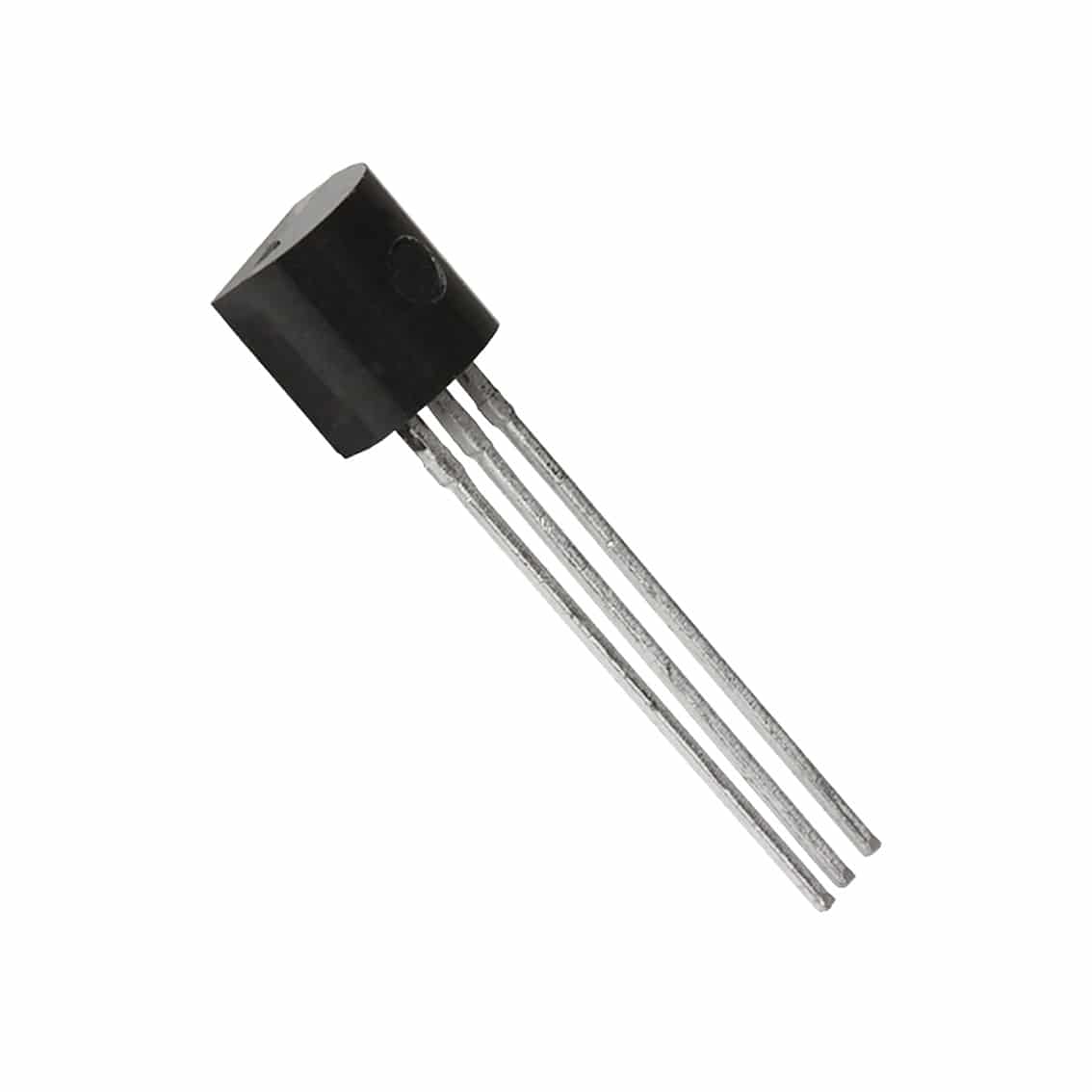

The MCR100-8G is a 600V 800mA Thyristor housed in a TO-92 case.

$13.95

Order Within –

Availability: 54 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002810

You May Also Like...

Description:

The MCR100-8G is a 600V 800mA Thyristor housed in a TO-92 case.

A thyristor is a solid-state semiconductor device with four layers of alternating P- and N-type materials.



Specifications:

  • Breakover Current Max: 10 A
  • On-State Current Rating: 800mA
  • Rated Repetitive Off-State Voltage: 600 V
  • Off-State Leakage Current: 10 uA
  • Forward Voltage: 1.7 V
  • Maximum Gate Peak Inverse Voltage: 5 V
  • Gate Trigger Voltage: 1.2 V
  • Gate Trigger Current: 0.2 mA
  • Holding Current: 5 mA
  • Case / Package: TO-92
  • Mounting Type: Through Hole
  • Operating Temperature: -40⁰C – 110⁰C



Contents:

  • 10 x MCR100-8G 600V 800mA Thyristor
