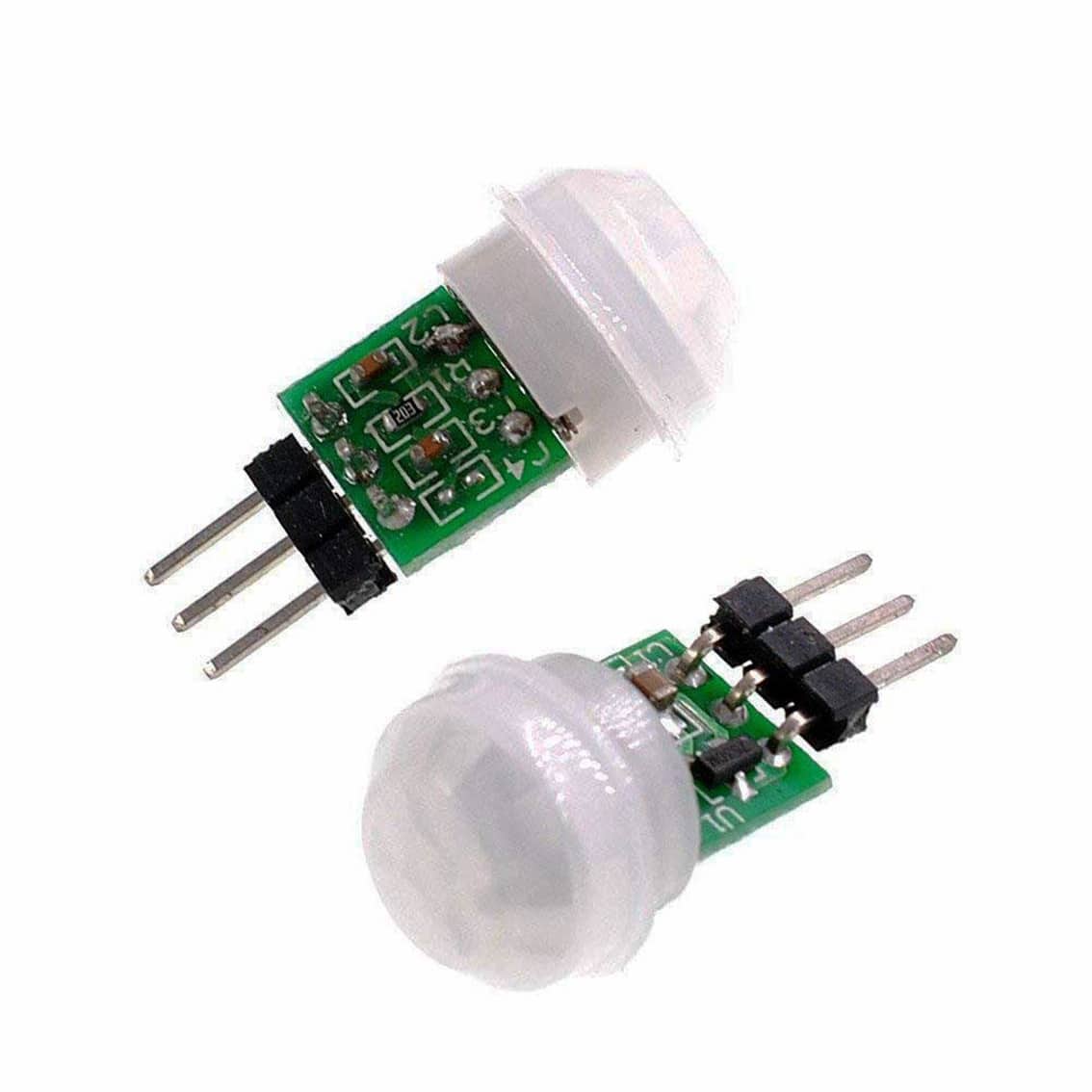

Mini PIR Motion Sensor Module - AM312

The Mini PIR Motion Sensor Module – AM312 is an ultra-miniature PIR module which uses a pyroelectric sensor similar to the one found in the common SR501 but in a more compact form factor.

$11.95

Availability: 25 in stock

Buy now, pay later available.

SKU PHI1073040 Category Tag

Description:

The Mini PIR Motion Sensor Module – AM312 is an ultra-miniature PIR module which uses a pyroelectric sensor similar to the one found in the common SR501 but in a more compact form factor. This sensor also has the advantage of being ultra-low power with a quiescent current of only 8uA making it suitable for battery applications where very long battery life is required.



Specifications:

    • Supply voltage: 3-12Vdc
    • Output voltage: 3.3Vdc (triggered) / 0Vdc (un-triggered)
    • Quiescent current: ~8uA at 5Vdc
    • Trigger on time: ~4 seconds
    • Sensor angle: 100 degree cone
    • Sensor range: ~3 meters
    • Operating temp: -20 – +80 degrees C
    • PCB dimension: 8.5mm x 10mm
    • Overall length: 27.2mm inc header and sensor



Contents:

    • 1 x Mini PIR Motion Sensor Module – AM312
