Description:

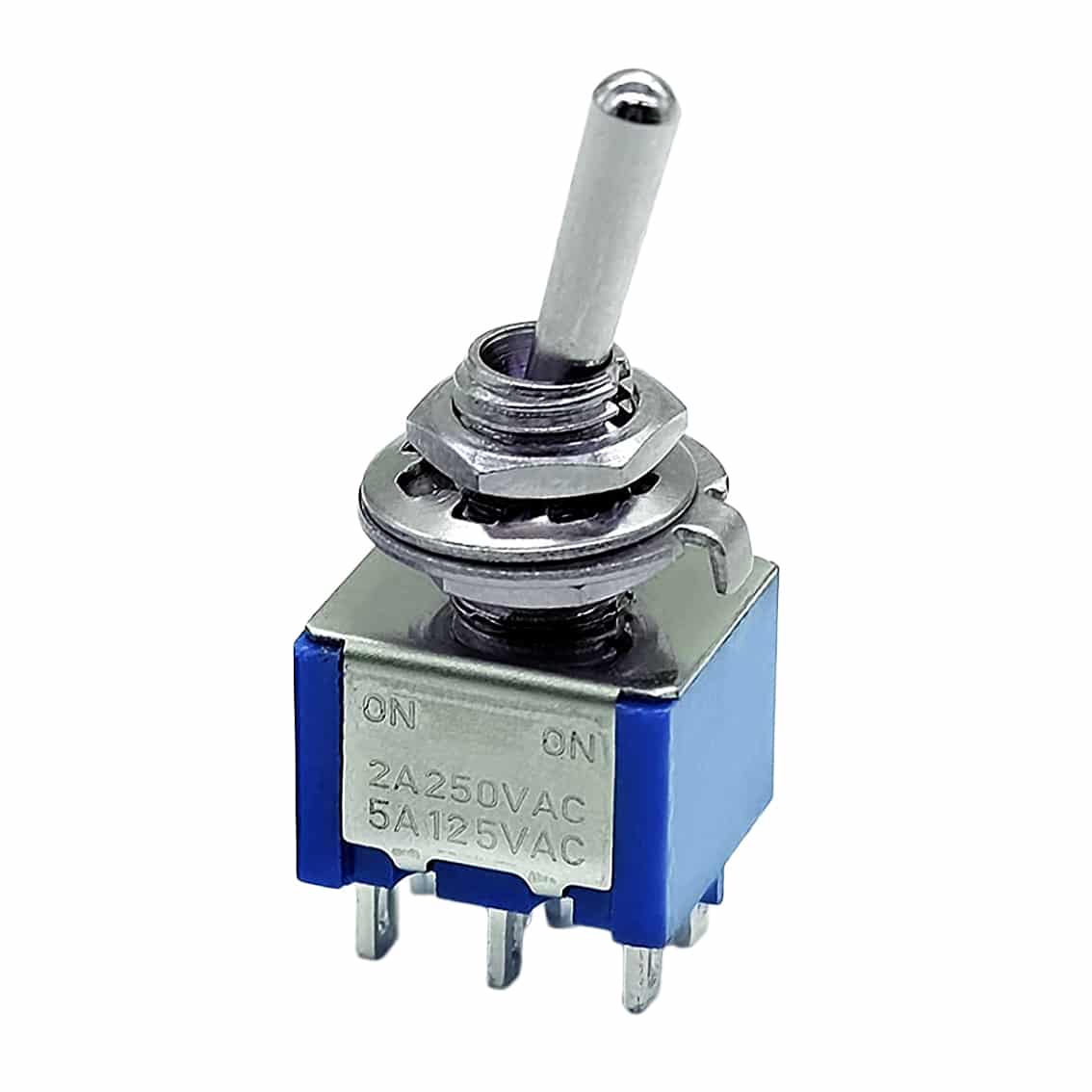

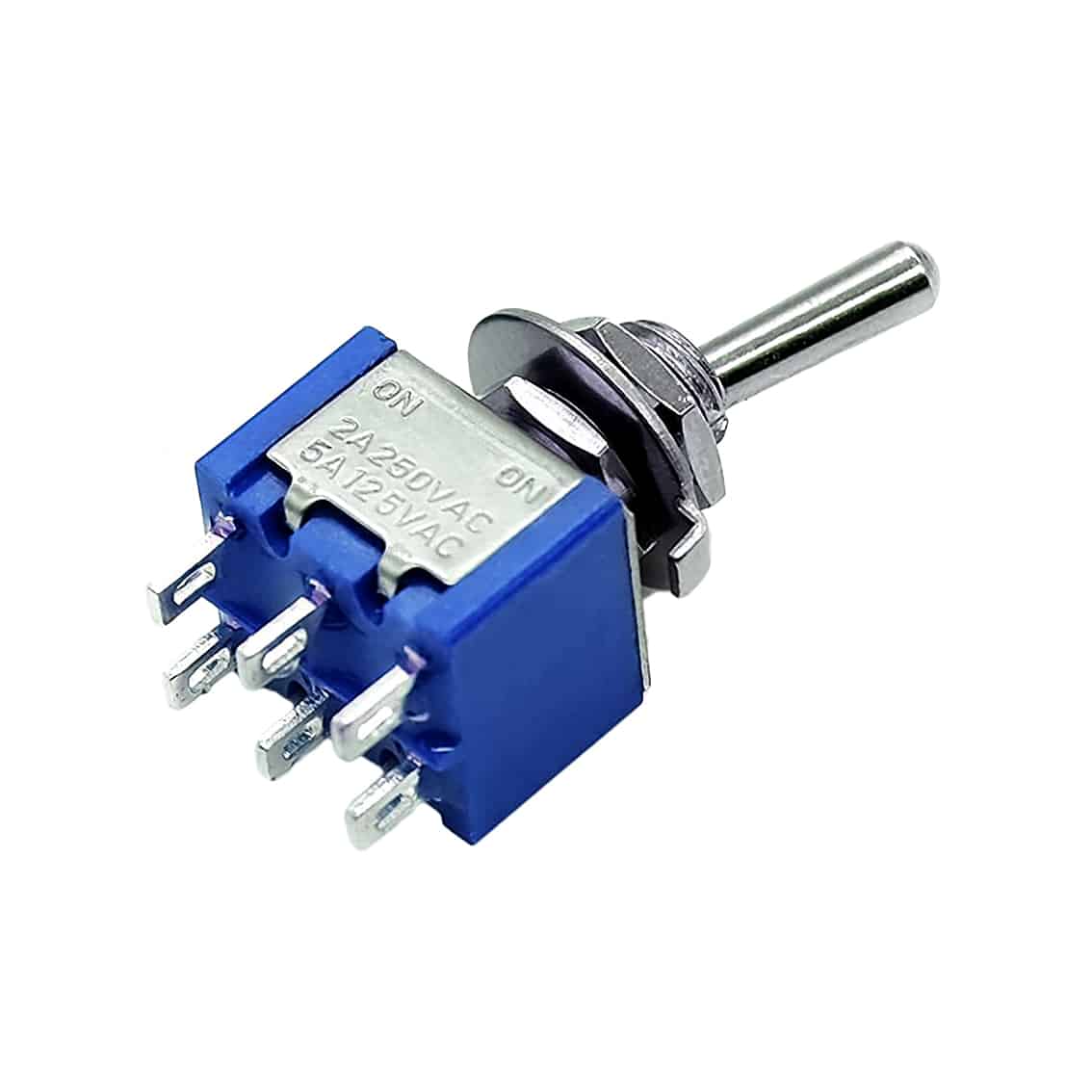

The MTS-202 Blue Mini Toggle Switch is a reliable and versatile component for various electronic projects and applications. This mini toggle switch features a robust construction with durable blue plastic housing, making it ideal for use in limited space. The MTS-202 is a DPDT (Double Pole Double Throw) switch, allowing it to control two circuits simultaneously with two positions: ON-ON. This pack of 5 switches is perfect for hobbyists, engineers, and DIY enthusiasts looking to add precise control to their circuits.
With its compact size and easy-to-use toggle mechanism, the MTS-202 switch can be integrated into various projects, including robotics, instrumentation, and control panels. The switch is designed for panel mounting, with a secure nut and washer ensuring a stable installation. Whether building a new project or upgrading an existing system, these switches offer reliable performance and a professional finish.
Specifications:
- Model: MTS-202
- Type: Mini Toggle Switch
- Switching Type: DPDT (Double Pole Double Throw)
- Position: ON-ON
- Contact Rating: 6A at 125V AC, 3A at 250V AC
- Contact Resistance: 20mΩ max
- Terminal Type: Solder Lug
- Terminal: 6-Pins Solder
- Insulation Resistance: 500VDC, 1000MΩ min
- Dielectric Strength: 1500VAC @ 1 minute
- Mounting Hole Diameter: 6mm
- Body Material: Metal and Blue Plastic
- Operating Temperature: -25°C to +85°C
- Electrical Life: 20,000 cycles
- Overall Dimensions: 12mm x 7mm x 29mm (excluding terminals)
- Weight: Approximately 5g per switch
Features:
- DPDT switch allows control of two separate circuits simultaneously.
- Compact and durable design, suitable for space-constrained applications.
- ON-ON configuration for simple, reliable switching between two states.
- Rated for up to 6A at 125V AC, ensuring compatibility with various electronic circuits.
- Easy panel mounting with a secure nut and washer for stable installation.
Contents:
- 5 x MTS-202 Blue Mini Toggle Switch
