MX-FS-03V 433MHz Wireless Transmitter Module

FREE SHIPPING OVER $199

50,000+ ORDERS

WORLDWIDE SHIPPING

SSL SECURED

MX-FS-03V 433MHz Wireless Transmitter Module

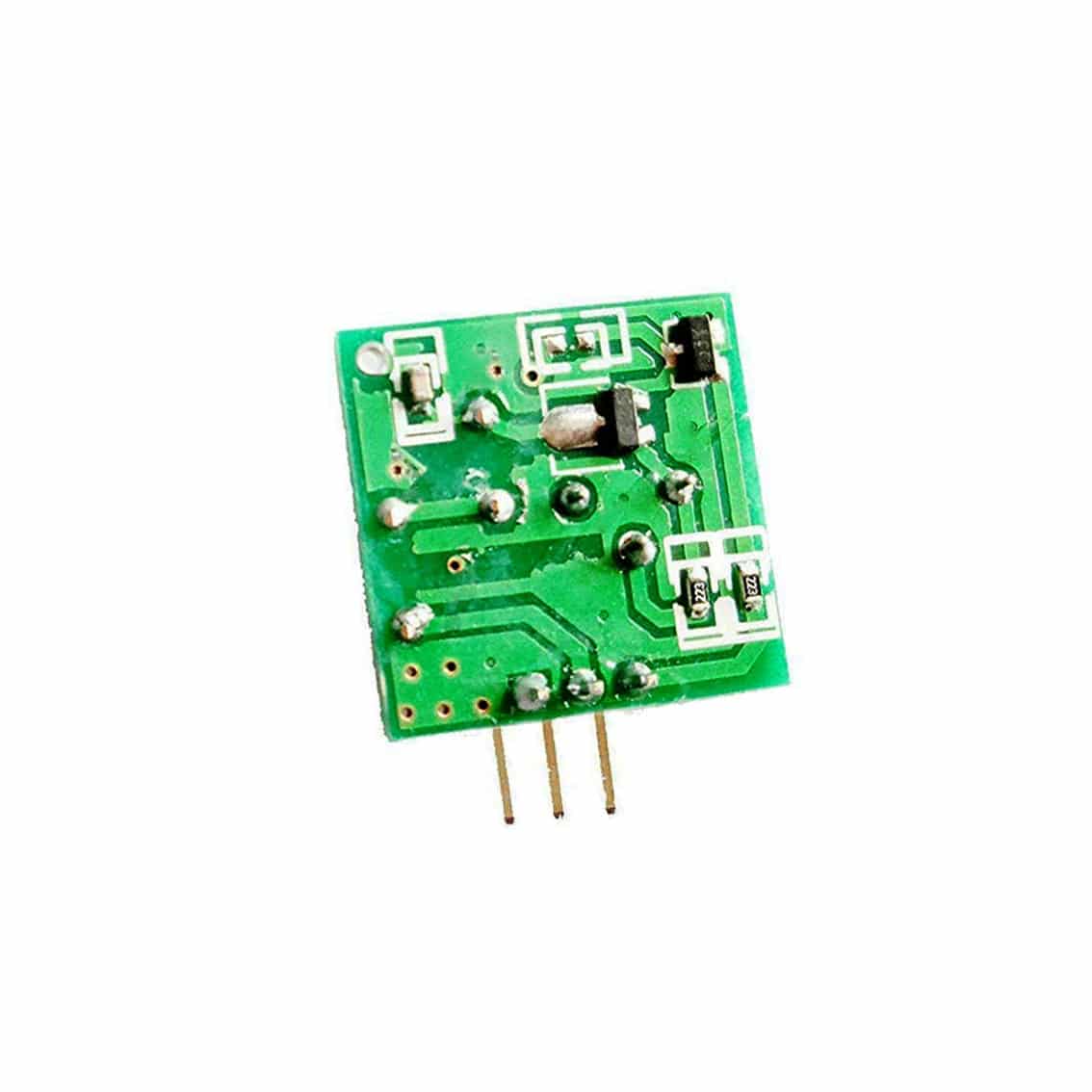

MX-FS-03V 433MHz Wireless Transmitter Module 2
MX-FS-03V 433MHz Wireless Transmitter Module 3
MX-FS-03V 433MHz Wireless Transmitter Module 4
28 people have recently viewed this product!

MX-FS-03V 433MHz Wireless Transmitter Module

0 reviews

The MX-FS-03V 433MHz Wireless Transmitter Module is a compact and efficient solution for low-power wireless data transmission, featuring a flexible operating voltage range and easy integration with digital circuits.

  • Low-cost wireless data transmission solution operating at 433.92MHz
  • Transmission distance of 20 to 200 meters, depending on supply voltage
  • Single digital input pin for straightforward interfacing
  • Compact design measuring 19mm x 19mm

$13.95

Order Within –

FOR SAME DAY SHIPPING!

Availability: 95 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

MX-FS-03V 433MHz Wireless Transmitter Module 5
MX-FS-03V 433MHz Wireless Transmitter Module 6
MX-FS-03V 433MHz Wireless Transmitter Module 7
MX-FS-03V 433MHz Wireless Transmitter Module 8
MX-FS-03V 433MHz Wireless Transmitter Module 9
MX-FS-03V 433MHz Wireless Transmitter Module 10
SKU: PHI1001311

You May Also Like...

Description:

The MX-FS-03V 433MHz Wireless Transmitter Module is a low-cost, efficient solution for wireless data transmission in various electronic projects. Operating at 433.92MHz, it is ideal for applications requiring low power consumption and data rates up to 4Kbps, such as remote controls, wireless sensors, and home automation systems. The module features a single digital input pin; when set high, it continuously transmits a 433MHz signal, facilitating straightforward integration with microcontrollers and other digital circuits.

With an operating voltage range of 3.5V to 12V DC, the MX-FS-03V offers flexibility in power supply options. Its transmission distance varies between 20 to 200 meters, depending on the supply voltage and environmental conditions. The compact design, measuring approximately 19mm x 19mm, allows for easy incorporation into space-constrained projects. For optimal performance, connecting a 32cm wire as an antenna is recommended to enhance signal transmission.

Specifications:

  • Operating Voltage: 3.5V to 12V DC
  • Transmission Distance: 20 to 200 meters (dependent on supply voltage and environment)
  • Transmission Power: 10mW
  • Data Rate: Up to 4Kbps
  • Modulation Technique: Amplitude Modulation (AM)
  • Operating Frequency: 433.92MHz
  • Dimensions: 19mm x 19mm
  • Antenna: 32cm single-core wire (recommended)

Features:

  • Low-cost wireless data transmission solution
  • Single digital input for easy interfacing
  • Flexible operating voltage range
  • Compact size for versatile applications
  • Compatible with 433MHz wireless receiver modules

Contents:

  • 1 x MX-FS-03V 433MHz Wireless Transmitter Module
Weight 0.005 kg
Dimensions 30 × 10 × 20 mm
