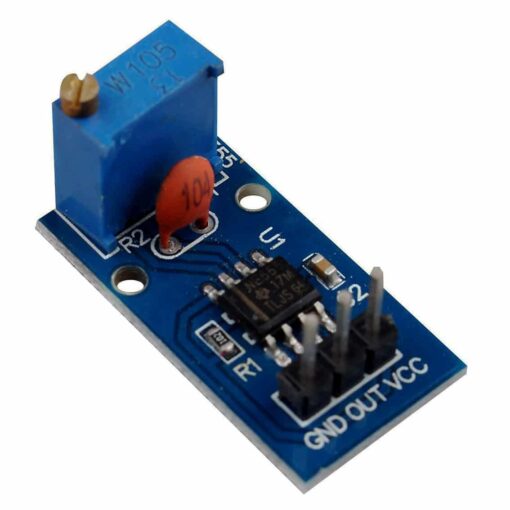

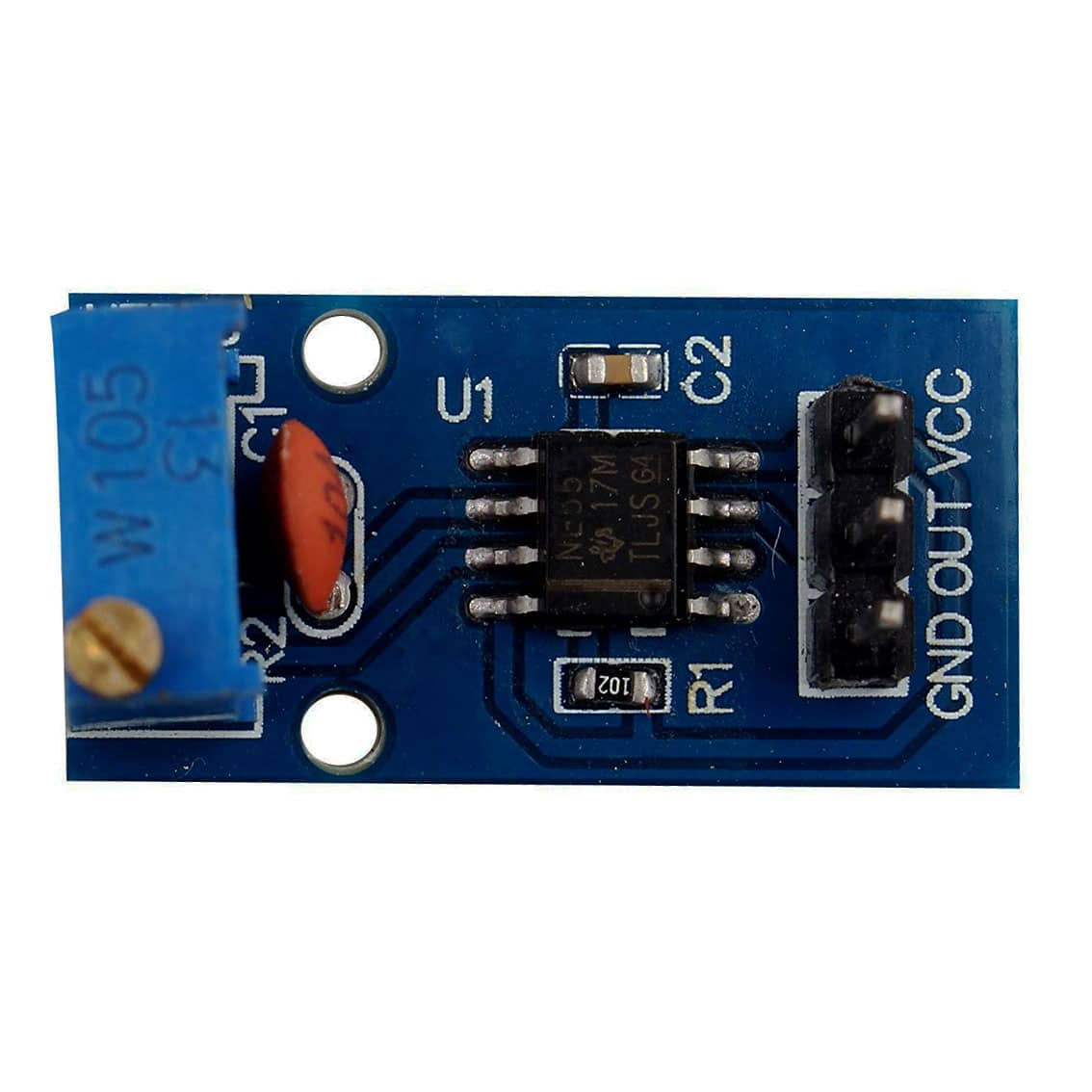

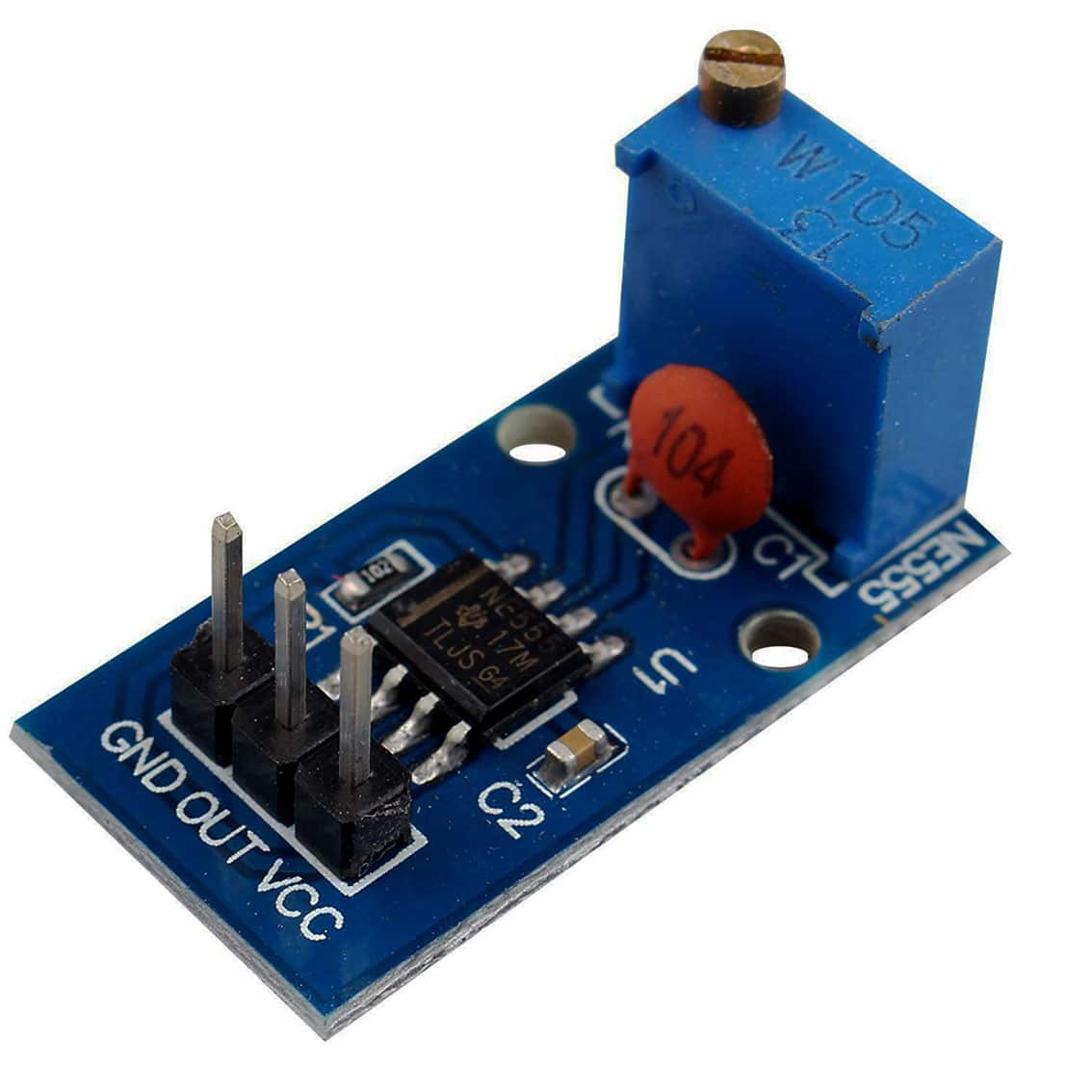

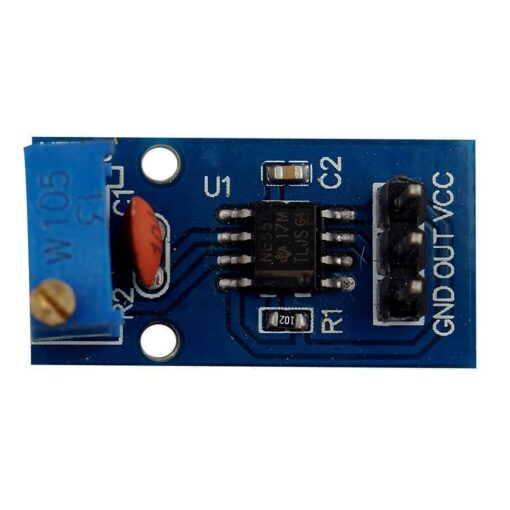

NE555 Frequency Adjustable Pulse Generator Module

  • NE555 Frequency Adjustable Pulse Generator Module
  • NE555 Frequency Adjustable Pulse Generator Module
  • NE555 Frequency Adjustable Pulse Generator Module
  • NE555 Frequency Adjustable Pulse Generator Module

Description

The NE555 Frequency Adjustable Pulse Generator Module is a square wave pulse generator based on the ubiquitous NE555 timer IC. read more
SKU:
PHI1071302
Category:
Tag:
Brand:

Price

$7.95

Quantity

- +

Total

$7.95

0 reviews

99 in stock

- +

Description

Description:

The NE555 Frequency Adjustable Pulse Generator Module is a square wave pulse generator based on the ubiquitous NE555 timer IC.

The module can be powered from a wide power supply range (4.5 to 12V) and will produce a continuous square wave output between 15Hz to 24KHz which can be adjusted via the on-board multi-turn potentiometer.

Useful for where an approximate frequency clock source is required such as for stepper motor step generation tone generation etc.

Specifications

Specifications:

  • Supply voltage: 4.5V – 12V
  • Supply current: 3mA at 5V Vcc
  • Min freq (approx.): 15Hz 49% duty cycle at 5V Vcc
  • Max freq (approx.): 24KHz 89.4% duty cycle at 5V Vcc
  • Output voltage: 4.5V at 5Vcc / 11.5V at 12Vcc
  • Onboard chip: NE555
  • Dimensions: 25mm x 13mm
