Description:

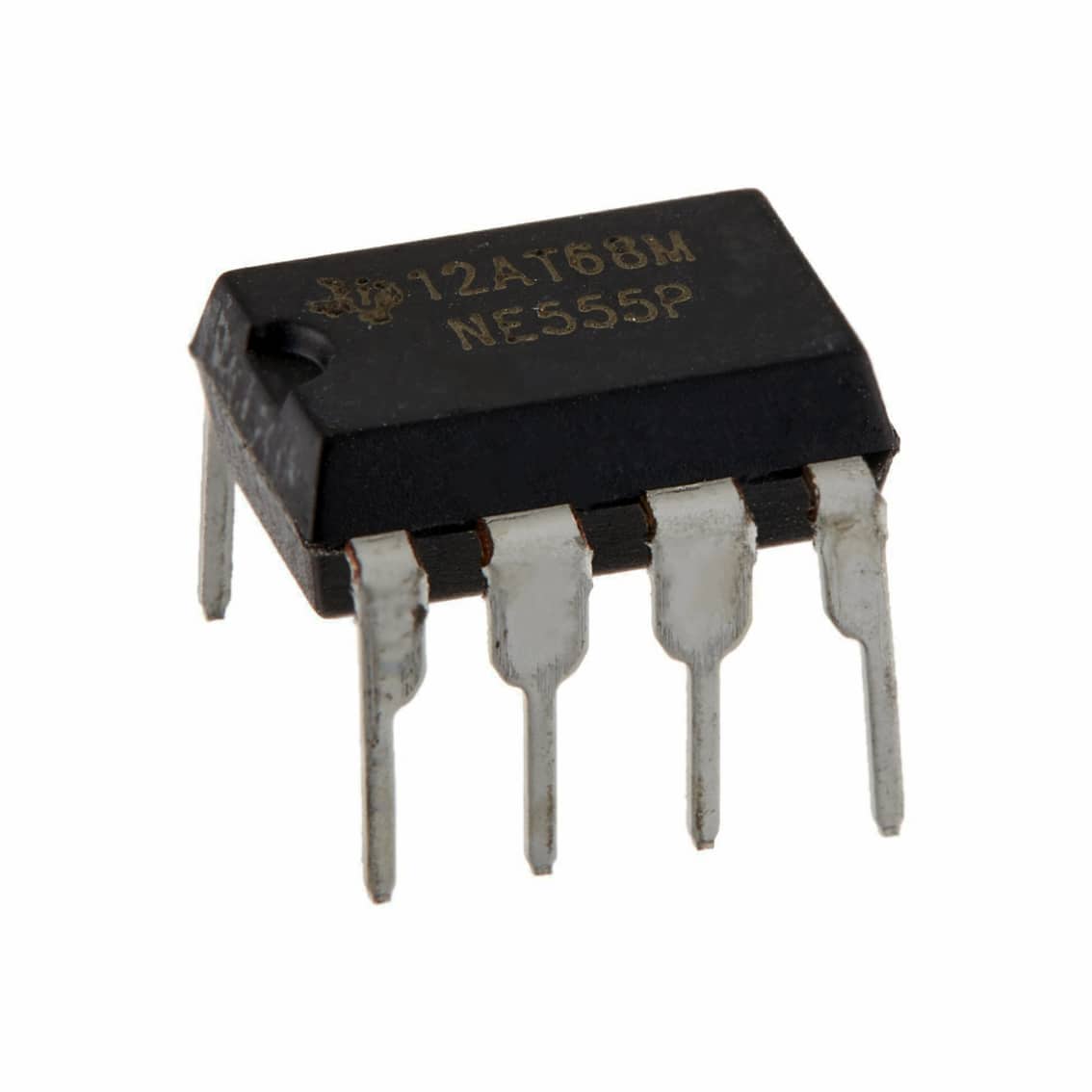

The NE555 Timer DIP 8 IC – Pack of 5 is a legendary and versatile integrated circuit used for generating accurate time delays, oscillations, and pulse-width modulation (PWM). It supports three primary modes of operation—monostable, astable, and bistable—making it ideal for a wide variety of timing and waveform generation applications in both analogue and digital electronics. Whether you’re building a simple LED flasher or a complex delay circuit, the NE555 offers consistent and configurable timing performance.
Housed in a compact 8-pin DIP package, the NE555 is easy to use in breadboards and through-hole PCB designs. It can operate with a wide supply voltage range from 4.5V to 16V and can source or sink up to 200 mA of output current, allowing it to drive LEDs, speakers, and small relays directly. Known for its reliability and simplicity, this 5-pack is a staple for engineers, hobbyists, educators, and anyone working on timing-critical electronic circuits.
Specifications:
- IC Model: NE555
- Package Type: DIP-8 (Dual In-Line Package)
- Operating Modes: Monostable, Astable, Bistable
- Supply Voltage: 4.5V to 16V
- Output Current: Up to 200 mA (sink or source)
- Timing Interval: Microseconds to hours (configurable via external RC)
- Trigger Voltage: ~1/3 Vcc (typical)
- Threshold Voltage: ~2/3 Vcc (typical)
- Operating Temperature Range: 0°C to +70°C (typical commercial range)
- Mounting Type: Through-Hole
- Applications: Pulse generation, delay circuits, oscillators, tone generation
- Pack Size: 5 ICs
Features:
- Stable and configurable timing operation
- Three operational modes for flexible circuit design
- Can directly drive LEDs, relays, and small loads
- Wide supply voltage range (4.5V to 16V)
- Standard DIP-8 format compatible with breadboards and prototyping PCBs
Contents:
- 5 x NE555 Timer ICs (DIP-8 Package)
