NEMA 17 40mm Bi Polar Stepper Motor – 42HB34F08AB

37 people have recently viewed this product!

NEMA 17 40mm Bi Polar Stepper Motor – 42HB34F08AB

The 42HB34F08AB 40mm Stepper Motor is a NEMA 17 size (42mm x 42mm) with a 40mm shaft.

$42.95

Order Within –

Availability: 50 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002014

Description:

The 42HB34F08AB 40mm Stepper Motor is a NEMA 17 size (42mm x 42mm) with a 40mm shaft.

Ideal for use with 3d printers, CNC machines, engravers, textiles and more.



Specifications:

  • Rated power: 200W
  • Voltage: 12V
  • Current: 1.33A per phase
  • Rated speed: 0 – 900 rpm
  • Rated torque: 3.5 NM
  • Shaft dimension: 5mm
  • 4 wires / 2 phase
  • Step angle: 1.8 ± 5%
  • Dimensions: 42mm x 42mm x 40mm



Contents:

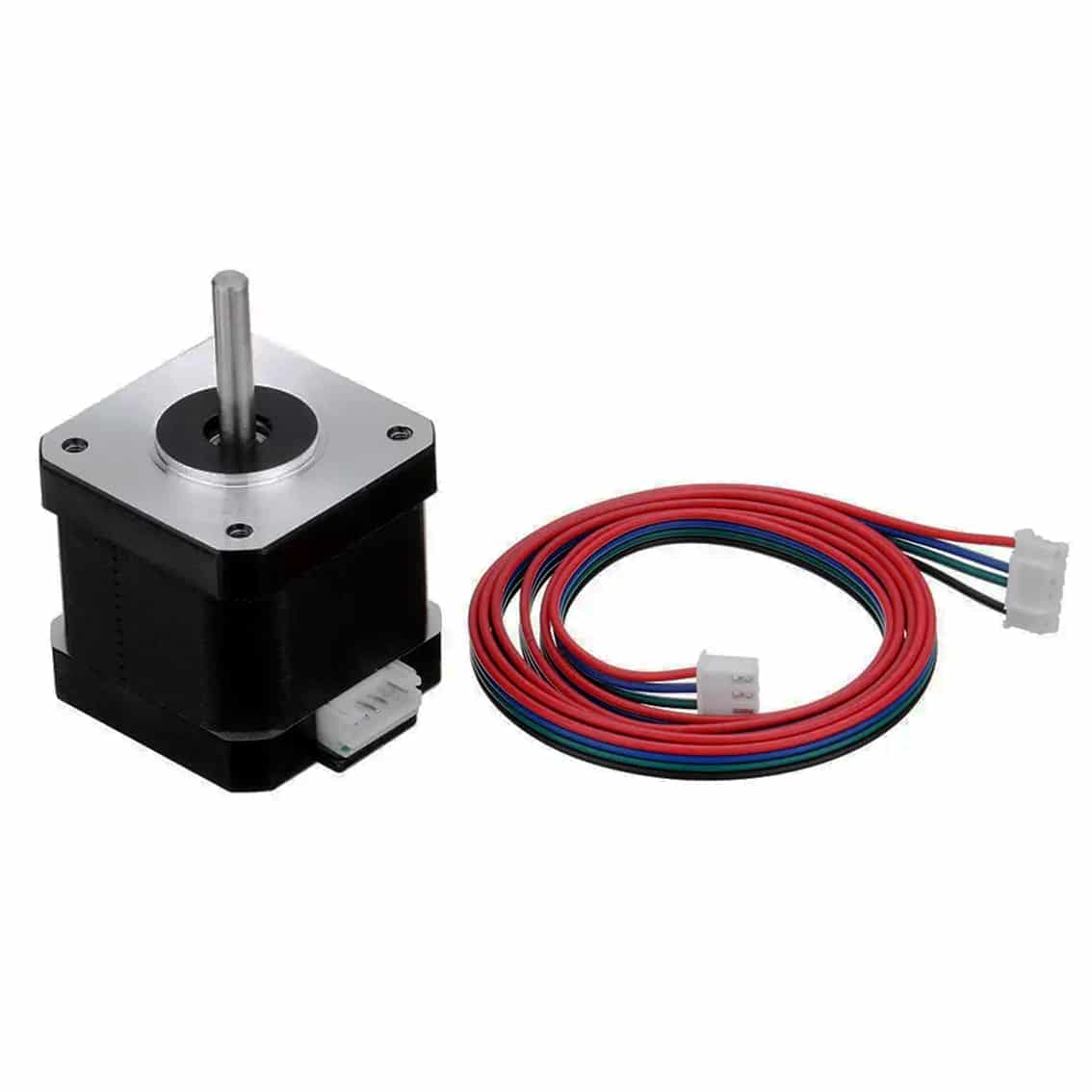

  • 1 x Nema 17 40mm Bi-Polar Stepper Motor
  • 1 x Jumper Cable
Weight 0.023 kg
Dimensions 160 × 60 × 70 mm
