Description:
The nRF24L01 is a highly integrated, ultra-low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. With peak RX/TX currents lower than 14mA, a sub μA power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01 provides a true ULP solution enabling months to years of battery life time when running on coin cells or AA/AAA batteries. The Enhanced ShockBurst™ hardware protocol accelerator additionally offloads time critical protocol functions from the application microcontroller enabling the implementation of advanced and robust wireless connectivity with low-cost 3rd-party microcontrollers.

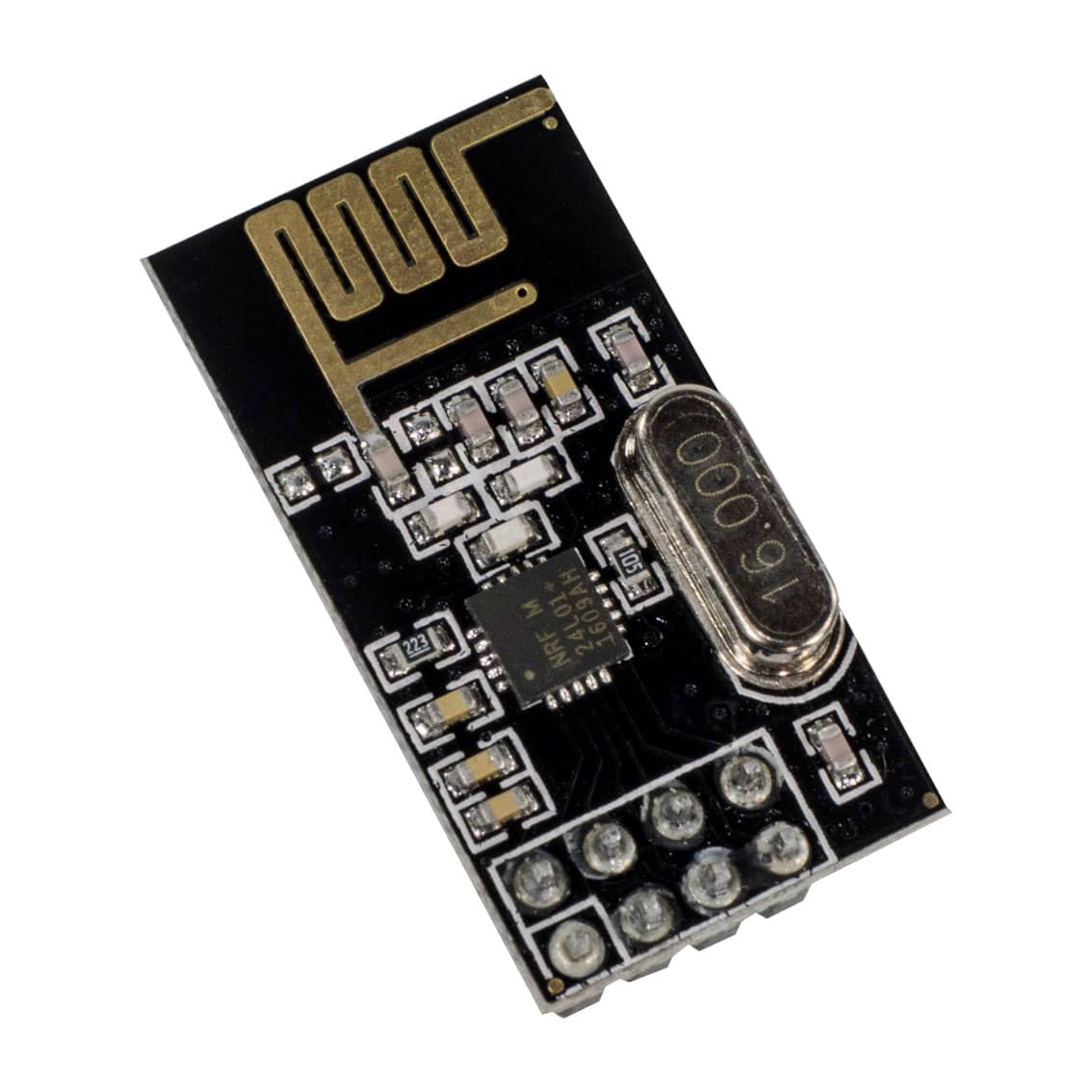

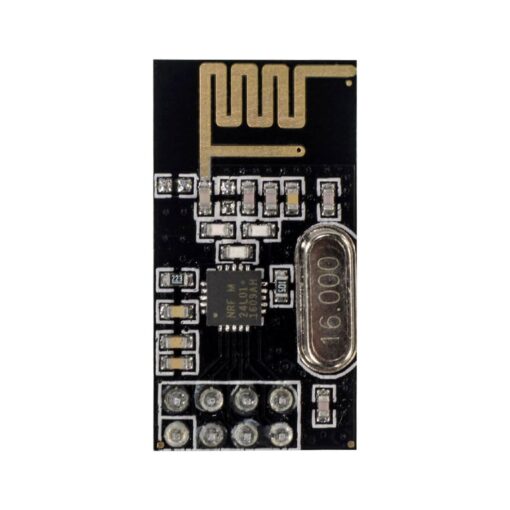

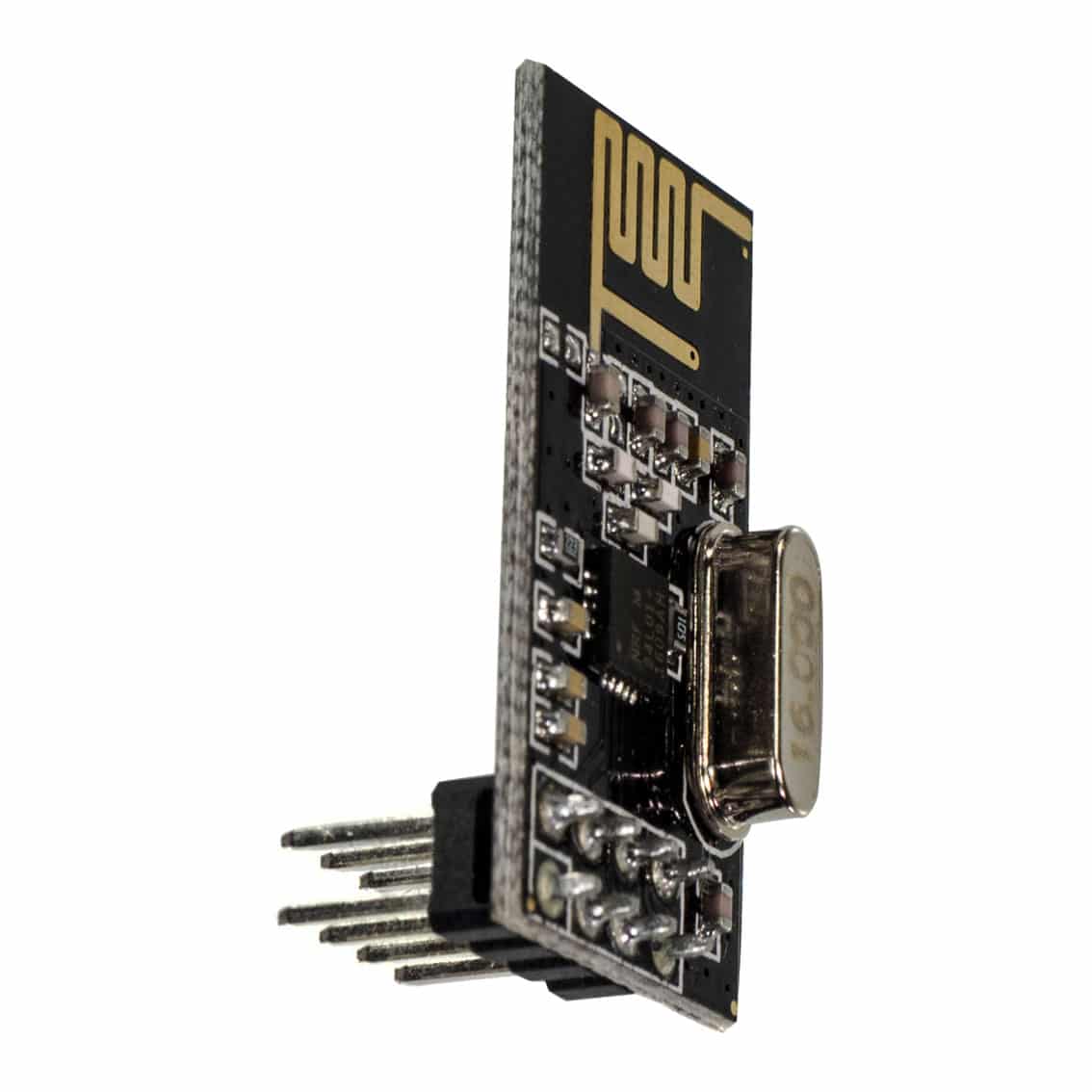

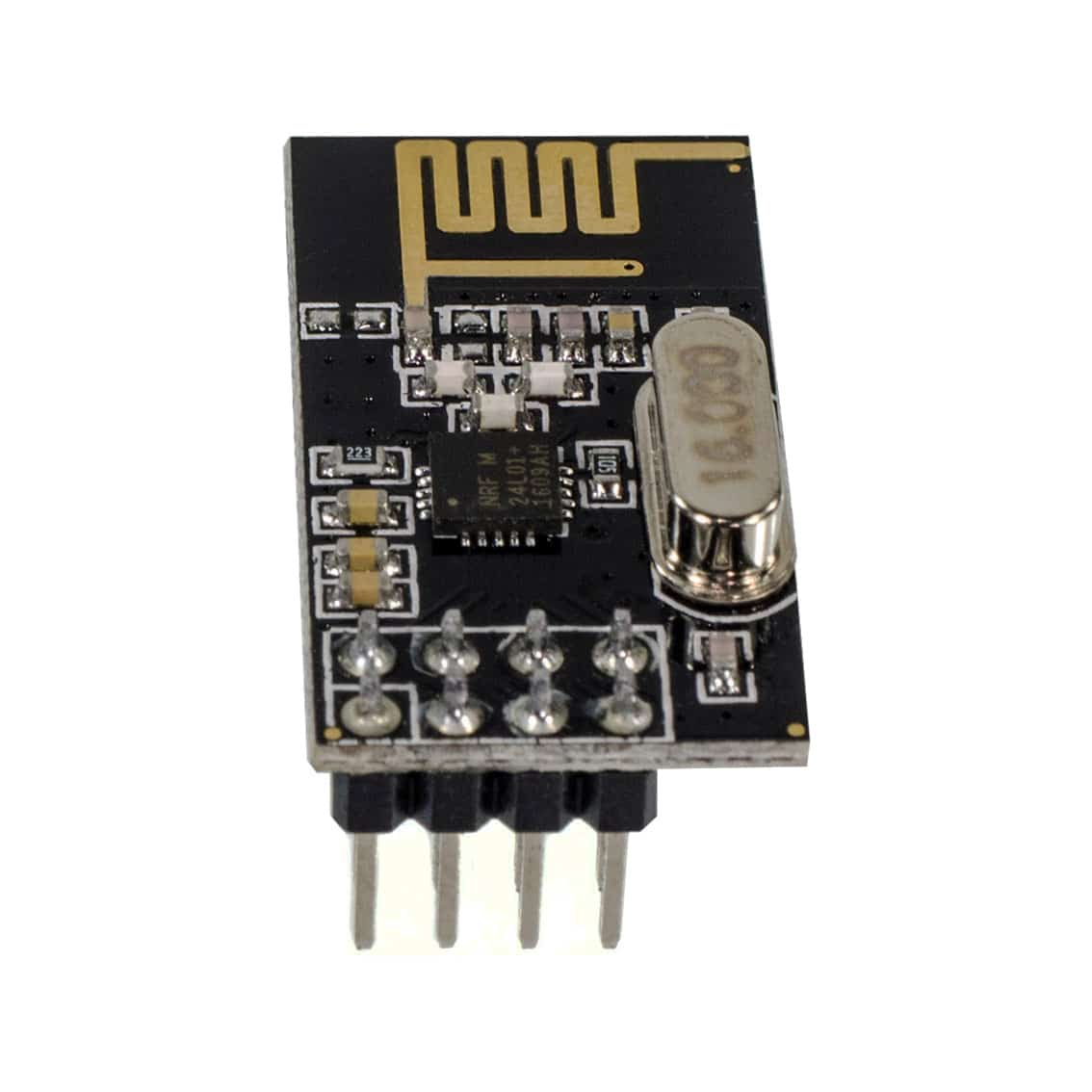

The nRF24L01 module integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurstâ„¢ hardware protocol accelerator supporting a high-speed SPI interface for the application controller allowing easy interface to microcontrollers and is ideal for low cost communication between Arduino compatible devices.
Specification:
- Worldwide 2.4GHz ISM band operation
- Up to 2Mbps on air data rate
- Ultra low power operation
- 11.3mA TX at 0dBm output power
- 12.3mA RX at 2Mbps air data rate
- 900nA in power down
- 22μA in standby-I
- On chip voltage regulator
- 1.9 to 3.6V supply range
- Enhanced ShockBurstâ„¢
- Automatic packet handling
- Auto packet transaction handling
- 6 data pipe MultiCeiverâ„¢
- 5V tolerant inputs
Contents:
- 1x NRF24L01 2.4Ghz Wireless Radio Transceiver Module
