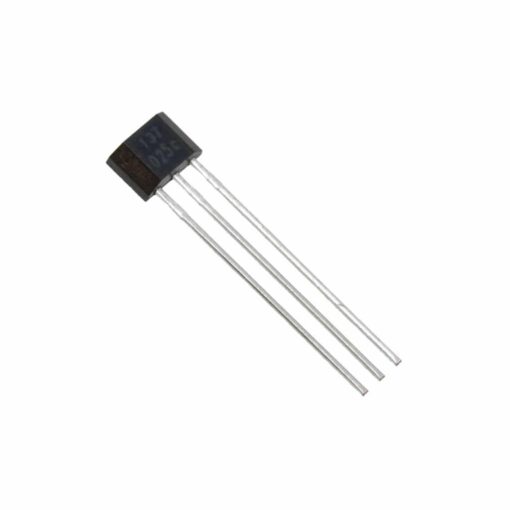

OH137 Single Pole Hall Effect Sensor – Pack of 5

The OH137 Single Pole Hall Effect Sensor is a unipolar hall effect sensor switch. The switch will turn on with the presence of a positive magnetic field (South magnetic pole) and will turn off when the magnetic field is removed.

$10.95

Availability: 26 in stock

Buy now, pay later available.

SKU PHI1002834 Categories , Tag
PHI1002834

Description:

The OH137 Single Pole Hall Effect Sensor is a unipolar hall effect sensor switch. The switch will turn on with the presence of a positive magnetic field (South magnetic pole) and will turn off when the magnetic field is removed.

The OH137 Single Pole Hall Effect Sensor includes an on-chip hall voltage generator for sensing magnetic fields, an amplifier for hall voltage amplification, a Schmitt trigger to provide switching hysteresis for noise rejection and an open-collector output.



Specifications:

  • Operating Voltage: 4.5V to 24V DC
  • Maximum Output Current: 25 mA
  • Operating Temperature: -40 – 85℃
  • Size: 4.1mm x 19.4mm x 1.6mm



Contents:

  • 5 x OH137 Single Pole Hall Effect Sensor
