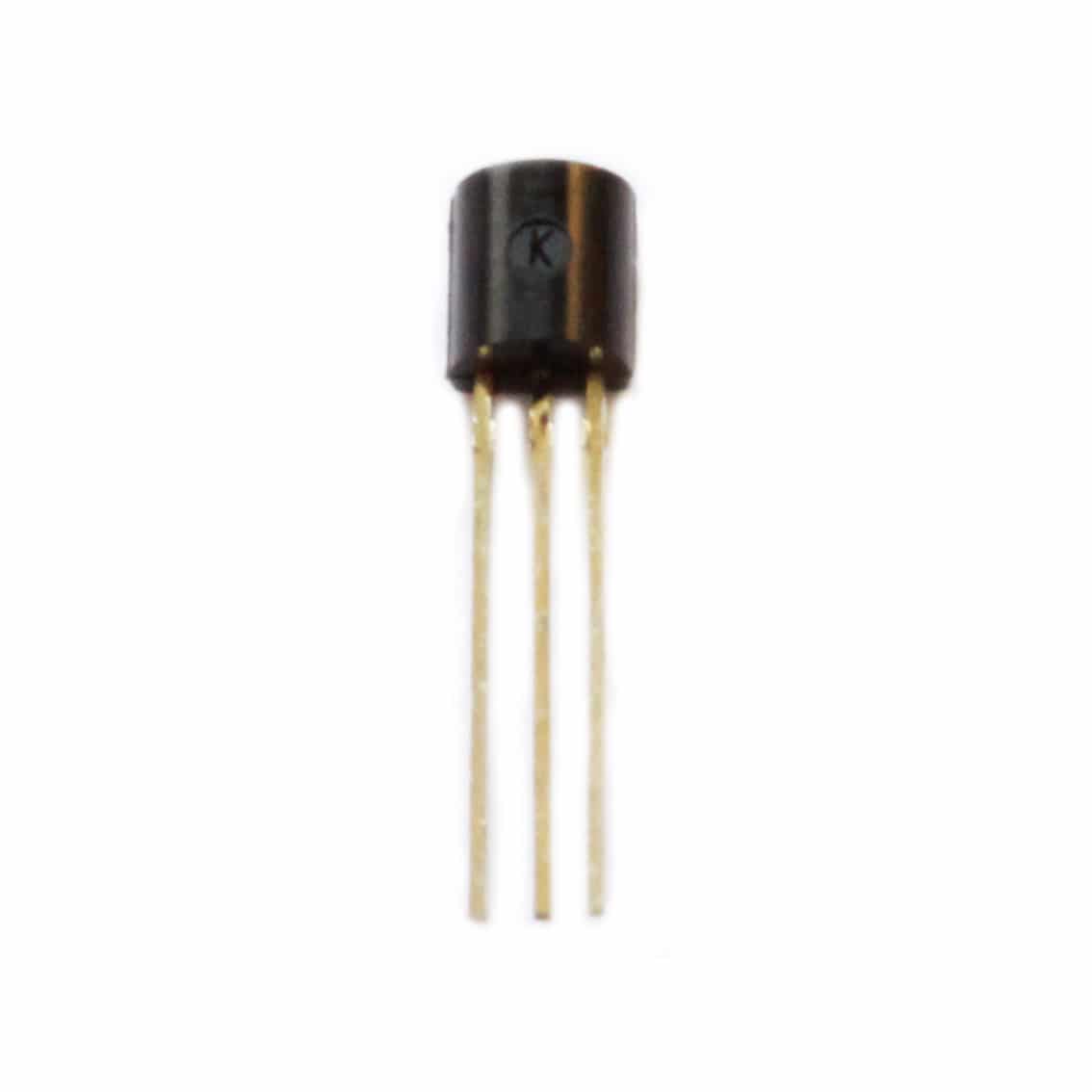

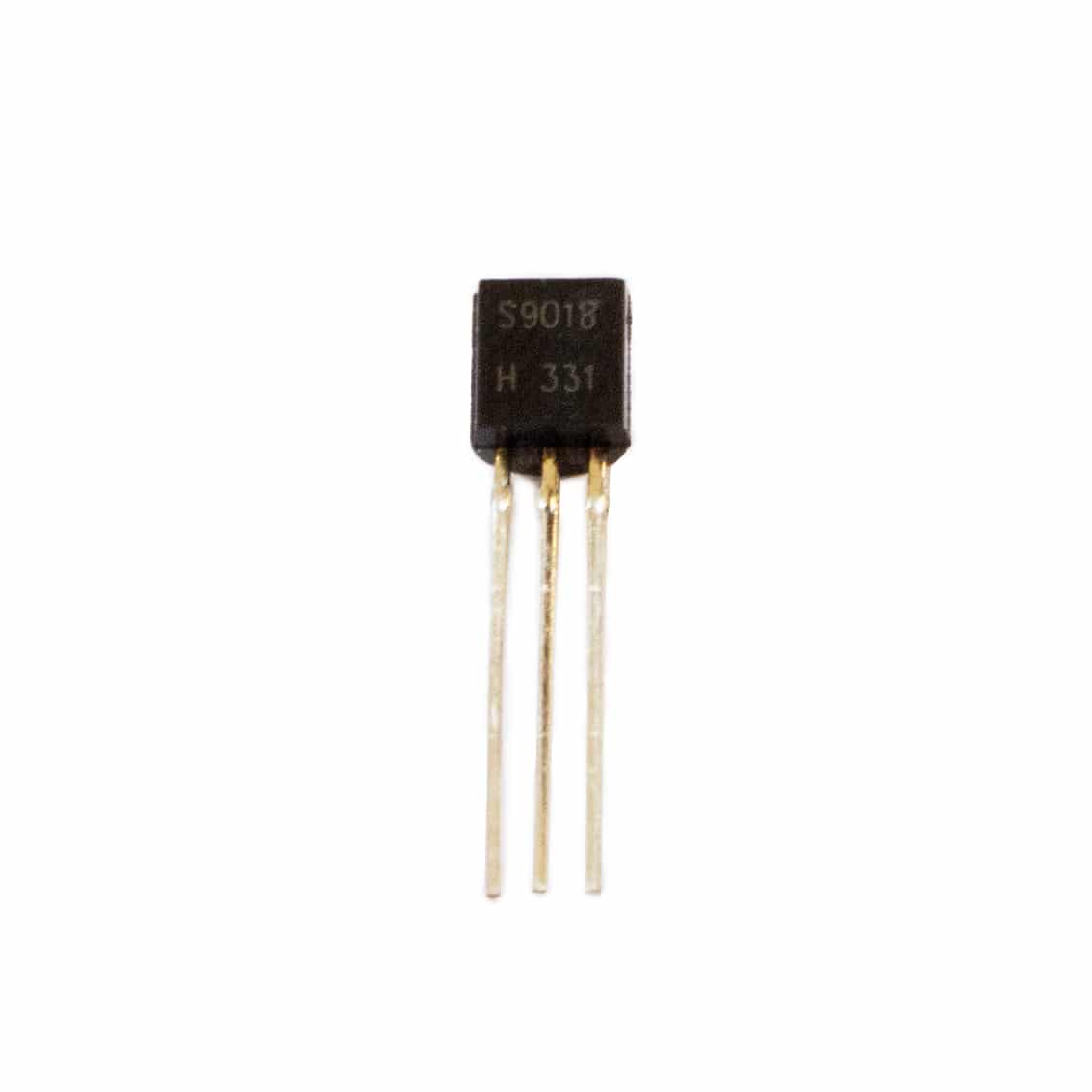

The S9018 is a bipolar 15V 50mA NPN transistor in a TO-92 case.
When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.
- Collector Emitter Voltage: 15 V
- Collector Base Voltage: 30 V
- Emitter Base Voltage: 5 V
- Collector Current: 50 mA
- Collector Dissipation: 200 mW
- Transition Frequency: 600 MHz
- Mounting Style: Through Hole
- Package / Case: TO-92
- Transistor Polarity: NPN
- Configuration: Single
- Operating Temperature: -65 ⁰C – 150 ⁰C
- Dimensions: 4.6mm x 4.6mm x 3.9mm x 14.5mm
- 10 x S9018 15V 50mA NPN Transistor
