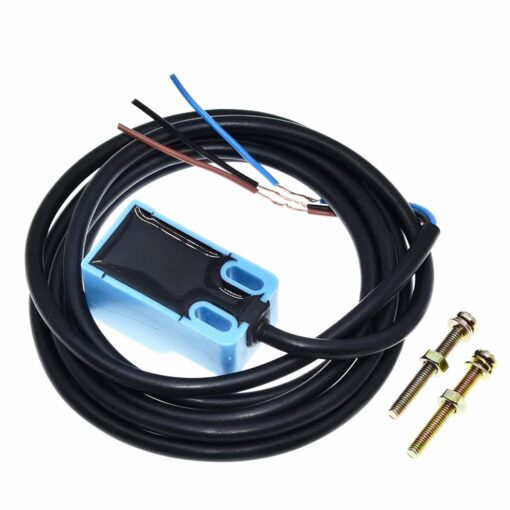

The SN04-N2 is an NPN inductive proximity switch with 4mm distance detection that is normally closed.
It can be used for contactless switching applications, with the switch opening when an object is detected.
- Voltage Input: 5 – 30 V DC
- Digital Output: 0 – 5 V
- Type: NPN
- Current Output: 200mA
- Current Consumption: 5 mA
- Cable Length: 1 meter (approx)
- LED visual indication
- Dimensions: 35mm x 18mm x 18mm (module)
- 1 x SN04-N2 NPN Inductive Proximity Switch Sensor – Normally Closed
