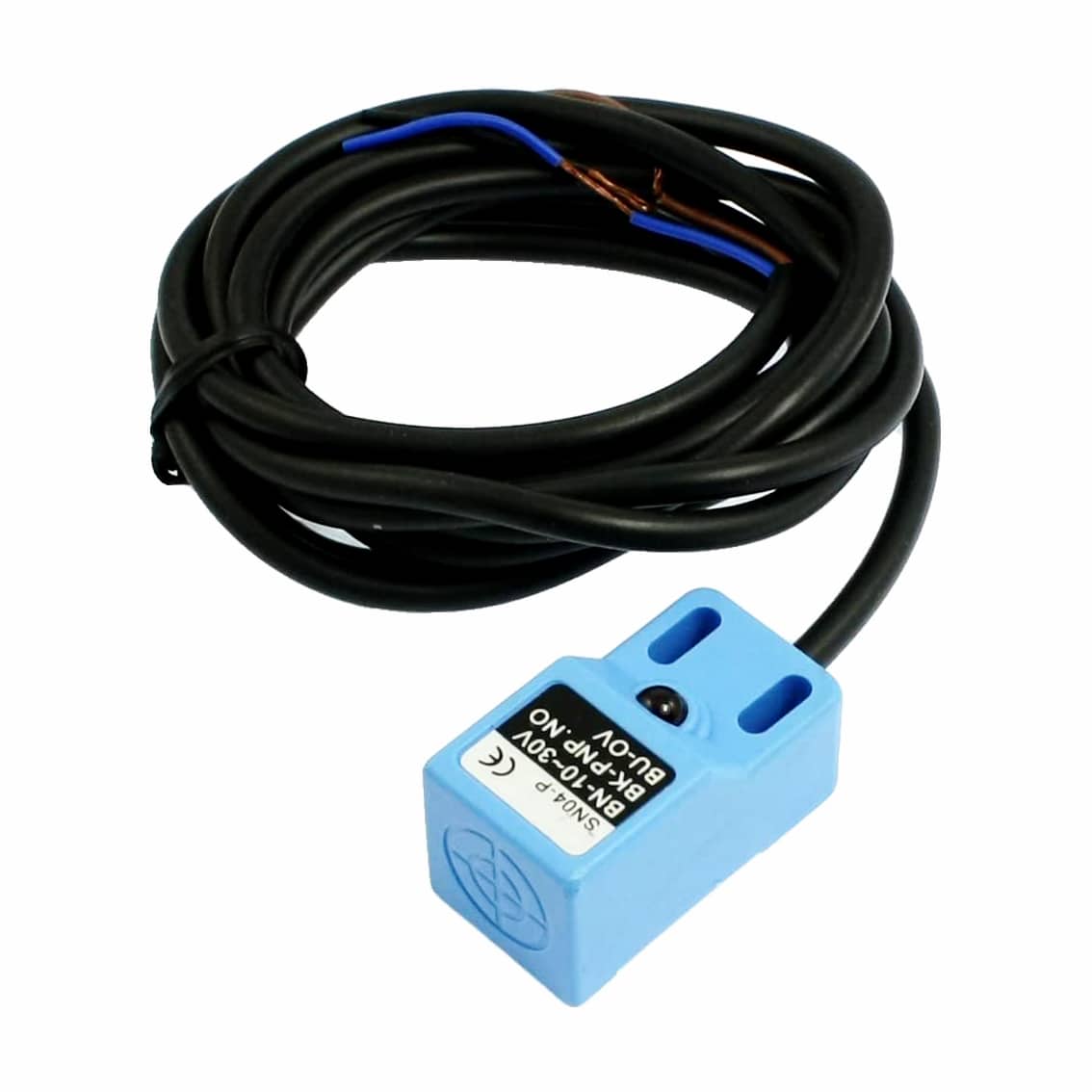

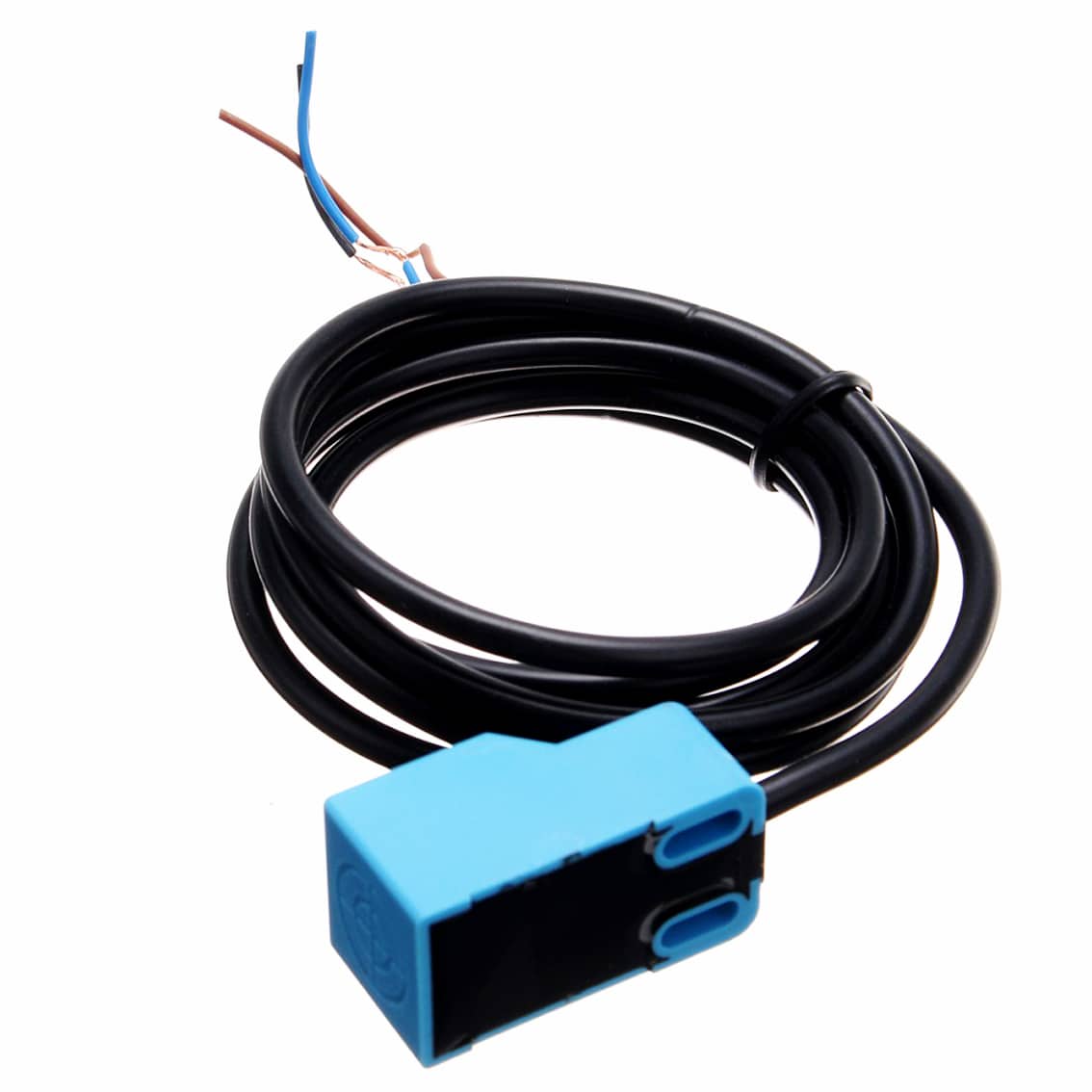

SN04-P PNP Inductive Proximity Switch Sensor
The SN04-P PNP Inductive Proximity Switch Sensor can detect metal objects within 5mm.
The sensor acts as a switch by Signal output pin to 5V when there is a metal object sensed. The sensor has a 1-meter cable attached.
This is a PNP type.
- Voltage Input: 10 – 30V DC
- Digital Output: 0V or 5V
- Type: PNP
- Detection Distance: 5mm (max)
- Current Consumption: 5 mA
- Response Frequency: 500Hz
- Cable Length: 1 meter
- LED visual indication
- Dimensions: 35mm x 18mm x 18mm (module)
- 1 x SN04-P PNP Inductive Proximity Switch Sensor with 1-meter cable
