Solder Heat Shink Wire Connectors with Case – Pack of 250

  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 05
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 02
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 03
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 04
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 05
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 02
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 03
  • PHI1062852 – Solder Heat Shink Wire Connectors with Case – Pack of 250 04

Description

The 250 Piece Solder Heat Shrink Wire Connector Kit provides a versatile, complete and innovative wiring solution. read more
SKU:
PHI1062852
Category:
Tags:
,
Brand:

Type:

Price

$59.95

Quantity

- +

Total

$59.95

0 reviews

29 in stock

- +

Description

Description:

The 250 Piece Solder Heat Shrink Wire Connector Kit provides a versatile, complete and innovative wiring solution.

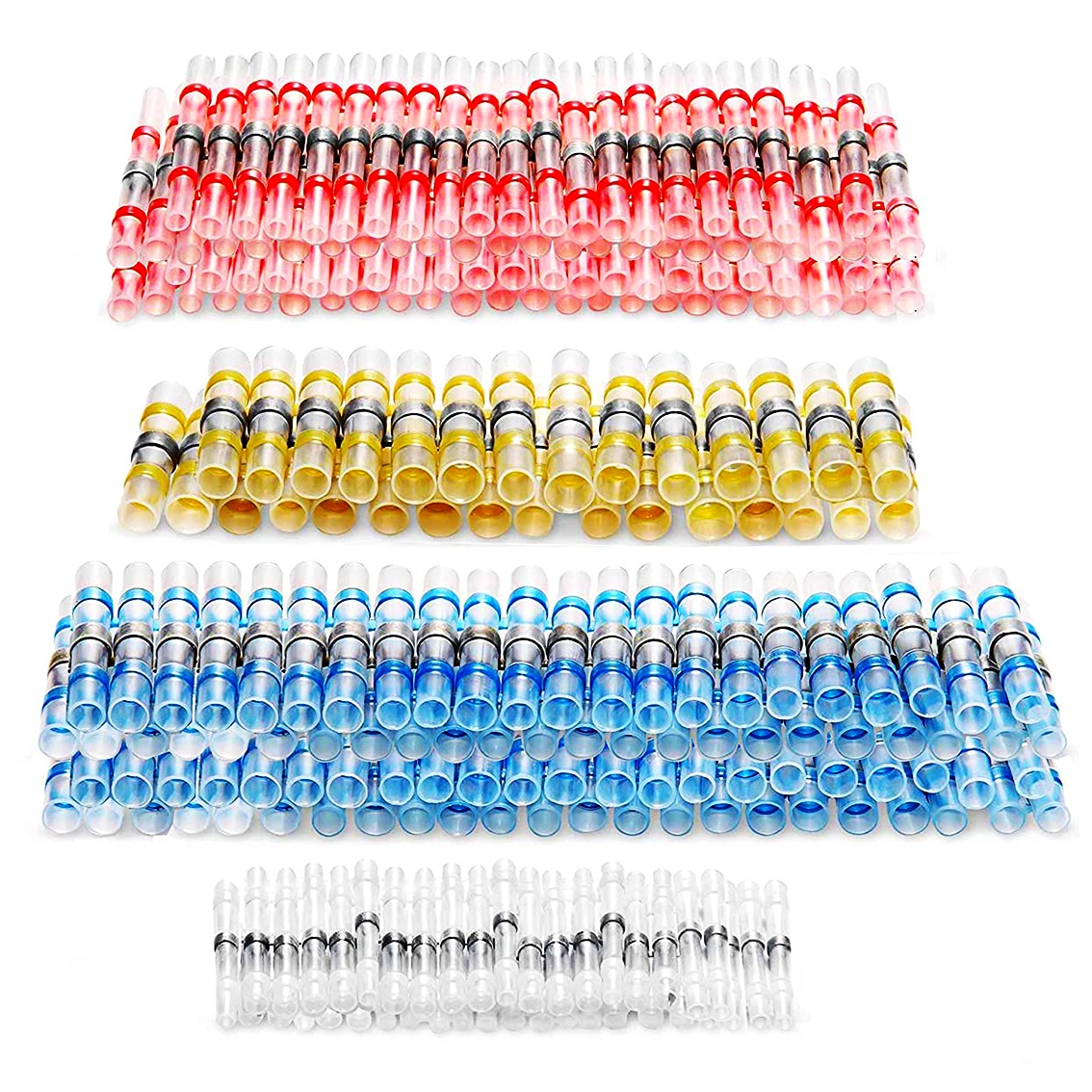

The kit comes with 4 different sized terminals which are colour coded to help identify the one you require.

The terminals consist of an outer heat shrink casing to protect the joint from the outside elements, and the inner consisting of a band of solder that once activated will join the cable junction providing a stronger electrical connection.



Terminal Sizes:

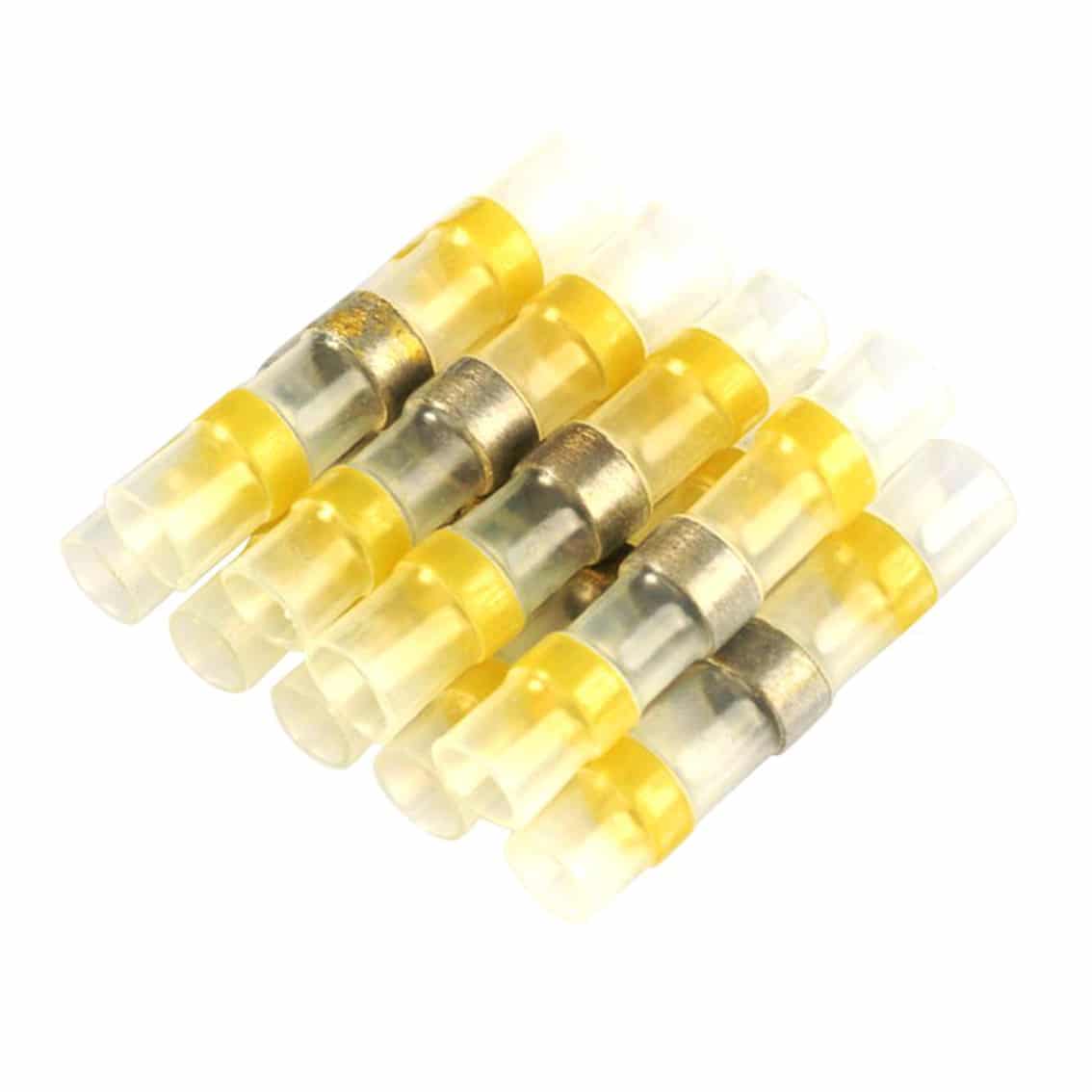

  • Yellow: Diameter – 6.0 mm, Cable Cross Section – 4.0 mm² – 6.00 mm² (A.W.G: 12 – 10)
  • White: Diameter – 1.7 mm, Cable Cross Section – 0.25 mm² – 0.34 mm² (A.W.G: 26 – 24)

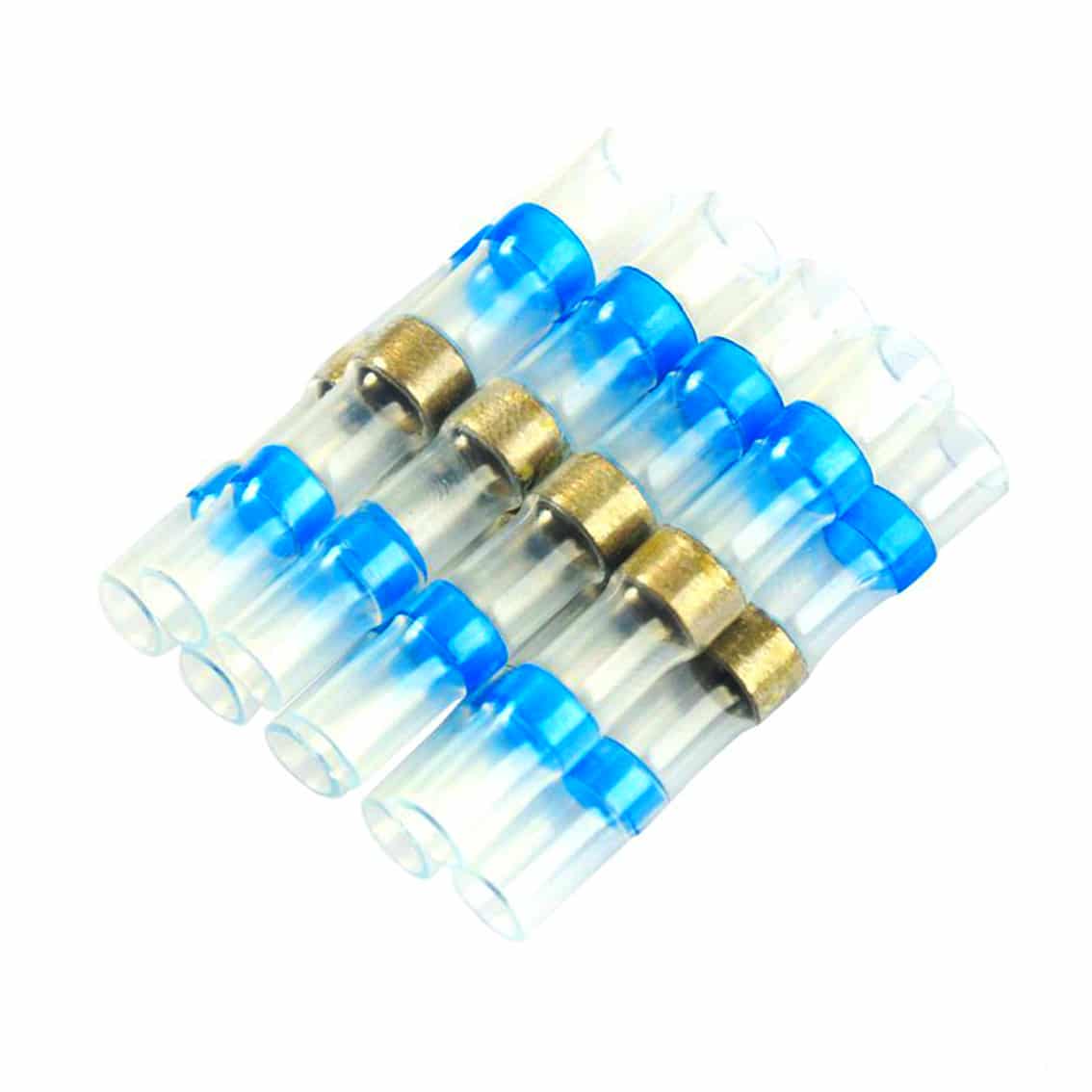

  • Blue: Diameter – 4.5 mm, Cable Cross Section – 1.5 mm² – 2.5 mm² (A.W.G: 16 – 14)
  • Red: Diameter – 2.7 mm, Cable Cross Section – 0.5 mm² – 1.0 mm² (A.W.G: 22 – 18)



Specifications:

  • Heat Shrink Ratio: 2:1
  • Solder Melting Temperature: 280⁰C +
  • Heat Shrink Temperature: 176⁰C +



Contents:

  • 30 x Yellow Terminals
  • 40 x White Terminals
  • 90 x Blue Terminals
  • 90 x Red Terminals

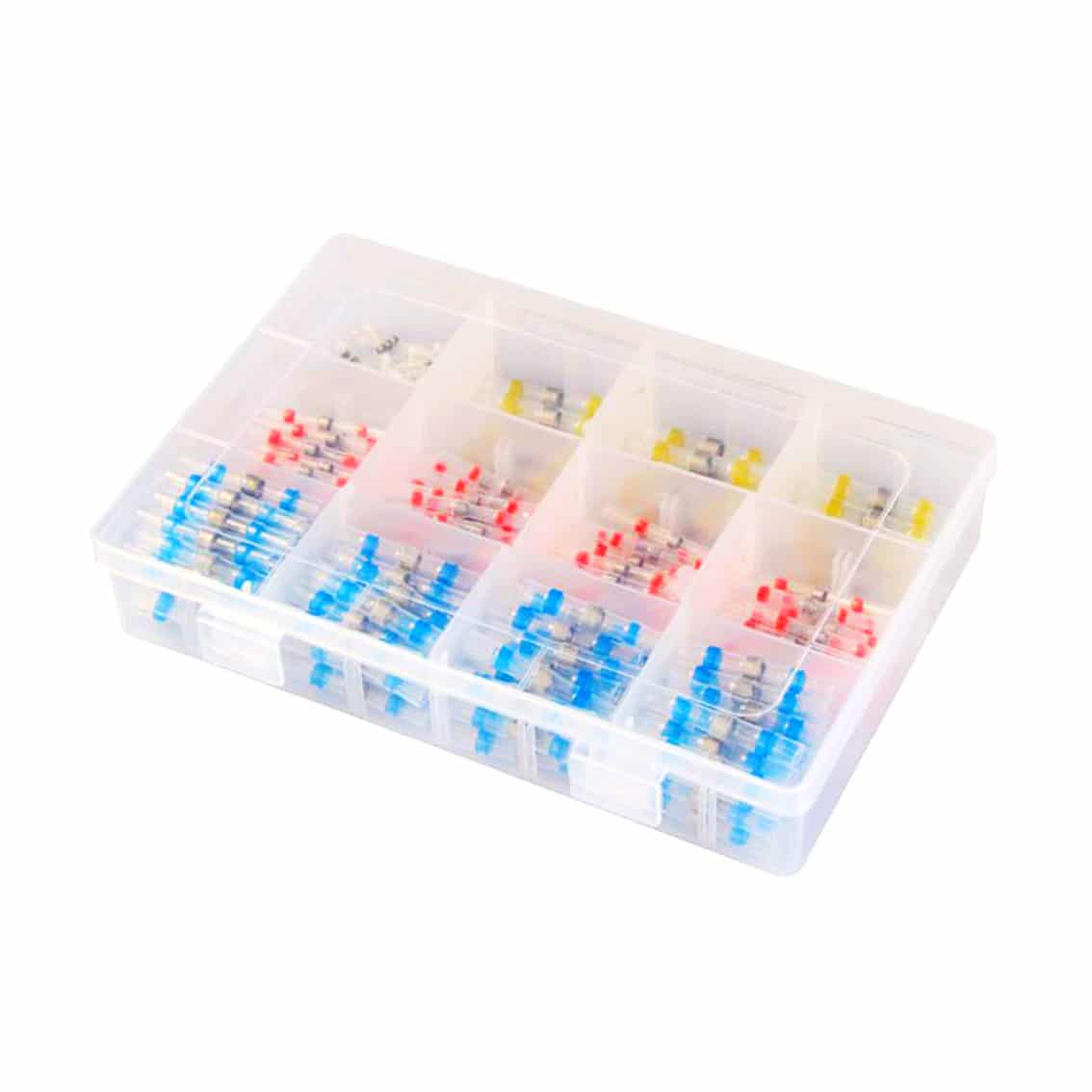

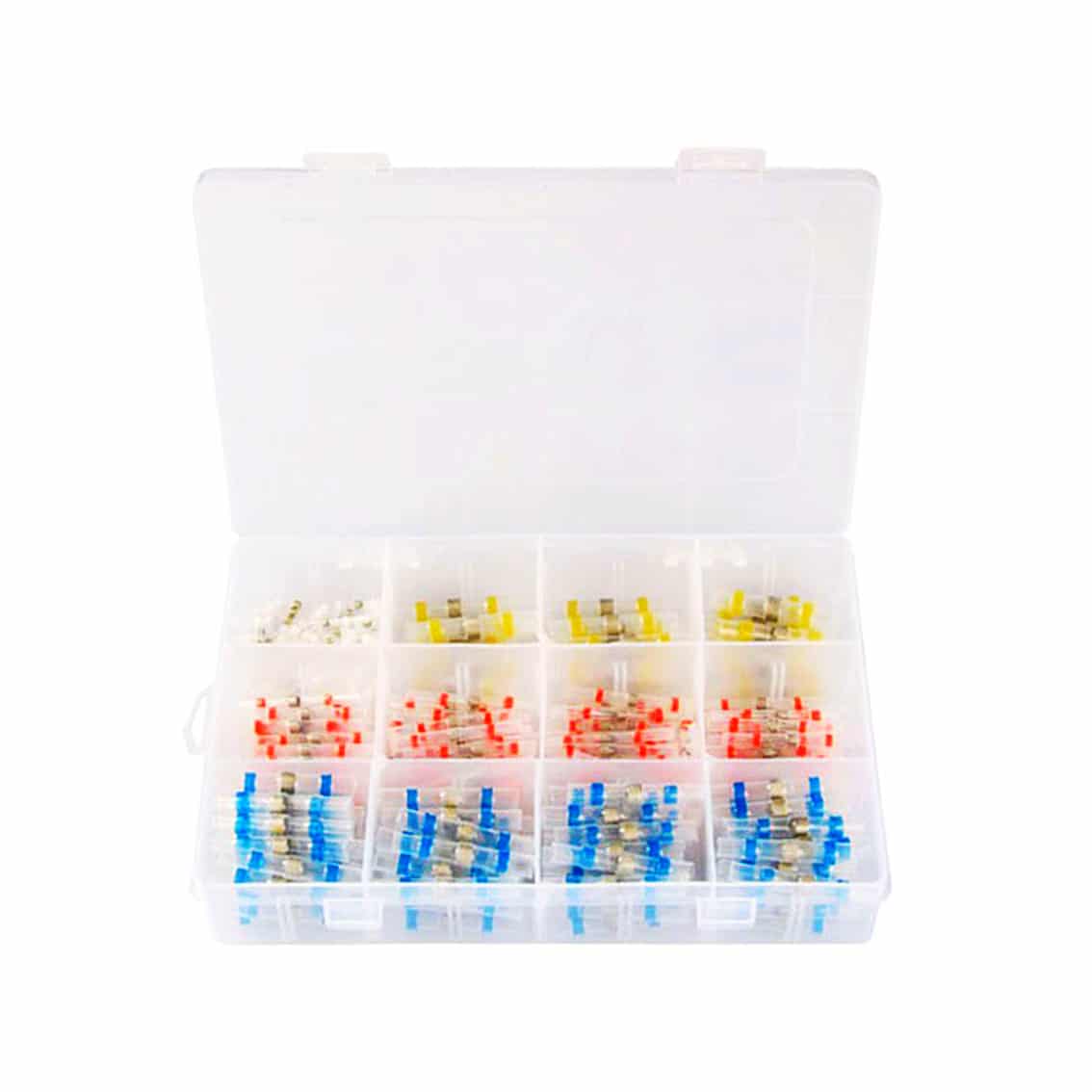

  • 1 x Plastic Case
