Description:
The SR1100 Schottky Barrier Rectifier Diode – Pack of 10 offers efficient and fast-switching performance, making it ideal for power supply circuits, freewheeling protection, reverse polarity protection, and voltage clamping. Featuring a low forward voltage drop and high surge capability, the SR1100 improves energy efficiency and reduces power loss in DC-DC converters, battery chargers, solar regulators, and other high-frequency applications.
This diode is capable of handling up to 1A of average forward current and reverse voltage up to 100V, while maintaining low reverse leakage characteristics. Thanks to its Schottky construction, it provides high switching speed and minimal recovery time. Packaged in a DO-41 through-hole format, the SR1100 is easy to mount on PCBs and breadboards. This 10-pack is suitable for hobbyists, repair technicians, and engineers designing or maintaining efficient low-voltage DC circuits.
Specifications:
- Model: SR1100
- Type: Schottky Barrier Rectifier Diode
- Reverse Voltage (VR): 100V
- Average Forward Current (IF(avg)): 1A
- Peak Surge Current (IFSM): 30A
- Forward Voltage Drop (VF): ~0.85V @ 1A
- Reverse Leakage Current (IR): < 200µA @ 100V
- Package Type: DO-41 (Through-Hole)
- Mounting: Axial leaded
- Polarity: Cathode marked with a band
- Operating Temperature Range: -65°C to +125°C
- Recovery Time: Instantaneous (Schottky-type)
- Pack Size: 10 diodes
Features:
- Low forward voltage drop reduces power loss
- Fast switching for high-efficiency circuits
- Capable of handling high surge currents
- Axial DO-41 package fits breadboards and standard PCBs
- Ideal for power rectification, clamping, and reverse polarity protection
Contents:

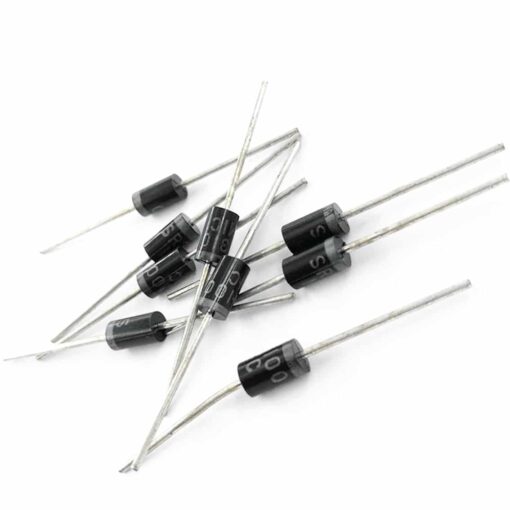

- 10 x SR1100 Schottky Barrier Rectifier Diodes (DO-41)
