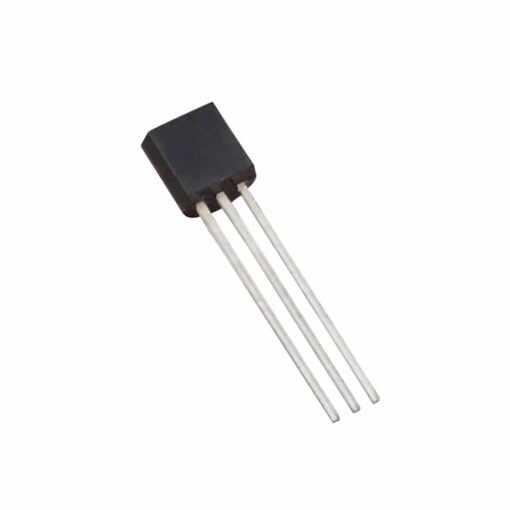

SS8050 25V 1.5A NPN Transistor - Pack of 10

The SS8050 is a bipolar 25V 1.5A NPN transistor in a TO-92 case.

$9.95

Availability: 24 in stock

Buy now, pay later available.

SKU PHI1052820 Category Tags ,

Description:

The SS8050 is a bipolar 25V 1.5A NPN transistor in a TO-92 case.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



Specifications:

  • Collector Emitter Voltage: 25 V
  • Collector Base Voltage: 40 V
  • Emitter Base Voltage: 5 V
  • Collector Current: 1.5 A
  • Collector Dissipation: 1 W
  • Transition Frequency: 190 MHz
  • Mounting Style: Through Hole
  • Package / Case: TO-92
  • Transistor Polarity: NPN
  • Configuration: Single
  • Operating Temperature: -65 ⁰C – 150 ⁰C
  • Dimensions: 4.6mm x 4.6mm x 3.9mm x 14.5mm



Contents:

  • 10 x SS8050 25V 1.5A NPN Transistor
