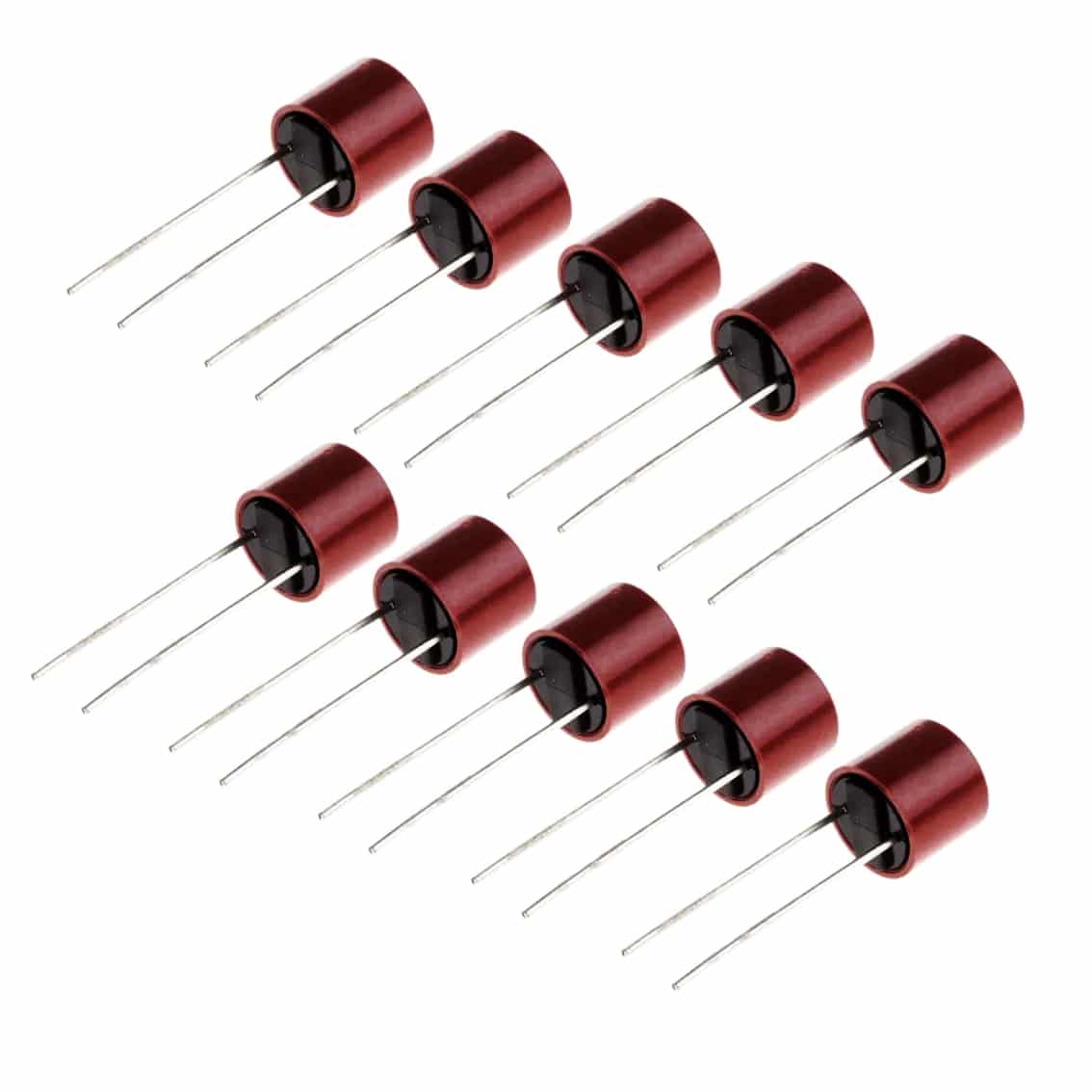

The T10A 382 TRS fuses come in a pack of 10 and have a voltage rating of 250V and 10A.
The 382 series of radial TR5 fuses have enhanced breaking capacity and are a slow blow / time-lag type fuse and designed in accordance with IEC 60127-3.
- Rated Voltage: 250V
- Rated Current: 10A
- Type: Time Delay / Slow Blow
- Case: Shock safe casing
- Base/Cap: Brown Thermoplastic Polyamide
- Round Pins: Copper, Tin-plated
- Operating Temperature: -40 ~ +85°C
- Dimensions: 8.5mm x 8mm
- Lead Length: 18.8mm
- 10 x T10A 250V Radial 382 TR5 Fuse
