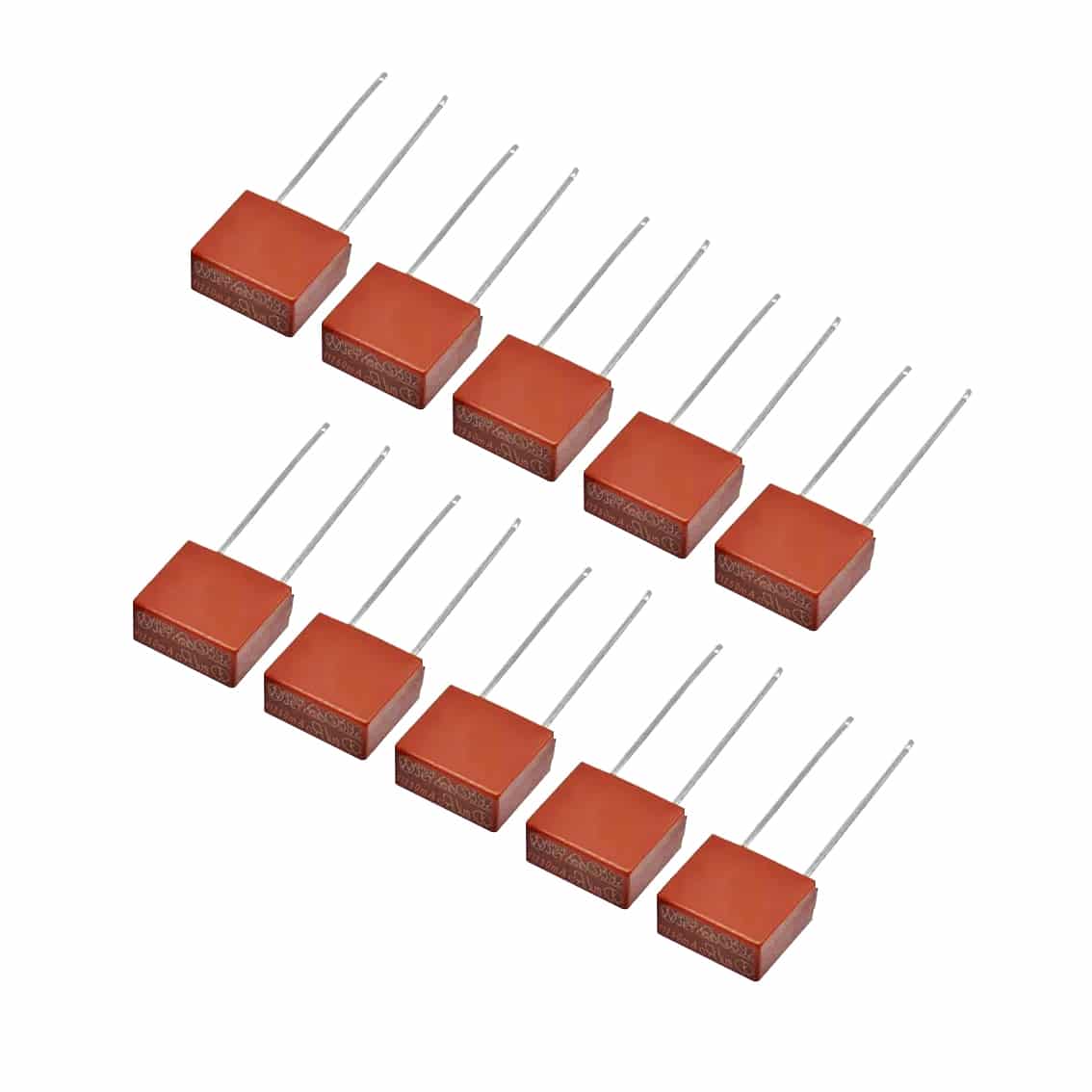

T1250mA 250V Square 392 TR5 Fuse – Pack of 10

33 people have recently viewed this product!

T1250mA 250V Square 392 TR5 Fuse – Pack of 10

The T1250mA 392 TRS fuses come in a pack of 10 and have a voltage rating of 250V and 1.25A.

$13.95

Order Within –

Availability: 30 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002354

You May Also Like...

Description:

The T1250mA 392 TRS fuses come in a pack of 10 and have a voltage rating of 250V and 1.25A.

The 392 series of Square TR5 fuses have enhanced breaking capacity and are a slow blow / time-lag type fuse and designed in accordance with IEC 60127-3.



Specifications:

  • Rated Voltage: 250V
  • Rated Current: 1.25A
  • Type: Time Delay / Slow Blow
  • Case: Shock safe casing
  • Material:
    • Base/Cap: Brown Thermoplastic Polyamide
    • Round Pins: Copper, Tin-plated
  • Operating Temperature: -40 ~ +85°C
  • Dimensions: 8.5mm x 8mm x 4mm
  • Lead Length: 18.8mm



Contents:

  • 10 x T1250mA 250V Square 392 TR5 Fuse
Weight 0.006 kg
Dimensions 90 × 10 × 60 mm
Brand

Fuse Type

Fuse Size

Fuse Attributes

Voltage

Current Rating
