The T5A 392 TRS fuses come in a pack of 10 and have a voltage rating of 250V and 5A.
The 392 series of Square TR5 fuses have enhanced breaking capacity and are a slow blow / time-lag type fuse and designed in accordance with IEC 60127-3.
- Rated Voltage: 250V
- Rated Current: 5A
- Type: Time Delay / Slow Blow
- Case: Shock safe casing
- Base/Cap: Brown Thermoplastic Polyamide
- Round Pins: Copper, Tin-plated
- Operating Temperature: -40 ~ +85°C
- Dimensions: 8.5 mm x 8 mm x 4 mm
- Lead Length: 18.8mm

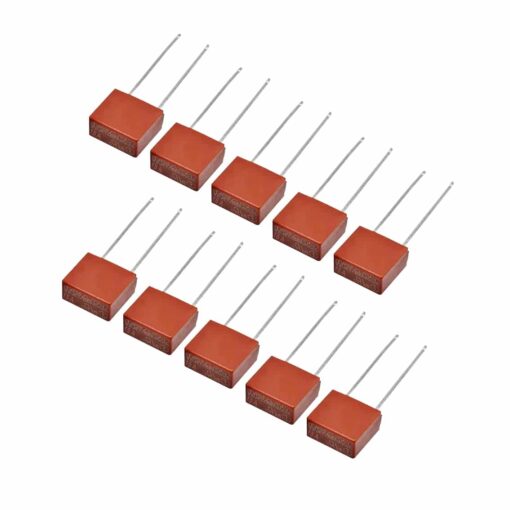

- 10 x T5A 250V Square 392 TR5 Fuse
